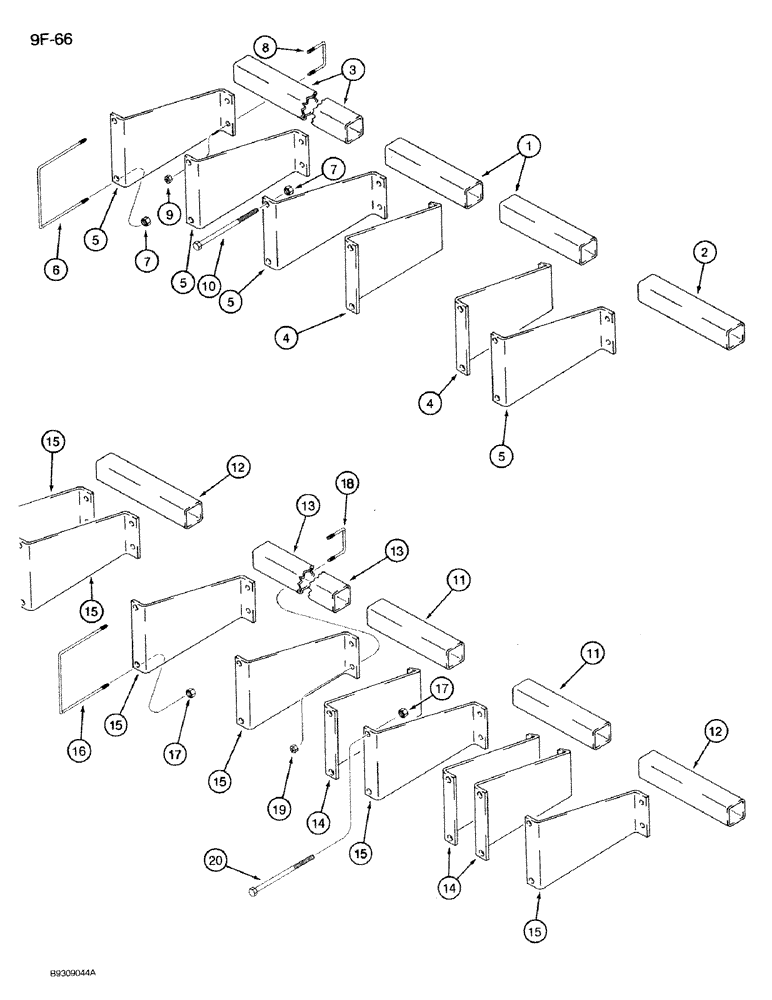

Запчасти Case IH 950 (9F-66) - FERTILIZER APPLICATOR MOUNTING BAR, 12 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

113672A1

TUBE

BAR - applicator mounting, 12 inch long

4шт.

2

113673A1

TUBE,454 mm Length

BAR - applicator mounting, 13-3/8 inch long

2шт.

3

1284407C1

TUBE,2100 mm Length

BAR - applicator mounting, 83 inch long

2шт.

4

113666A1

BAR

BRACKET - fertilizer bar, left-hand

6шт.

5

113667A1

BAR

BRACKET - fertilizer bar, right-hand

6шт.

6

1250813C1

U-BOLT

- 5/8 x 7 x 7 inch

12шт.

7

425-1010

NUT,5/8"-11, G5

24шт.

8

1344524C1

U-BOLT

- 1/2 x 2-1/2 x 2-1/2 inch

16шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

32шт.

10

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

4шт.

11

113672A1

TUBE

BAR - applicator mounting, 12 inch long, 16 row narrow front hold

4шт.

12

113673A1

TUBE,454 mm Length

BAR - applicator mounting, 13, 16 row narrow front hold-3/8 inch long

4шт.

13

113674A1

TUBE,2750 mm Length

BAR - applicator mounting, 108-1/4 inch long, 16 row narrow front hold

2шт.

14

113666A1

BAR

BRACKET - fertilizer bar, left-hand, 16 row narrow front hold

9шт.

15

113667A1

BAR

BRACKET - fertilizer bar, right-hand, 16 row narrow front hold

9шт.

16

1250813C1

U-BOLT

- 5/8 x 7 x 7 inch, 16 row narrow front hold

18шт.

17

425-1010

NUT,5/8"-11, G5

16 row narrow front hold 5/8"-11, G5

36шт.

18

1344524C1

U-BOLT

- 1/2 x 2-1/2 x 2-1/2 inch, 16 row narrow front hold

22шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 16 row narrow front hold 1/2"-13, G5

44шт.

20

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch, 16 row narrow front hold

4шт.
