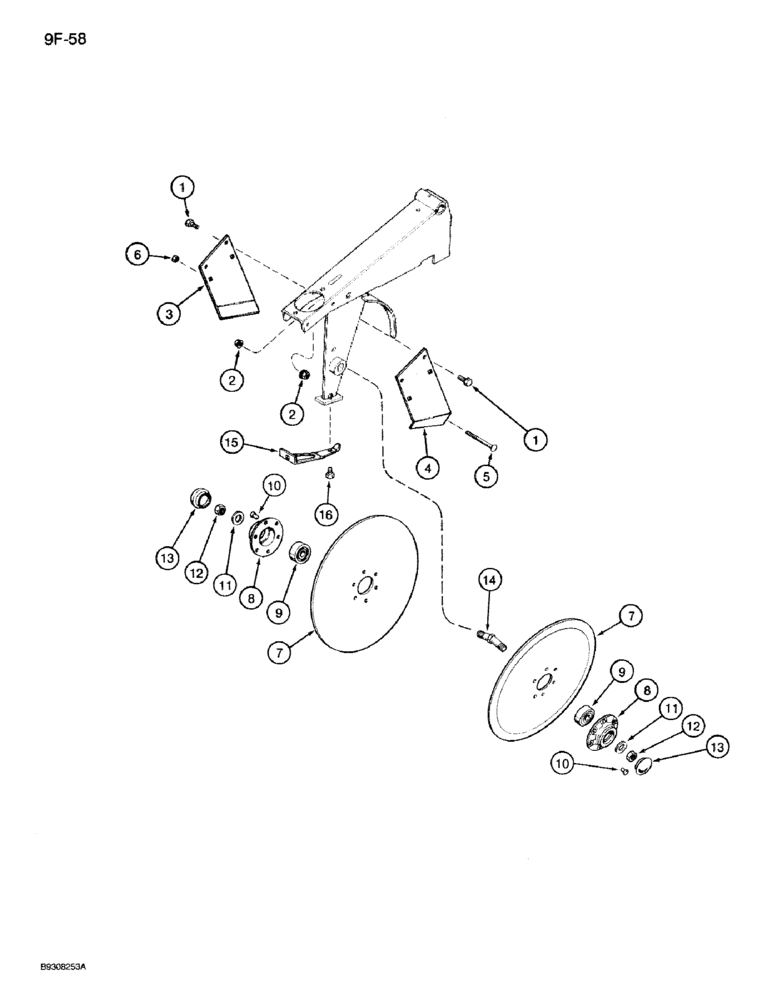

Запчасти Case IH 950 (9F-58) - DOUBLE DISC OPENERS, SCRAPERS AND DISCS, LIQUID AND DRY FERTILIZER (09) - CHASSIS/ATTACHMENTS

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

3

1250734C2

FAN BLADE

SCRAPER - disc, left-hand

1шт.

4

1250735C2

FAN BLADE

SCRAPER - disc, right-hand

1шт.

5

19659R1

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3 1/4", Gr 2

BOLT - carriage, 1/4 NC x 3-1/4 inch, grade 2

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

141464C92

DISC

OPENER ASSY, JD

2шт.

7

492756R1

DISC

- opener (Order 141464C92 assembly) ( replaced NSS )

1шт.

8

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

- bearing

1шт.

9

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

9

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

10

447-49

RIVET,FH, 1/4" x 9/16"

- 1/4 x 9/16 inch

6шт.

11

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- flat

1шт.

12

129-347

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

12

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

13

492709R2

CAP

COVER - bearing

2шт.

14

492750R1

BOLT,5/8" - 11

- special

1шт.

15

140994C1

SUPPORT

- disc scraper

1шт.

16

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.
