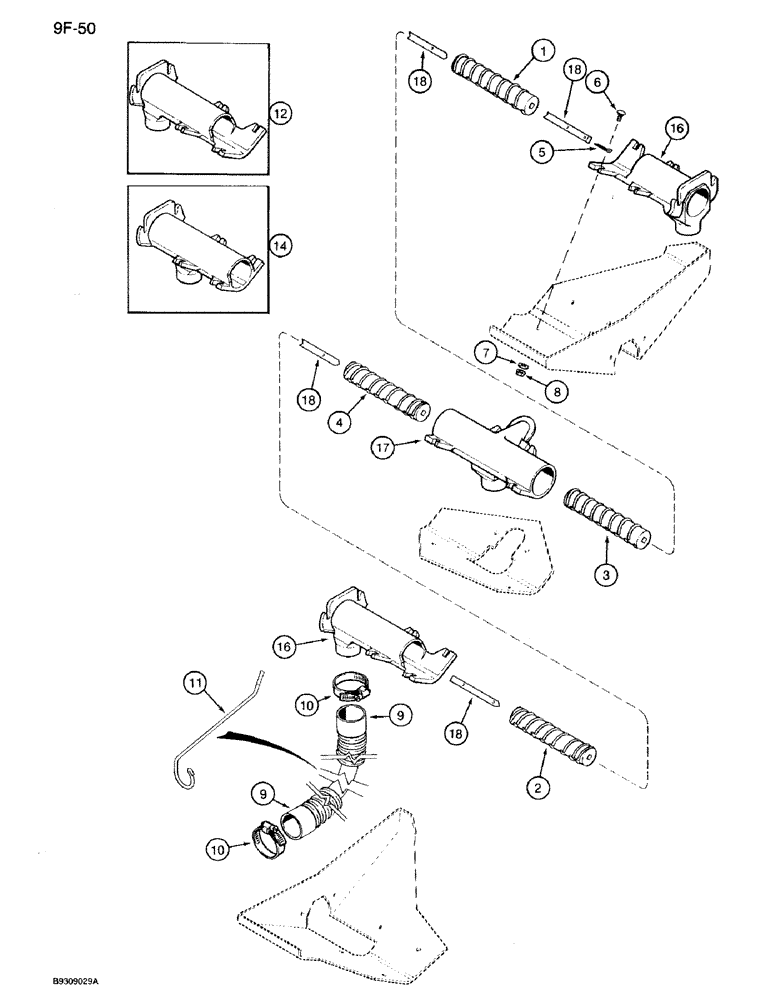

Запчасти Case IH 950 (9F-50) - DRY FERTILIZER HOPPER AUGERS, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

472421R1

AUGER

- low rate, right-hand

1шт.

1

472425R1

AUGER

- high rate, right-hand

1шт.

1

483534R1

AUGER

- extra high rate, right-hand

1шт.

2

472420R1

AUGER

- low rate, left-hand

1шт.

2

472424R1

AUGER

- high rate, left-hand

1шт.

2

483533R1

AUGER

- extra high rate, left-hand

1шт.

3

480152R1

AUGER

- low rate, right-hand, inner

1шт.

3

480107R1

AUGER

- high rate, right-hand, inner

1шт.

3

487032R1

AUGER

- extra high rate, right-hand, inner

1шт.

4

480151R1

AUGER

- low rate, left-hand, inner

1шт.

4

480106R1

AUGER

- high rate, left-hand, inner

1шт.

4

487033R1

AUGER

- extra high rate, left-hand, inner

1шт.

5

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

6

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

6

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

1шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

116089A3

TUBE,32 mm ID, 502 mm Length

HOSE - 502 mm long, dry fertilizer

1шт.

10

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

1шт.

11

132195A1

SUPPORT

BRACKET - fertilizer hose support

1шт.

12

149197C1

HOUSING

- auger, inner end short

1шт.

13

125490A1

SHAFT

- auger, not shown

1шт.

14

137075C1

HOUSING

- auger, feed end

2шт.

15

141055C3

SHAFT

- auger, not shown

1шт.

16

149197C1

HOUSING

- auger, inner end short

2шт.

17

141037C1

HOUSING

- auger, feed center

1шт.

18

141079C1

BAR

SHAFT - auger

1шт.
