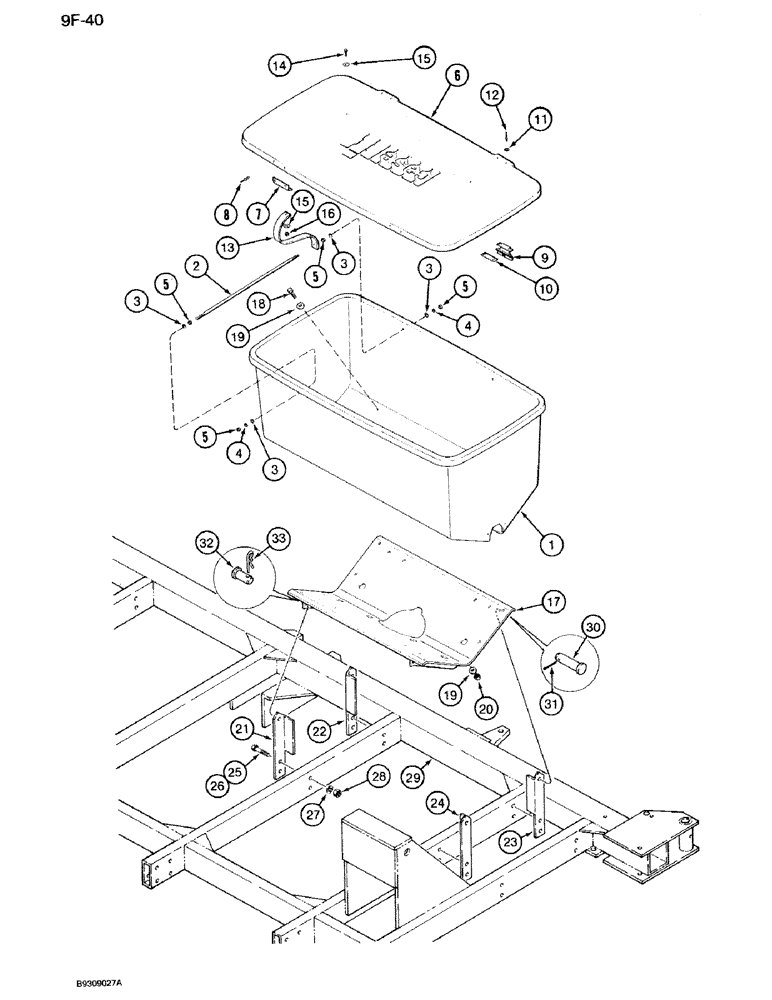

Запчасти Case IH 950 (9F-40) - DRY FERTILIZER HOPPER AND MOUNTING, 8 ROW WIDE, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

137086C1

HOPPER

- 2 outlet, dry fertilizer

1шт.

2

137171C1

STEM

ROD - hopper spacer

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

137514C3

COVER

ASSEMBLY - hopper

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - hopper

1шт.

7

137169C1

SUPPORT

- cover

2шт.

8

151-510

RIVET,Pop, 3/16" x .450"

- 4.8 x 11.5 mm, break mandrel, support

4шт.

9

NSS

NOT SOLD SEPARAT

LATCH - hopper

2шт.

Part of Latch Kit P/N 1264399C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

2шт.

Part of Latch Kit P/N 1264399C91

1шт.

11

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

4шт.

Part of Latch Kit P/N 1264399C91

1шт.

12

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

- 4.8 x 14.6 mm, break mandrel, latch retaining

4шт.

Part of Latch Kit P/N 1264399C91

1шт.

13

137170C1

STRAP

- hopper cover

2шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

15

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

4шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

17

141044C1

SADDLE

SUPPORT - hopper

1шт.

18

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, Grade 2

8шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

21

107132A1

ANGLE

BRACKET - mounting, left-hand angle

3шт.

22

107134A1

ANGLE

BRACKET - mounting, right-hand angle

3шт.

23

135373A1

ANGLE

BRACKET - mounting, left-hand angle, outer

1шт.

24

135375A1

ANGLE

BRACKET - mounting, right-hand angle, outer

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

5шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

3шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

29

103215A2

FRAME ASSY

FRAME - center, fertilizer cart (See page 9F-29)

1шт.

30

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - clevis, 3/8 x 1-1/4 inch

2шт.

31

432-816

COTTER PIN,1/8" x 1"

PIN SPLIT (COTTER), 1/8" x 1"

2шт.

32

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - clevis, 3/8 x 3/4 inch

2шт.

33

544063R1

HAIR PIN COTTER

PIN - quick attach

2шт.

1264399C91

PACKAGE

KIT - latch, Includes: Ref. 9-12, one kit will service eight latches

1шт.
