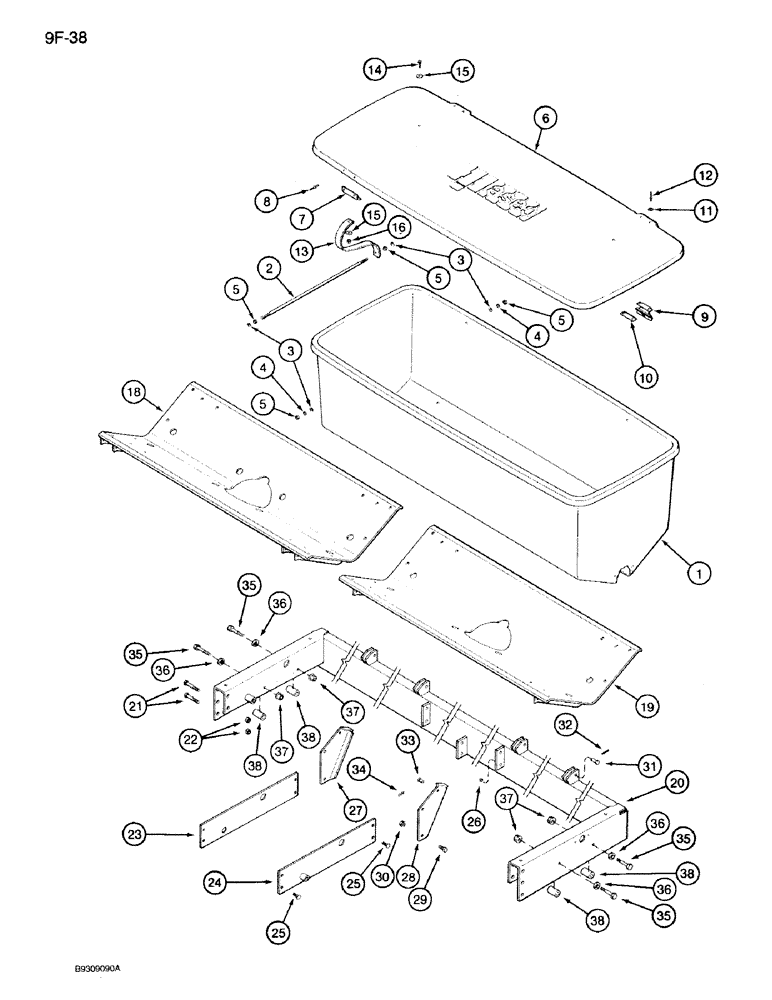

Запчасти Case IH 950 (9F-38) - DRY FERTILIZER HOPPER AND MOUNTING, 6 ROW NARROW AND WIDE, RIGID (09) - CHASSIS/ATTACHMENTS

1

140952C1

HOPPER

- 3 outlet, dry fertilizer

1шт.

2

137171C1

STEM

ROD - hopper spacer

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

140954C3

COVER

ASSEMBLY - hopper

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - hopper

1шт.

7

137169C1

SUPPORT

- cover

2шт.

8

151-510

RIVET,Pop, 3/16" x .450"

- 4.8 x 11.5 mm, break mandrel, support

4шт.

9

NSS

NOT SOLD SEPARAT

LATCH - hopper

2шт.

Part of Latch Kit P/N 1264399C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

2шт.

Part of Latch Kit P/N 1264399C91

1шт.

11

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

4шт.

Part of Latch Kit P/N 1264399C91

1шт.

12

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

- 4.8 x 14.6 mm, break mandrel, latch retaining

4шт.

Part of Latch Kit P/N 1264399C91

1шт.

13

137170C1

STRAP

- hopper cover

2шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

15

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

4шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

17

1279583C2

SADDLE

SUPPORT - hopper, left-hand, 6 row wide, not shown

1шт.

18

1279871C2

SADDLE

SUPPORT - hopper, right-hand, 6 row wide

1шт.

19

1339484C1

SUPPORT

- hopper, 6 row narrow

1шт.

20

141162C2

FUNNEL

FRAME - hopper, 6 row narrow

1шт.

20

1254382C2

FUNNEL

FRAME - hopper, 6 row wide

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

22

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

23

141096C1

BAR

PLATE - support, 6 row narrow

1шт.

24

141108C1

SUPPORT

PLATE - support, 6 row narrow

1шт.

25

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , 6 row narrow Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

26

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC, 6 row narrow

1шт.

27

147417C1

SUPPORT

BRACKET - hopper support, left-hand

1шт.

28

147418C1

SUPPORT

BRACKET - hopper support, right-hand

1шт.

29

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

30

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

31

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - clevis, 3/8 x 1-1/4 inch

1шт.

32

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

33

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN - clevis, 3/8 x 3/4 inch

1шт.

34

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

35

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

38

1976487C1

SPACER

- 27/32 x 63/64 x 2 inch

1шт.

1264399C91

PACKAGE

KIT - latch, Includes: Ref. 9-12, one kit will service eight latches

1шт.
