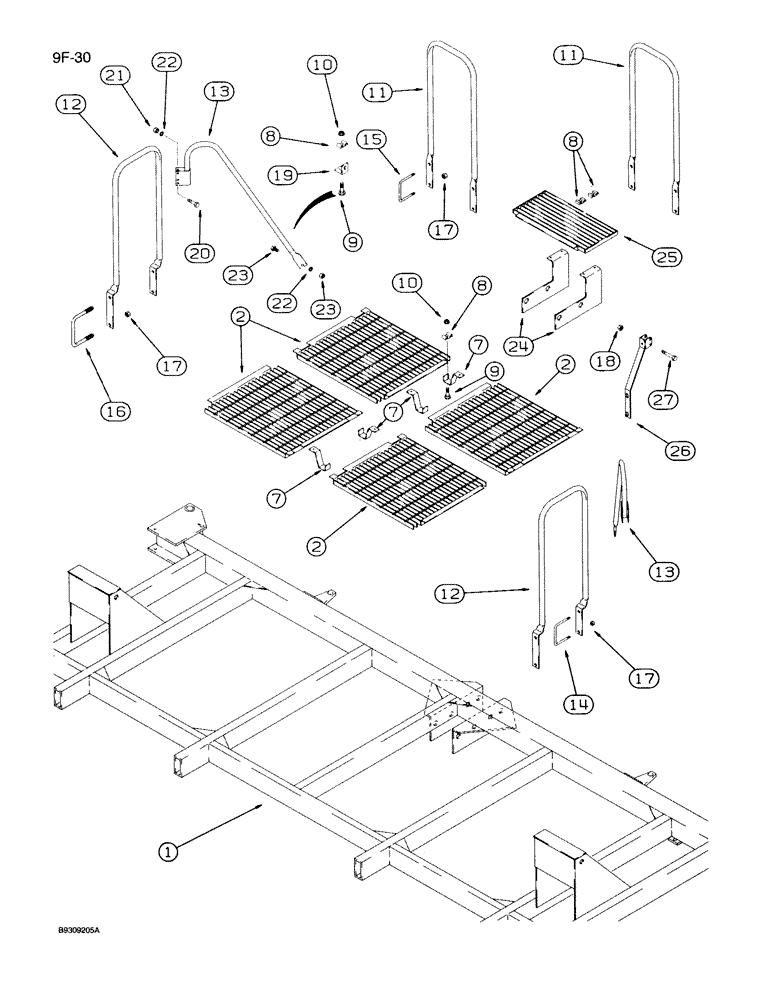

Запчасти Case IH 950 (9F-30) - WALKWAY, 8 ROW WIDE, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - fertilizer cart, see page 9F-29 for correct frame

1шт.

2

132153A1

PLATFORM

GRATE - platform

4шт.

7

112423A1

BRACKET

- platform clamp

8шт.

8

112422A1

FASTENER

BRACKET - grating clamping

14шт.

9

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

14шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

14шт.

11

113147A1

RAIL ASSY.

HANDRAIL - front

2шт.

12

113148A1

RAIL ASSY.

HANDRAIL - side

2шт.

13

113416A1

RAIL ASSY.

HANDRAIL - side support

2шт.

14

811627C2

U-BOLT

- 5/8 x 2 x 5 inch NC

2шт.

15

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 x 5 x 5 inch NC

4шт.

16

1250813C1

U-BOLT

- 5/8 x 7 x 7 inch NC

2шт.

17

425-1010

NUT,5/8"-11, G5

16шт.

18

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

19

133949A1

BRACKET

- side support handrail

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

21

425-106

NUT,3/8"-16, Cl 5

6шт.

22

492-11038

LOCK WASHER,3/8"

6шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

24

114744A2

BRACKET

- step mounting

2шт.

25

114358A1

STEP

- platform

1шт.

26

124078A1

BRACKET

- handrail reinforcement

2шт.

27

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.
