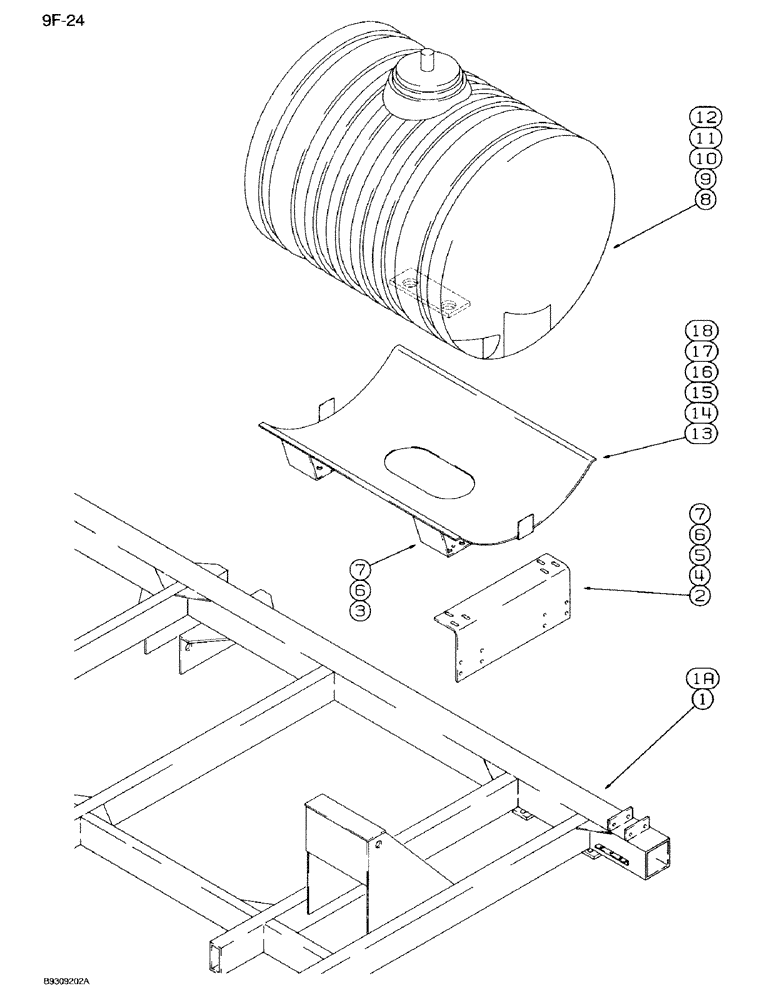

Запчасти Case IH 950 (9F-24) - LIQUID FERTILIZER TANK AND MOUNTING, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

109586A1

FRAME ASSY

FRAME - liquid fertilizer cart, 12 row narrow

1шт.

1a

114967A1

FRAME

- liquid fertilizer cart, 8 row wide, not shown

1шт.

2

110297A2

ANGLE

BRACKET - liquid fertilizer saddle mounting

4шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

24шт.

4

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

16шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

16шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

40шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

40шт.

109683A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 200 gallon

2шт.

8

NSS

NOT SOLD SEPARAT

TANK - liquid fertilizer, 200 gallon (Order 109683A1)

1шт.

9

113717A1

COVER

LID - tank

1шт.

10

113718A1

COLLAR

- tank

1шт.

11

117974A1

FITTING

- 3/4 inch bulkhead

1шт.

12

117976A1

FITTING

- 1-1/4 inch bulkhead

1шт.

109684A1

PACKAGE

SADDLE ASSEMBLY - liquid fertilizer tank (Machinery Item, see Machinery Price List for ordering information)

2шт.

13

NSS

NOT SOLD SEPARAT

SADDLE - liquid fertilizer tank (Order 109684A1)

1шт.

14

109685A2

STRAP

- tank

2шт.

15

113720A1

BOLT

- hook

4шт.

16

113719A1

SADDLE

- 38 inch diameter, tank

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
