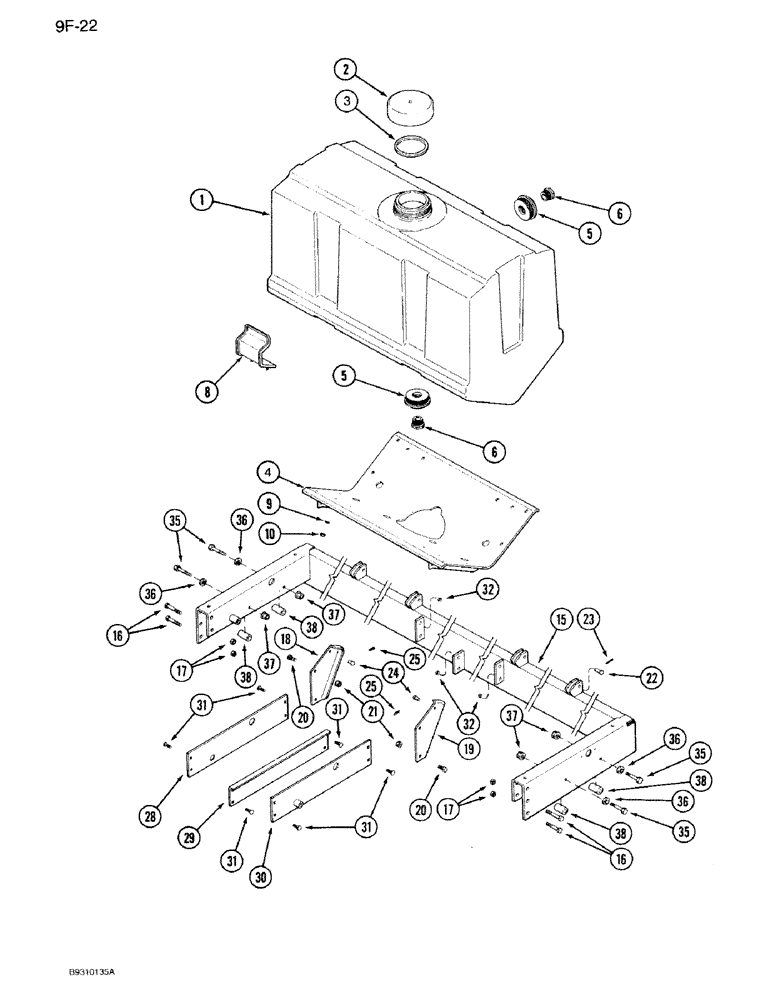

Запчасти Case IH 950 (9F-22) - LIQUID FERTILIZER TANK AND MOUNTING, ALL RIGID PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1345311C1

HOPPER

TANK - fertilizer, 70 gallon, 4 row and 8 row narrow

1шт.

1

1345312C1

HOPPER

TANK - fertilizer, 110 gallon, 6 row

1шт.

2

1345173C1

PLUG

COVER - fertilizer tank

1шт.

3

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- cap

1шт.

4

141044C1

SADDLE

SUPPORT - tank, used with 1345311C1, 70 gallon tank

1шт.

4

1339484C1

SUPPORT

- tank, used with 1345312C1, 100 gallon tank

1шт.

5

1254377C1

FITTING

- tank

2шт.

6

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, 1-1/4 inch

2шт.

8

147419C1

BRACKET

- mounting

4шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

15

90586C2

FUNNEL

FRAME - tank, 4 row

1шт.

15

141162C2

FUNNEL

FRAME - tank, 6 row narrow

1шт.

15

1254382C2

FUNNEL

FRAME - tank, 6 row wide

1шт.

15

141313C2

FRAME

- tank, left-hand, 8 row narrow

1шт.

15

141314C2

FRAME

- tank, right-hand, 8 row narrow

1шт.

16

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

17

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

18

147417C2

BAR

BRACKET - support, left-hand

1шт.

19

147418C2

BAR

BRACKET - support, right-hand

1шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

21

474848R1

LOCK NUT,1/2"-13, GB

NUT - flange lock, 1/2 inch NC

4шт.

22

22900R1

HEADED PIN

PIN - clevis, 3/8 x 1-1/4 inch

2шт.

23

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

24

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN - clevis, 3/8 x 3/4 inch

2шт.

25

544063R1

HAIR PIN COTTER

PIN - cotter, hair

2шт.

28

141096C1

BAR

PLATE - support, 4 row, and 6 row narrow

1шт.

29

141047C1

SUPPORT

PLATE - support, 8 row narrow

2шт.

30

141108C1

SUPPORT

PLATE - support, 4 row and 6 row narrow

1шт.

31

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

32

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

35

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

38

1976487C1

SPACER

- 27/32 x 63/64 x 2 inch

1шт.
