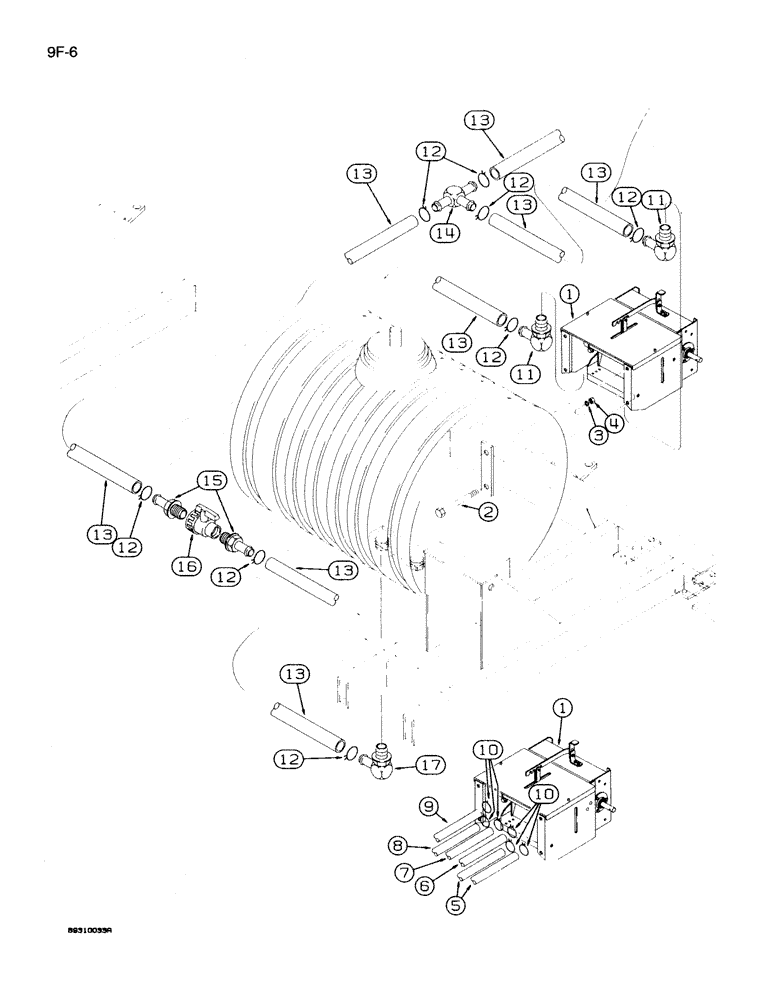

Запчасти Case IH 950 (9F-06) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PUMP ASSEMBLY - squeeze, see page 9F-11 and 9F-13 for correct assembly and parts list

1-2шт.

2

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

8шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

NSS

NOT SOLD SEPARAT

HOSE - 1/2 ID x 70-7/8 inch, cut from 134331C2, shown below

2шт.

See item 22, page 9F-57 for the liquid fertilizer tube that connects to hoses.

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - 1/2 ID x 94-1/2 inch, cut from 134331C2, shown below

1шт.

See item 22, page 9F-57 for the liquid fertilizer tube that connects to hoses.

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - 1/2 ID x 189 inch, cut from 134331C2, shown below

1шт.

See item 22, page 9F-57 for the liquid fertilizer tube that connects to hoses.

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - 1/2 ID x 212-5/8 inch, cut from 134331C2, shown below

1шт.

See item 22, page 9F-57 for the liquid fertilizer tube that connects to hoses.

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 1/2 ID x 254-1/4 inch, cut from 134331C2, shown below

1шт.

See item 22, page 9F-57 for the liquid fertilizer tube that connects to hoses.

1шт.

10

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP - hose, No. 13 Type E spring wire

12шт.

11

134271C1

ELBOW

- 90 degree, 3/4 PT x 1 inch barb

2шт.

12

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

8шт.

13

REF

INSTRUCTION

HOSE - 1 ID x 12-1/16 inch, cut from 134329C2, shown below

4шт.

14

1261309C1

TEE

- barbed

1шт.

15

134270C1

FITTING

- straight

3шт.

16

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - shutoff

2шт.

17

134271C1

ELBOW

- 90 degree, 3/4 PT x 1 inch barb

1шт.

134331C2

HOSE

- transparent, 1/2 ID x 100 foot

1шт.

134329C2

HOSE

- transparent, 1 ID x 50 foot

1шт.
