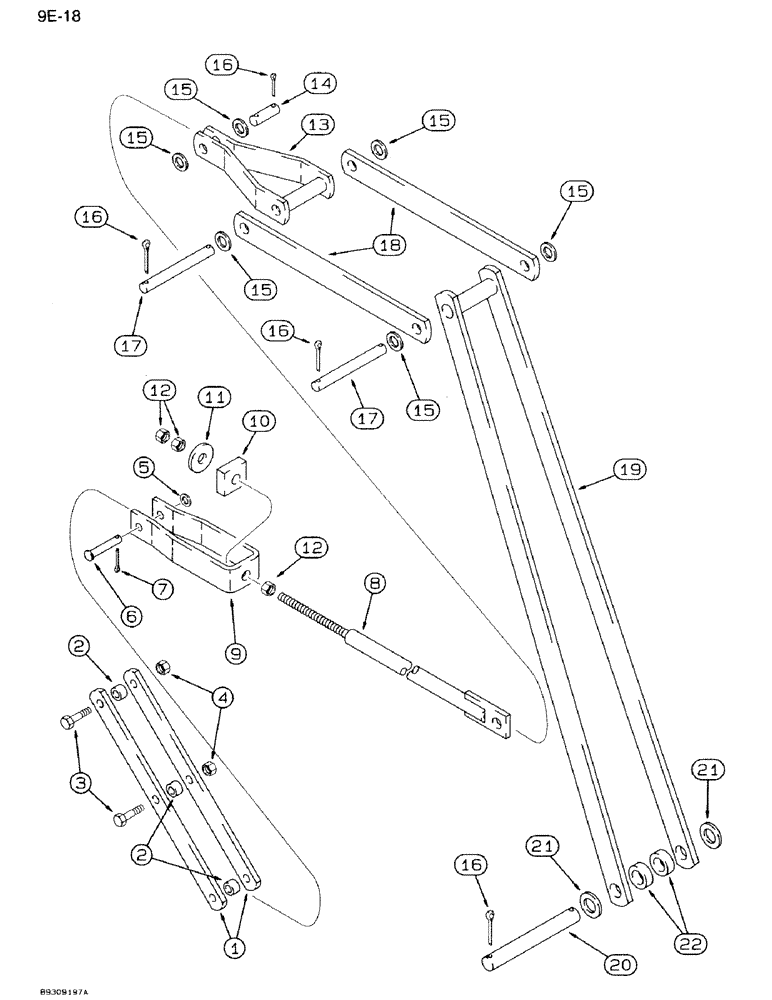

Запчасти Case IH 950 (9E-18) - ROW MARKER LIFT MECHANISM, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

126203A1

ARM

- row marker

2шт.

2

126206A1

BUSHING

- row marker arm

3шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, prevailing torque, 1/2 inch NC

2шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

6

439-5848

HEADED PIN,1/2" x 3", G5

PIN - clevis, 1/2 x 3 inch

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

8

136720A1

ROD ASSY.

ROD - linkage adjustment

1шт.

9

136718A1

CLEVIS

- adjustment rod

1шт.

10

136706A1

BUSHING

CUSHION - lift

1шт.

11

136707A1

SPACER

- cushion

1шт.

12

425-1010

NUT,5/8"-11, G5

3шт.

13

137932A1

LINK

AGE - adjustment rod, upper

1шт.

14

136740A1

PIN

- dowel, 3/4 x 2-1/4 inch

1шт.

15

495-11081

WASHER,3/4", SAE

1шт.

16

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

17

136737A1

PIN

- dowel, 3/4 x 6-3/4 inch

2шт.

18

136722A1

LINK

AGE - adjustment rod, center

2шт.

19

137931A1

LINK

AGE - adjustment rod, lower

1шт.

20

136727A1

PIN

- pivot, 1 x 8 inch

1шт.

21

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

2шт.

22

136709A1

SPACER

- cylinder mounting, closed end

2шт.
