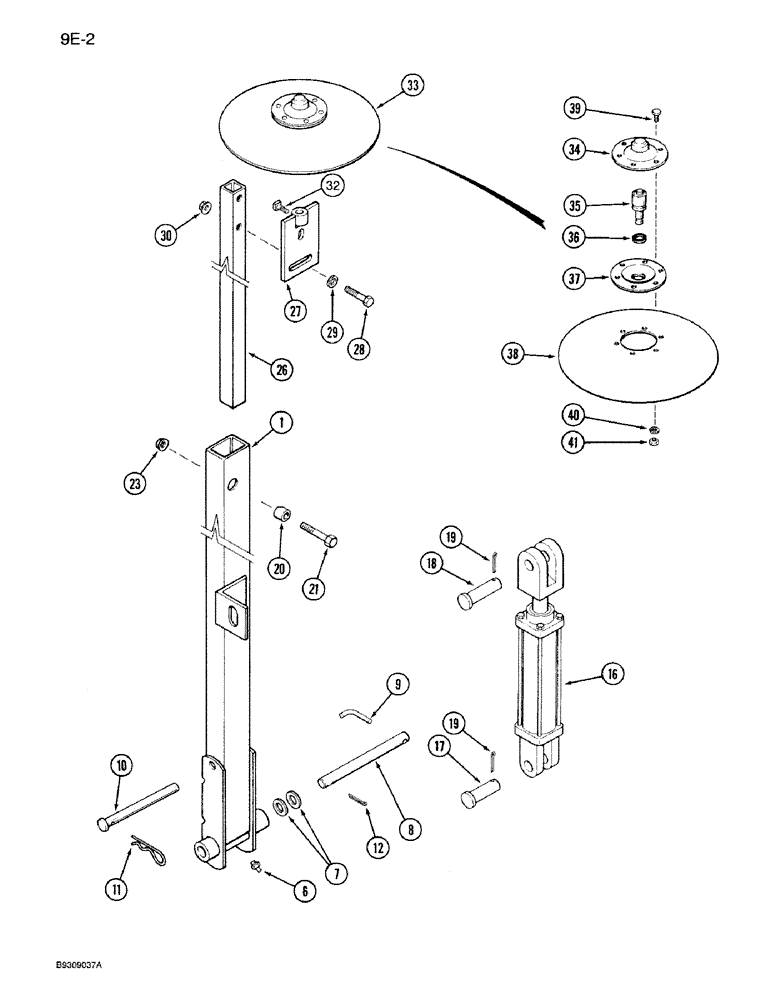

Запчасти Case IH 950 (9E-02) - ROW MARKER, 4 ROW WIDE AND 4 ROW NARROW, RIGID, 6 ROW NARROW, RIGID (09) - CHASSIS/ATTACHMENTS

1

95839C1

SUPPORT TUBE

TUBE ASSEMBLY - marker, long, with decal, 4 row wide and 6 row narrow

2шт.

1

95838C1

TUBE

ASSEMBLY - marker, short, with decal, not shown, 4 row narrow

2шт.

2

1254154C1

DECAL,Warning Keep Away Markers Actuate

- warning, marker, not shown, see page 9F-85, item 8

1шт.

6

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease

2шт.

7

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

6шт.

8

1263878C1

PIVOT PIN

PIN - marker pivot

2шт.

9

471323R1

LINCH PIN

PIN - pivot lock, 3/8 inch diameter

2шт.

10

1263946C1

HEADED PIN

PIN - tube retaining

2шт.

11

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter

2шт.

12

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

16

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift, marker, see page 8-69

2шт.

17

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch

2шт.

18

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

20

89200C1

TUBE,13.5 mm ID x 31.7 mm OD x 20 mm L

- adjusting

2шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

23

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

2шт.

26

1263858C1

TUBE,565 mm Length

- outer, 4 row narrow

2шт.

26

1263882C1

TUBE,1060 mm Length

- outer, 4 row wide and 6 row narrow

2шт.

27

1279601C1

LARGE PLATE

PLATE - disk adjusting

2шт.

28

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

30

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

4шт.

32

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point

2шт.

33

1264358C1

DISC,13"

DISK ASSEMBLY - marker

2шт.

34

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

- bearing, outer

1шт.

35

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING - disk

1шт.

36

480679R1

WASHER

- felt

1шт.

37

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

- bearing, inner

1шт.

38

469372R1

DISC,13"

DISK - marker, 13 inch

1шт.

NSS

NOT SOLD SEPARAT

RIVET - 5/16 x 3/4 inch, not shown, order items 39 through 41

6шт.

39

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

40

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

41

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.
