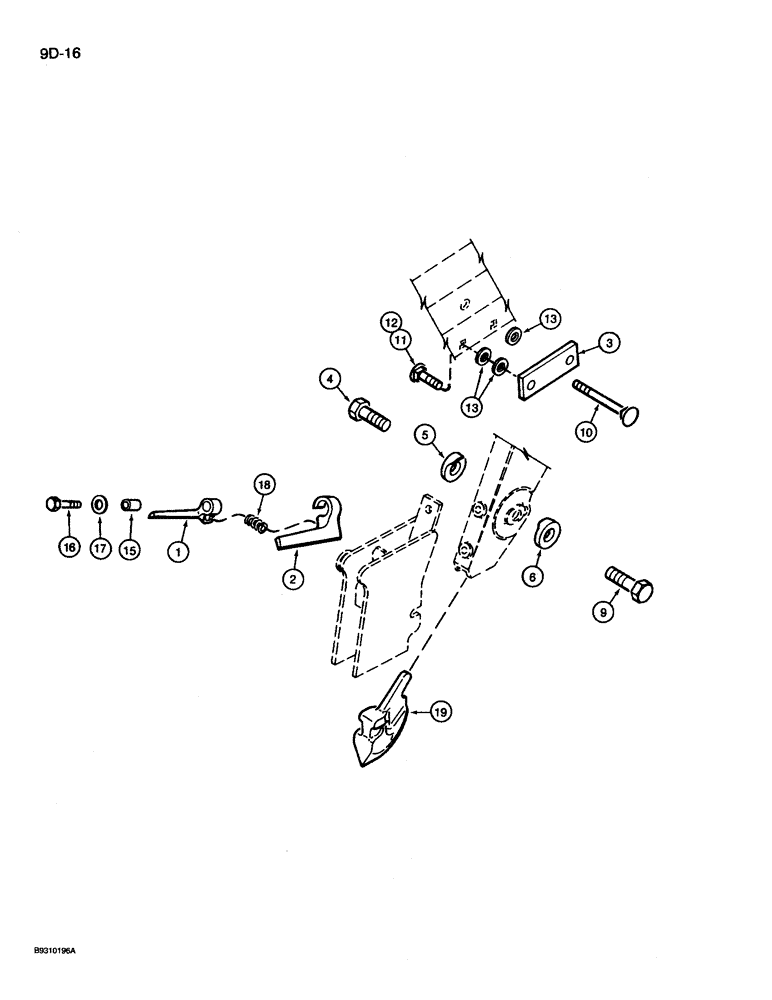

Запчасти Case IH 950 (9D-16) - BLACKLAND ATTACHMENT, ALL PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1279848C1

HOLDER

SCRAPER - disk, left

2шт.

2

1279849C1

HOLDER

SCRAPER - disk, right

2шт.

3

1268311C1

SPACER

- scraper

6шт.

4

28552R1

BOLT,Hex, 5/8" - 11 x 1 3/4", LH, Gr 8

- hex, 5/8 NC x 1-3/4 inch, LH Thread, Grade 8

2шт.

5

90918C1

WASHER

SHIM - scraper, left

2шт.

6

90919C1

WASHER

SHIM - scraper, right

2шт.

9

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

10

433-552

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/4", Gr 5

BOLT - carriage, 5/16 NC x 3-1/4 inch

2шт.

11

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

4шт.

12

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

4шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

20шт.

15

1279850C2

SPACER

- 1/2 x 3/8 x 51/64 inch

2шт.

16

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

18

528533R1

SPRING

- scraper

2шт.

19

96401C1

POINT

- furrow firming

2шт.
