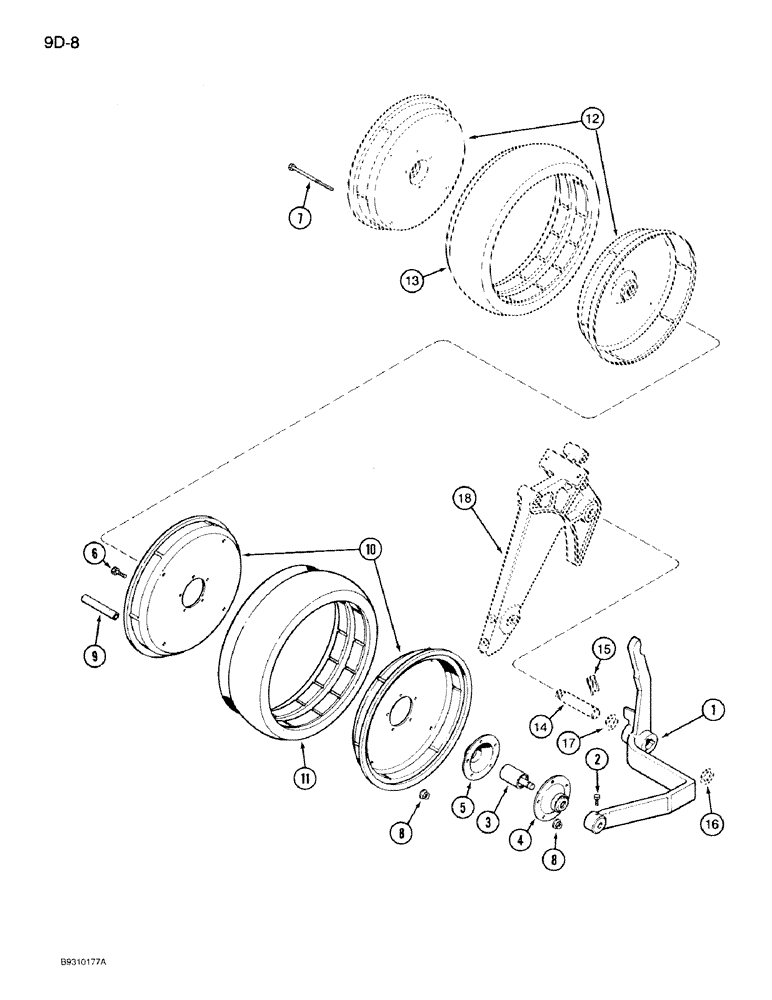

Запчасти Case IH 950 (9D-08) - DUAL GAUGE WHEEL ATTACHMENT, VERTICAL FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1978933C1

KIT - dual gauge wheel (Machinery item) (Order from Machinery price list)(Includes two (2) left-hand and two (2) right-hand gauge wheel assemblies, see Note)

1шт.

1

1954902C1

ARM

- dual gauge wheel, right-hand (Shown)

1шт.

1

1954901C1

ARM

- dual gauge wheel, left-hand

1шт.

2

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch

1шт.

3

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

BEARING AND SPINDLE ASSEMBLY - ball

1шт.

4

1976541C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.79 mm

HOUSING - bearing, open

1шт.

5

1969236C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.54 mm

HOUSING - bearing, closed

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

7

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

9шт.

9

1954903C1

SPACER

- pipe, 12.5 ID x 96 mm

4шт.

10

1969237C1

RIM

- dual gauge wheel

2шт.

11

1969231C1

TYRE/TIRE

TIRE - dual gauge wheel

1шт.

12

REF

INSTRUCTION

RIM - gauge wheel

2шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

13

REF

INSTRUCTION

TIRE - gauge wheel

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

14

REF

INSTRUCTION

PIN - gauge wheel

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

15

REF

INSTRUCTION

PIN - snap lock

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

16

REF

INSTRUCTION

WASHER - flat

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

17

REF

INSTRUCTION

WASHER - flat

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.

18

REF

INSTRUCTION

BRACKET - gauge wheel pivot

1шт.

See pages 9D-6 and 9D-7 for single gauge wheel and attaching parts.

1шт.
