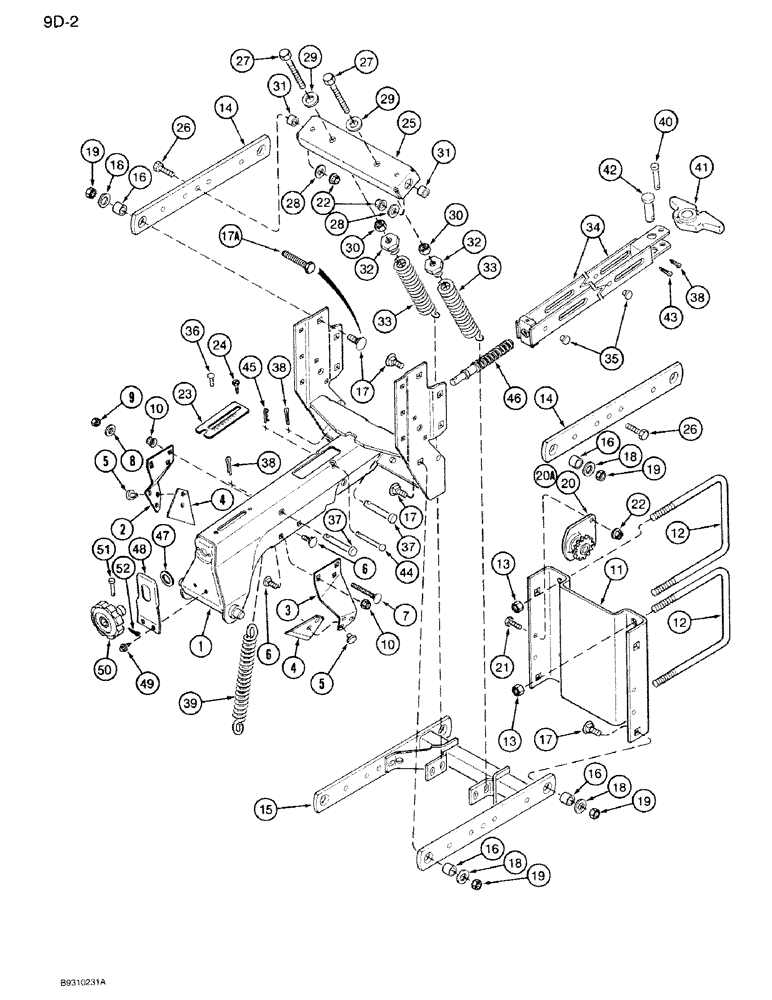

Запчасти Case IH 950 (9D-02) - ROW UNIT FRAME, ALL RIGID, VERTICAL FOLD, AND FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1547308C1

FRAME ASSY

FRAME - planter unit

1шт.

2

147436C93

SCRAPER

BLADE ASSEMBLY - scraper, disk, left-hand

1шт.

3

1978897C1

SCRAPER

BLADE ASSEMBLY - scraper, disk, right-hand

1шт.

4

147438C2

HALF BLADE

BLADE - scraper

1шт.

5

147274C1

RIVET,4.78mm OD x 10mm L

- special, 3/16 x 3/8 inch

2шт.

6

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - carriage, 5/16 NC x 5/8 inch

4шт.

7

411-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 2

BOLT - carriage, 5/16 NC x 2-3/4 inch

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

4шт.

11

141728C2

ANGLE

SUPPORT - head bracket

1шт.

12

1250813C1

U-BOLT

- 5/8 inch NC, 6 row wide and 8 row

2шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

137507C3

BAR

BRACKET - linkage, lower

2шт.

15

147354C2

SUPPORT

- linkage, lower

1шт.

16

137512C2

BUSHING

- linkage pivot

8шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

8шт.

17a

102732A1

BOLT

- hex, 1/2 NC x 1-1/2 inch, special (If equipped)

1шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

8шт.

19

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

8шт.

20

140920C1

GEAR, IDLER

SPROCKET - bearing, standard, 12 tooth (Rigid only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 5/8 HEX BORE.

1шт.

20

1261576C1

SPROCKET ASSY.

SPROCKET - bearing, 14 tooth (Rigid only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 5/8 HEX BORE.

1шт.

20

1264086C1

SPROCKET ASSY.

SPROCKET - bearing, 16 tooth (Rigid only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 5/8 HEX BORE.

1шт.

20

1261577C1

GEAR, IDLER

SPROCKET - bearing, 18 tooth (Rigid only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 5/8 HEX BORE.

1шт.

20a

103579A1

BEARING ASSY,0.894" ID x 3.62" OD x 1.875"

- bearing, standard, 12 tooth (Folding only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 7/8 HEX BORE.

1шт.

20a

113712A1

SPROCKET ASSY.

SPROCKET - bearing, 14 tooth (Folding only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 7/8 HEX BORE.

1шт.

20a

113713A1

SPROCKET ASSY.

SPROCKET - bearing, 16 tooth (Folding only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 7/8 HEX BORE.

1шт.

20a

113714A1

SPROCKET ASSY.

SPROCKET - bearing, 18 tooth (Folding only)

1шт.

SPROCKET'S - THESE PART NUMBER'S ARE FOR A 7/8 HEX BORE.

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

147326C2

GAUGE

- depth

1шт.

24

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted tapping, No. 10 x 1/2 inch

2шт.

25

141729C1

CHANNEL

SUPPORT - spring mounting (except seed growers special)

1шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

27

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT - hex special

2шт.

28

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

31

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

- spring mounting (except seed growers special)

2шт.

32

144847C1

PLUG

- spring (except seed growers special)

2шт.

33

140579C1

SPRING

- linkage (except seed growers special)

2шт.

ROTARY SCRAPER

1шт.

1547680C1

KIT

ASSY.

2шт.

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

5/16

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

1547194C1

HALF BLADE

rotary

1шт.

136-111

COTTER PIN,Int, 7/32" x .062"

blade, to hold

1шт.

34

147276C4

BAR

- tension

1шт.

36

1277597C1

STUD

- barbed, No. 12 x 3/4 inch

1шт.

37

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - clevis, 1/2 x 2-3/4 inch

2шт.

38

432-1216

COTTER PIN,3/16" x 1"

3шт.

39

147425C5

SPRING

- press wheel

1шт.

40

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - clevis, 1/2 x 1-1/2 inch

1шт.

41

1279508C1

BRACKET

- wobble

1шт.

42

427-12179

CLEVIS PIN,3/4" x 1.796"

PIN - clevis 3/4 x 1-51/64 inch

1шт.

43

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

44

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch

1шт.

45

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

46

1279684C1

ROD

- depth adjusting

1шт.

47

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

48

1279107C1

STRAP

COVER - detent

1шт.

49

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer tapping, No. 10-24 x 1/2 inch

2шт.

50

1279740C91

KNOB

ASSEMBLY - detent, depth adjusting

1шт.

51

28020R1

PIN

- clevis, 1/4 x 1-1/4 inch

1шт.

52

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

1шт.
