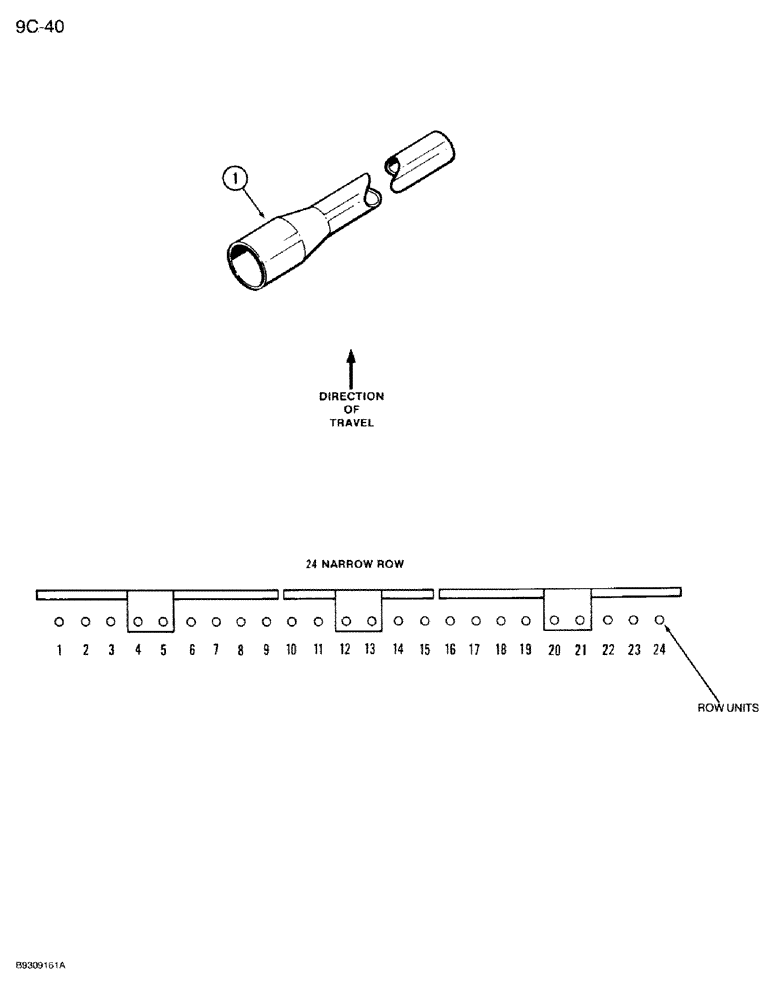

Запчасти Case IH 950 (9C-40) - SEED DELIVERY TUBE, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 1 (See Note B)

1шт.

1

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 2 (See Note B)

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 3 (See Note B)

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 4 (See Note A)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 5 (See Note A)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 6 (See Note B)

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 7 (See Note B)

1шт.

1

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 8 (See Note B)

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 9 (See Note B)

1шт.

1

115918A1

TUBE,17.45 - 28.5 mm OD, 2800 mm Length

- seed delivery, 110 inch, No. 10 (See Note B)

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 11 (See Note B)

1шт.

1

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 12 (See Note A)

1шт.

1

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed delivery, 42 inch, No. 13 (See Note A)

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 14 (See Note B)

1шт.

1

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 15 (See Note B)

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 16 (See Note B)

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 17 (See Note B)

1шт.

1

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 18 (See Note B)

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 19 (See Note B)

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 20 (See Note A)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 21 (See Note A)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 22 (See Note B)

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 23 (See Note B)

1шт.

1

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 24 (See Note B)

1шт.
