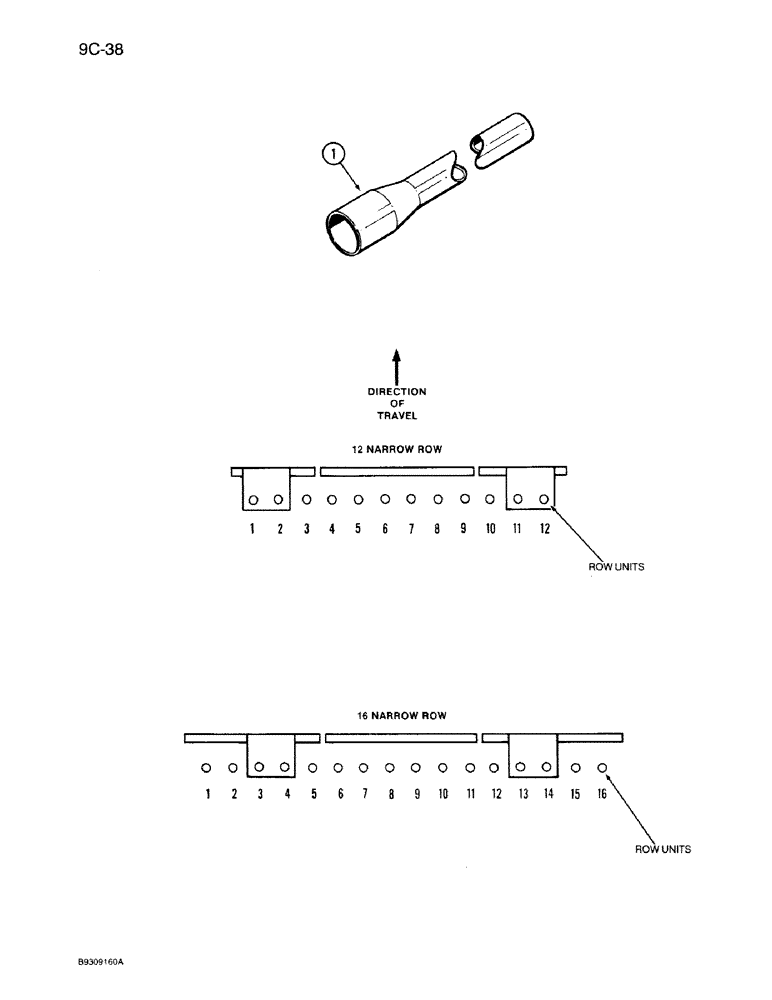

Запчасти Case IH 950 (9C-38) - SEED DELIVERY TUBE, 12 AND 16 ROW NARROW, FRONT FOLD, 12 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 1 (See Note A)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 2 (See Note A)

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 3 (See Note B)

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 4 (See Note B)

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 5 (See Note B)

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 6 (See Note B)

1шт.

1

115966A1

TUBE - seed delivery, 183 inch, No. 7 (See Note B)

1шт.

1

115968A1

TUBE - seed delivery, 167 inch, No. 8 (See Note B)

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 9 (See Note B)

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 10 (See Note B)

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 11 (See Note A)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 12 (See Note A)

1шт.

1

115918A1

TUBE,17.45 - 28.5 mm OD, 2800 mm Length

- seed delivery, 110 inch, No. 1 (See Note B), 16 row narrow

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No 2 (See Note B), 16 row narrow

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 3 (See Note A), 16 row narrow

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4 (See Note A), 16 row narrow

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 5 (See Note B), 16 row narrow

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 6 (See Note B), 16 row narrow

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 7 (See Note B), 16 row narrow

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 8 (See Note B), 16 row narrow

1шт.

1

130979A1

TUBE

- seed delivery, 195 inch, No. 9, 16 row narrow

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 10 (See Note B), 16 row narrow

1шт.

1

115920A1

TUBE,17.45 - 28.5 mm OD, 4400 mm Length

- seed delivery, 173 inch, No. 11 (See Note B), 16 row narrow

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 12 (See Note B), 16 row narrow

1шт.

1

1254367C2

TUBE,17.45 - 28.5 mm OD, 1190 mm Length

- seed delivery, 47 inch, No. 13 (See Note A), 16 row narrow

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 14 (See Note A), 16 row narrow

1шт.

1

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 15 (See Note B), 16 row narrow

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 16 (See Note B), 16 row narrow

1шт.
