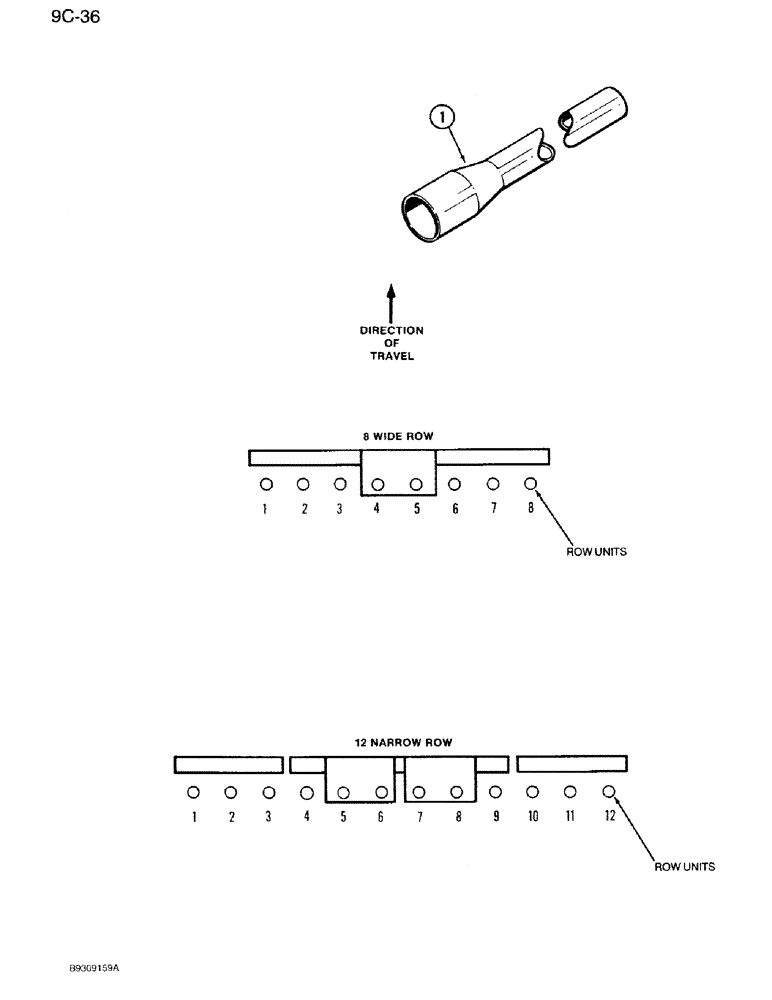

Запчасти Case IH 950 (9C-36) - SEED DELIVERY TUBE, ALL VERTICAL FOLDING PLANTERS, 8 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 1 (See Note B)

1шт.

1

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 2 (See Note B)

1шт.

1

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 3 (See Note B)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 4 (See Note A)

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 5 (See Note A)

1шт.

1

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 6 (See Note B)

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 119 inch, No. 7 (See Note B)

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 8 (See Note B)

1шт.

1

1973256C1

TUBE

- seed delivery, 162 inch, No. 1 (See Note B), 12 row narrow

1шт.

1

1337535C1

TUBE,17.45 - 28.5 mm OD, 3165 mm Length

- seed delivery, 125 inch, No. 2 (See Note B), 12 row narrow

1шт.

1

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 3 (See Note B), 12 row narrow

1шт.

1

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4 (See Note B), 12 row narrow

1шт.

1

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5 (See Note A), 12 row narrow

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 6 (See Note A), 12 row narrow

1шт.

1

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 7 (See Note A), 12 row narrow

1шт.

1

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 8 (See Note A), 12 row narrow

1шт.

1

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 9 (See Note B), 12 row narrow

1шт.

1

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 10 (See Note B), 12 row narrow

1шт.

1

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 11 (See Note B), 12 row narrow

1шт.

1

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 12 (See Note B), 12 row narrow

1шт.
