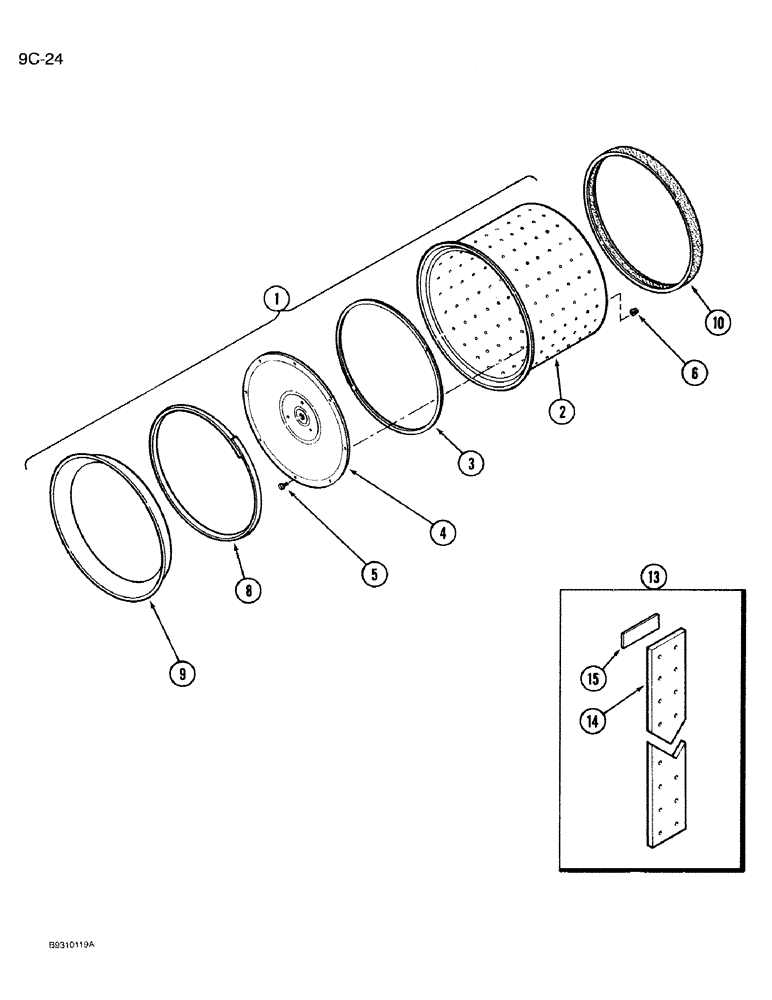

Запчасти Case IH 950 (9C-24) - SEED DRUM, ALL RIGID PLANTERS,8 ROW WIDE&12 ROW NARROW,VERTICAL FOLD,12,16,&24 ROW NARROW,FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

548777R93

DRUM

ASSEMBLY - seed, 24 hole (Corn)

1шт.

1A 548777R95 IS A DRUM WITH 24 HOLES AND 24 BUMPS OR POCKETS.

1шт.

1

1546934C1

DRUM

ASSEMBLY - seed, 24 hole (Corn)

1шт.

1B 1546934C3 IS A DRUM WITH 24 HOLES AND 24 BUMPS OR POCKETS.

1шт.

1

549966R93

DRUM

ASSEMBLY - seed, 24 hole (Popcorn, sunflower)

1шт.

1C 549966R95 IS A DRUM WITH 24 HOLES AND 24 BUMPS OR POCKETS

1шт.

1

149354C92

DRUM

ASSEMBLY - seed, 24 hole (Sunflower)

1шт.

1

60270C93

DRUM

ASSEMBLY - seed, 36 hole (Corn)

1шт.

1E 60270C95 IS A DRUM WITH 36 HOLES AND 36 BUMPS OR POCKETS.

1шт.

1

1546935C1

DRUM

ASSEMBLY - seed, 36 hole (Corn)

1шт.

1F 154935C3 IS A DRUM WITH 36 HOLES AND 36 BUMPS OR POCKETS

1шт.

1

549964R93

DRUM

ASSEMBLY - seed, 36 hole (Beet)

1шт.

1

58434C93

DRUM

ASSEMBLY - seed, 36 hole (Raw beet)

1шт.

1

61144C93

DRUM

ASSEMBLY - seed, 36 hole (Popcorn, sunflower)

1шт.

1I 61144C95 IS A DRUM WITH 36 HOLES AND 36 BUMPS OR POCKETS

1шт.

1

63814C93

DRUM

ASSEMBLY - seed, 72 hole (Beet)

1шт.

1

548778R93

DRUM

ASSEMBLY - seed, 72 hole (Milo, sorghum)

1шт.

1

549968R93

DRUM

ASSEMBLY - seed, 72 hole (Beans)

1шт.

1

1546937C1

DRUM

ASSEMBLY - seed, 96 hole (Edible bean)

1шт.

1

549970R93

DRUM

ASSEMBLY - seed, 96 hole (Cotton)

1шт.

1

548779R93

DRUM

ASSEMBLY - seed, 144 hole (Soybean)

1шт.

1

60649C93

DRUM

ASSEMBLY - seed, 144 hole (Cotton, soybean)

1шт.

1

58436C93

DRUM

ASSEMBLY - seed, 144 hole (Sorghum)

1шт.

1

1546936C1

DRUM

ASSEMBLY - seed, 144 hole (Small seed)

1шт.

1

76810C92

DRUM

ASSEMBLY - seed, 240 hole (Soybean)

1шт.

2

NSS

NOT SOLD SEPARAT

DRUM - seed (Order drum assembly)

1шт.

3

57555C1

SEALING STRIP

- drum, not available for service, 63-1/2 inch long, cut from 57554C1 bulk seal, see below

1шт.

4

145113C1

CAP

COVER - end, drum

1шт.

5

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

- machine, oval head Phillips, No. 10 NC x 5/8 inch

8шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

60303C5

RING, SNAP

RING - seal retaining

1шт.

REF #8, P/N 60303C5. IF DLR. NEEDS SEAL RING TO BE 1/8" SHORTER, HE CAN USE P/N 126231A1. 5/22/96 BJR

1шт.

9

100589C3

SEAL

- drum

1шт.

10

57669C4

BELT,38.10 mm W x 1133.00 mm L

Seed drum 38.10 mm W x 1133.00 mm L

1шт.

13

63280C1

PACKAGE

KIT - cushion belt, seed drum, see Note B

1шт.

14

NSS

NOT SOLD SEPARAT

BELT - cushioning, drum

1шт.

15

NSS

NOT SOLD SEPARAT

FASTENER - belt

1шт.

57554C1

SEAL

- bulk, foam, 200 foot roll, use to make item 3

1шт.
