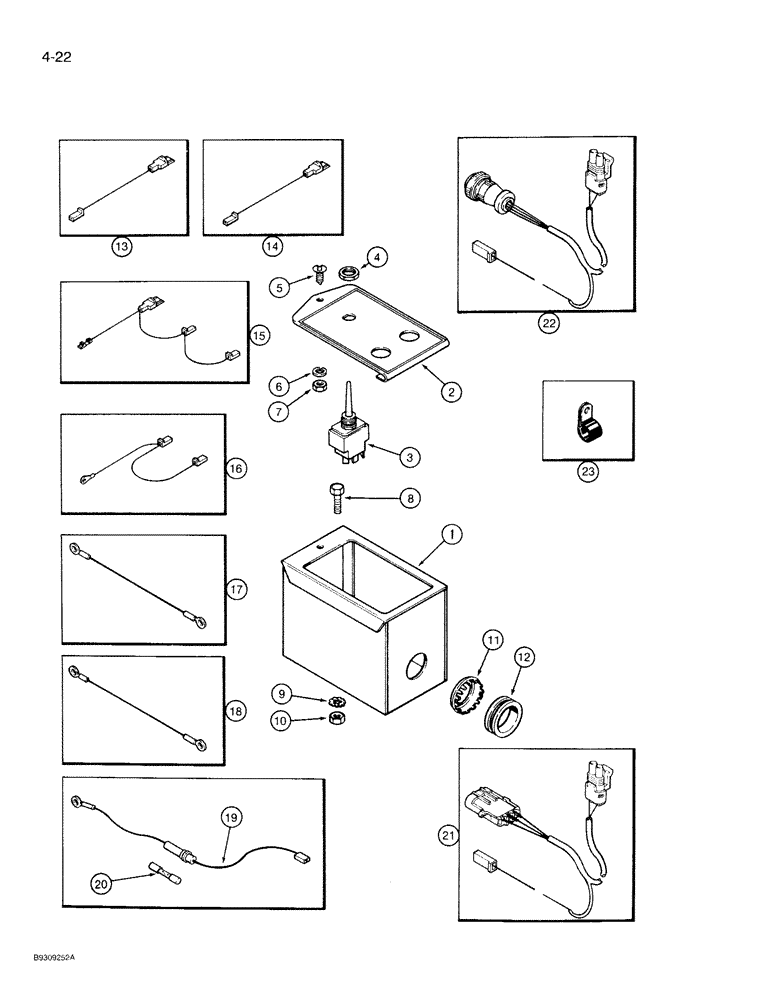

Запчасти Case IH 950 (4-22) - MARKER CONTROL BOX, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD, ALL RIGID (04) - ELECTRICAL SYSTEMS

1

116259C4

BOX

- control

1шт.

2

147230C1

PLATE

ASSEMBLY - marker control (Includes decal)

1шт.

147218C1

DECAL,Control Right Off Left

- marker control, mechanical (See Page 9F-87 for decals)

1шт.

3

121542C1

SWITCH

ASSEMBLY - marker control

1шт.

4

57603C1

NUT

- switch retaining

1шт.

5

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #8 x 3/8"

1шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

225-14210

NUT,#10-32

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

1264374C1

PLUG

- control box

1шт.

12

169851C1

GROMMET

- control box

1шт.

13

A181761

CABLE

WIRE - marker control, 2 wheel drive Case or CASE IH Tractors

1шт.

14

A181758

CABLE

WIRE - marker control, 4 wheel drive Case or CASE IH Tractors

1шт.

15

A181760

CABLE

WIRE - cab connector, 2 wheel drive Case or CASE IH Tractors

1шт.

16

A181753

CABLE

WIRE - cab connector, 4 wheel drive Case or CASE IH Tractors

1шт.

17

111323C1

CABLE

WIRE - green, 16 gauge, 8 inch long

1шт.

18

111322C1

CABLE

WIRE - black, 12 gauge, 8 inch long

1шт.

19

149506C1

CABLE

WIRE ASSEMBLY - switch

1шт.

20

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

21

1964768C1

HARNESS

- marker adapter (7100 Series Tractors)

1шт.

22

1344888C2

HARNESS

- marker adapter (5100 Series Tractors)

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - wire retaining

3шт.
