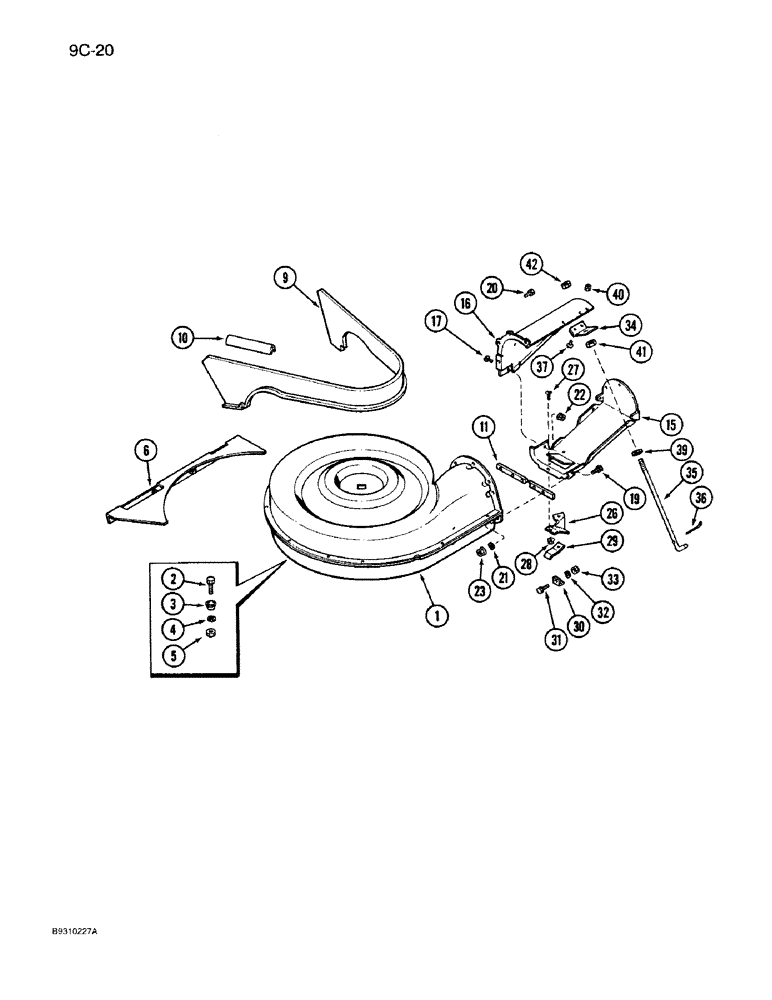

Запчасти Case IH 950 (9C-20) - FAN SHROUD, ALL RIGID, VERTICAL FOLD, AND FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

136957C4

SHROUD

- fan

1шт.

2

19505R1

BOLT,1/4" - 20 x 1", Class 2

- hex special step, 1/4 NC x 1 inch

8шт.

3

136969C1

FASTENER

NUT - push

8шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

6

1263902C1

SUPPORT

- fan shroud

1шт.

145047C94

SEAL

ASSEMBLY - air duct

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - air duct

1шт.

10

1264455C1

SEAL

- air duct top, 55.5 inch long, not available for service, cut from 1267946C1 bulk seal, see below

1шт.

11

144842C2

SEAL

- fan shroud

1шт.

15

141208C1

DEFLECTOR

- air, top

1шт.

16

141207C2

DEFLECTOR

- air, bottom

1шт.

17

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

5шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

20

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

22

231-51409

SERRATED NUT,Flg, USR, #10-24

5шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

26

57393C1

INDICATOR

BRACKET - air flow indicating

1шт.

27

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

2шт.

28

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

29

57394C1

INDICATOR

BAFFLE - fan shroud

1шт.

30

1263875C1

SUPPORT

- seal

2шт.

31

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

34

1264267C1

SUPPORT

- stabilizer rod

1шт.

35

1264268C1

ROD

- stabilizer

1шт.

36

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

37

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

2шт.

39

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

1шт.

40

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

41

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

42

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

1267946C1

SEAL

- bulk, 25 foot roll, use to make item 10

1шт.
