Запчасти Case IH 950 (9C-14) - SEED HOPPER, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

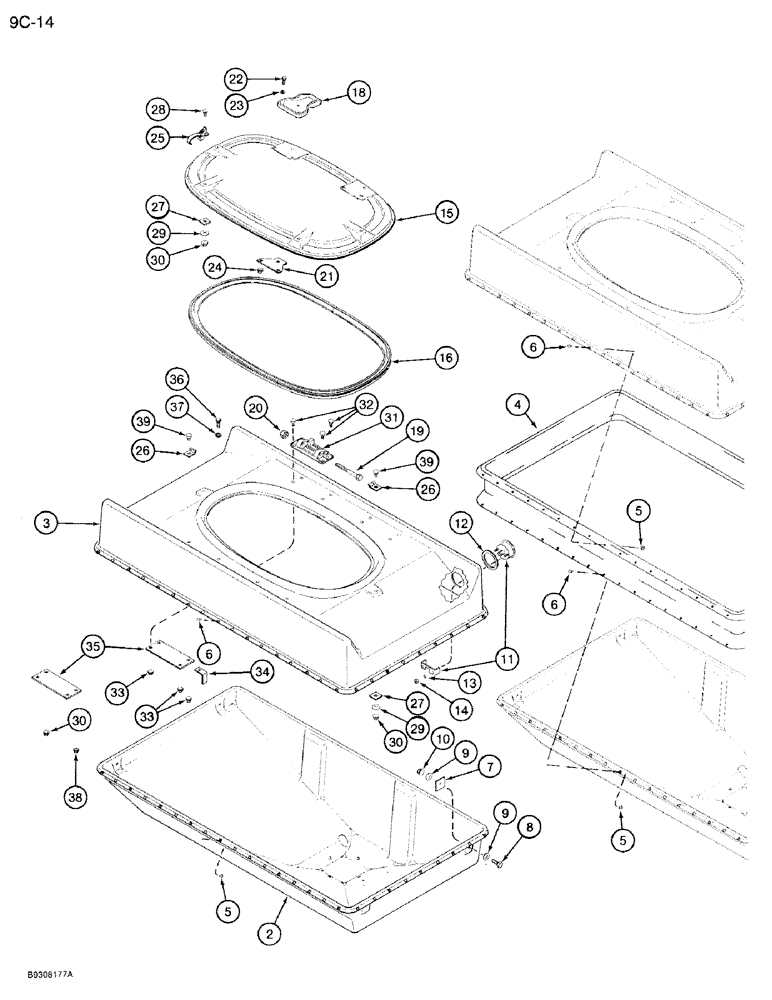

Схема запчастей Case IH 950 - (9C-14) - SEED HOPPER, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS
12
2
13
5
31
14
30
9
15
3
37
6
26
4
28
10
8
24
39
11
5
34
18
30
6
33
7
30
19
20
29
27
26
22
9
35
38
16
36
6
5
29
39
23
21
32
25
27
33

Артикул

Название

Примечание

Количество

122496A1

HOPPER

ASSEMBLY - seed

1шт.

2

NSS

NOT SOLD SEPARAT

HOPPER - seed, lower (Order hopper assembly)

1шт.

3

140855C4

HOPPER

- seed, upper

1шт.

4

122493A1

EXTENSION

- hopper

1шт.

5

108003A1

WASHER,4.93mm ID x 11.94mm OD x 1.45mm Thk

- rivet backup, special

104шт.

6

104804C1

RIVET,Pop, 3/16" x .575"

- 5 x 15 mm

104шт.

7

547692R1

PAD

SPACER - seed hopper

4шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

9

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 11/64 inch

8шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

149128C92

GAUGE

- air pressure

1шт.

12

546988R1

GASKET

- air gauge

1шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14210

NUT,#10-32

2шт.

15

141221C92

COVER

- hopper

1шт.

16

140860C1

SEAL

- hopper cover

1шт.

17

113483C2

DECAL,Warning Do Not Open Lid

- warning, do not open lid, not shown, see page 9F-85, item 1

1шт.

18

140859C1

HINGE

- hopper cover

2шт.

19

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

20

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

21

144947C1

BAR

PLATE - reinforcement

2шт.

22

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- 5/16 NC x 1 inch

6шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

25

140861C1

LATCH

- cover

4шт.

26

548622R1

CLIP

- locking

4шт.

27

1254517C1

STRIP

SPACER - cover latch

8шт.

28

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

4шт.

29

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

6шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

31

140537C1

PIVOT

- cover

2шт.

32

412-620

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - hex, 3/8 NC x 1-1/4 inch

8шт.

33

231-5146

FLANGE NUT,3/8"-16

8шт.

34

1263875C1

SUPPORT

BRACKET - bypass tube

1шт.

35

140503C1

PLATE

- guard

4шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

37

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

39

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.

Выбрано товаров: 39
