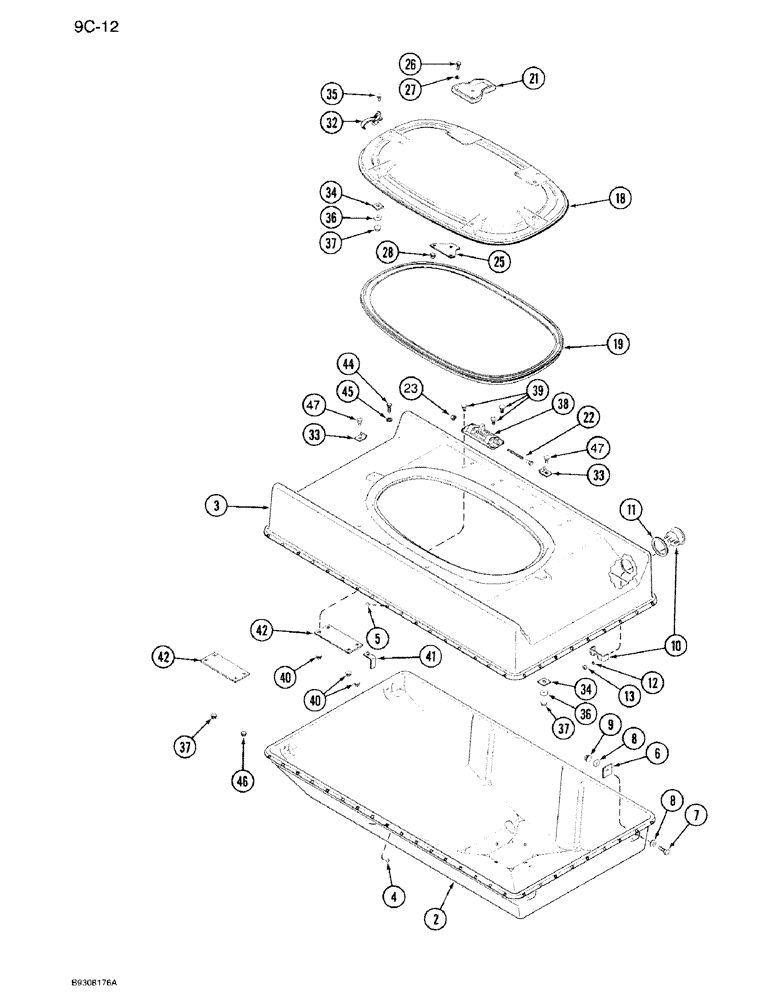

Запчасти Case IH 950 (9C-12) - SEED HOPPER, ALL RIGID AND VERTICAL FOLD, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

140854C4

HOPPER

ASSEMBLY - seed

1шт.

2

NSS

NOT SOLD SEPARAT

HOPPER - seed, lower (Order hopper assembly)

1шт.

3

140855C4

HOPPER

- seed, upper

1шт.

4

108003A1

WASHER,4.93mm ID x 11.94mm OD x 1.45mm Thk

- rivet backup, special

52шт.

5

104804C1

RIVET,Pop, 3/16" x .575"

- 5 x 15 mm

52шт.

6

547692R1

PAD

SPACER - seed hopper

4шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 11/64 inch

8шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

149128C92

GAUGE

- air pressure

1шт.

11

546988R1

GASKET

- air gauge

1шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

225-14210

NUT,#10-32

2шт.

18

141221C92

COVER

- hopper

1шт.

19

140860C1

SEAL

- hopper cover

1шт.

20

113483C2

DECAL,Warning Do Not Open Lid

- warning, do not open lid, not shown, see page 9F-85, item 1

1шт.

21

140859C1

HINGE

- hopper cover

2шт.

22

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

23

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

25

144947C1

BAR

PLATE - reinforcement

2шт.

26

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- 5/16 NC x 1 inch

6шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

32

140861C1

LATCH

- cover

4шт.

33

548622R1

CLIP

- locking

4шт.

34

1254517C1

STRIP

SPACER - cover latch

8шт.

35

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

4шт.

36

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

6шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

38

140537C1

PIVOT

- cover

2шт.

39

412-620

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - carriage, 3/8 NC x 1-1/4 inch, grade 2

8шт.

40

231-5146

FLANGE NUT,3/8"-16

8шт.

41

1263875C1

SUPPORT

BRACKET - bypass tube

1шт.

42

140503C1

PLATE

- guard

4шт.

44

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

45

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

47

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.
