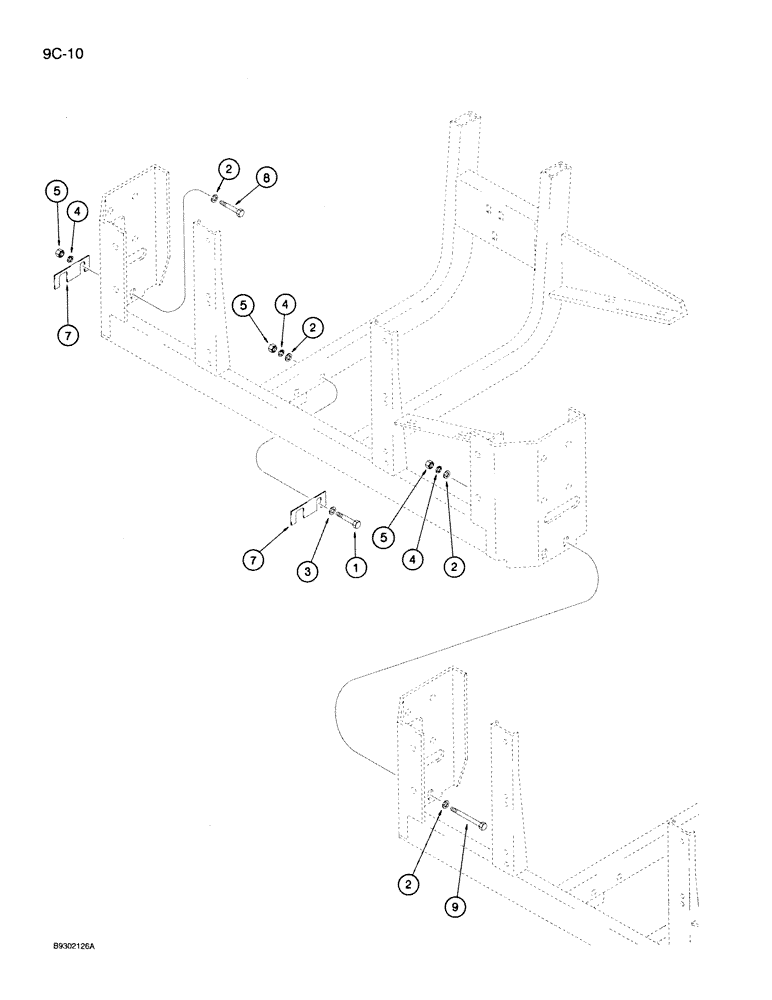

Запчасти Case IH 950 (9C-10) - SEED MODULE HOUSING MOUNTING, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4-8шт.

2

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch

12-20шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4-8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8-14шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

8-14шт.

7

104453A1

SHIM

- module mounting

1шт.

8

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

9

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8 (12 row narrow only)

2шт.

1

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

12, 16 & 24 row narrow - front fold Hex, 1/2"-13 x 3 3/4", G5

8шт.

2

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, 12, 16 & 24 row narrow - front fold

24шт.

Quantity shown is for two modules.

1шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, 12, 16 & 24 row narrow - front fold

8шт.

Quantity shown is for two modules.

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 12, 16 & 24 row narrow - front fold 1/2"

16шт.

Quantity shown is for two modules.

1шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8, 12, 16 & 24 row narrow - front fold

16шт.

Quantity shown is for two modules.

1шт.

7

104453A1

SHIM

- module mounting, 12, 16 & 24 row narrow - front fold

1шт.

Quantity shown is for two modules.

1шт.

8

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

12, 16 & 24 row narrow - front fold Hex, 1/2"-13 x 2 1/4", G8

8шт.

Quantity shown is for two modules.

1шт.
