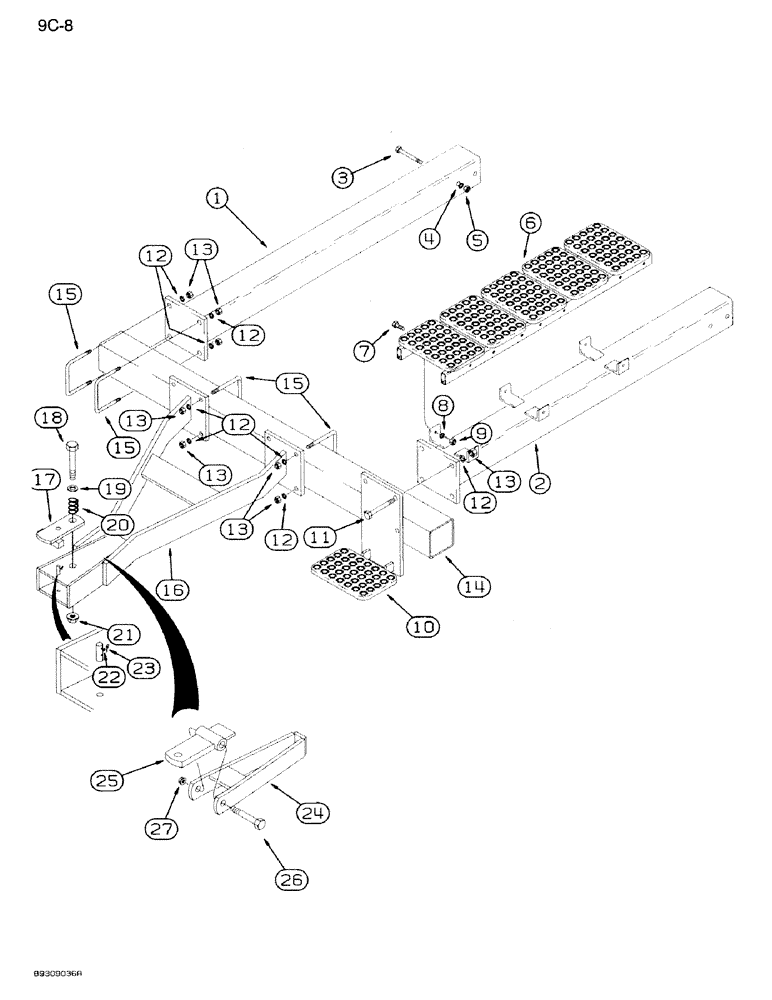

Запчасти Case IH 950 (9C-08) - REAR TRAILING TANK HITCH, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

125139A1

SUPPORT

TUBE - hitch support

1шт.

2

128322A1

TUBE,800 mm Length

- walkway support

1шт.

3

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 inch NC x 6 inch

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

128314A1

PLATFORM

- walkway

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

8

492-11038

LOCK WASHER,3/8"

6шт.

9

425-106

NUT,3/8"-16, Cl 5

6шт.

10

125675A1

STEP

- walkway

1шт.

11

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

4шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

13

425-1010

NUT,5/8"-11, G5

16шт.

14

125180A1

TUBE,1751 mm Length

- hitch crossmember

1шт.

15

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 inch NC x 5 x 5 inch

6шт.

16

125132A1

TRAILER HITCH

HITCH - trailing tank

1шт.

17

1976396C1

LATCH

- tank hitch

1шт.

18

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

19

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

20

1986194C1

SPRING

- tank hitch

1шт.

21

23443R1

LOCK NUT,1"-8, GC

NUT - lock, 1 inch

1шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

23

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik

1шт.

24

1976399C1

GUIDE

- tongue

1шт.

25

1976402C1

TOW BAR

TONGUE - hitch

1шт.

26

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 x 7 inch

1шт.

27

23443R1

LOCK NUT,1"-8, GC

NUT - lock, 1 inch

1шт.
