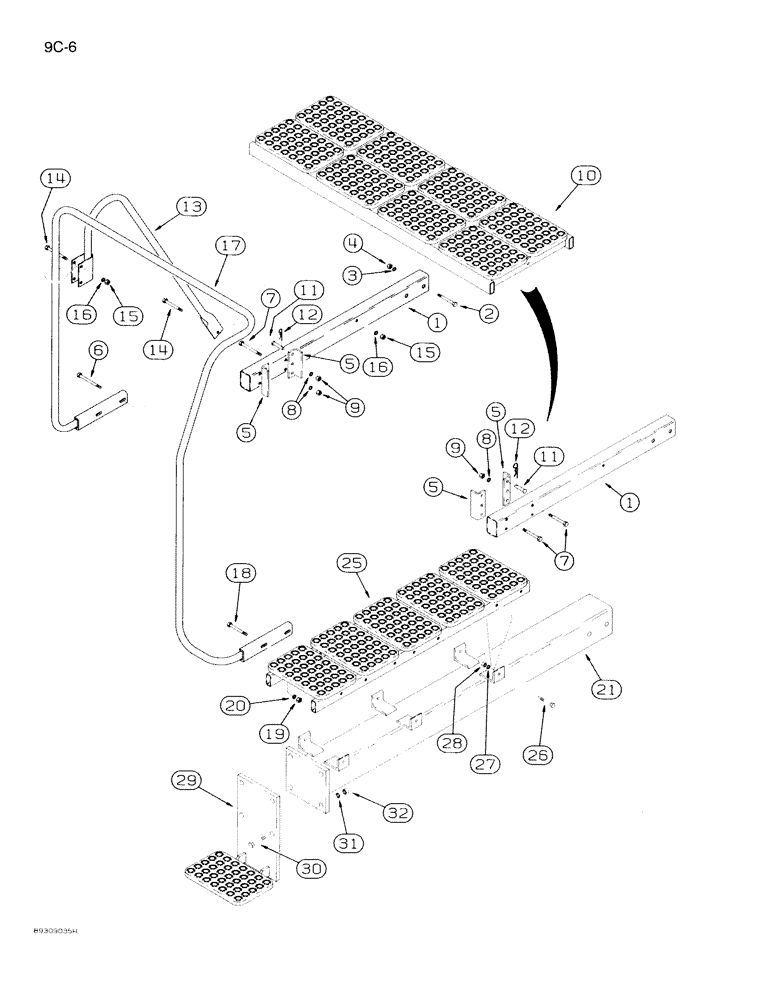

Запчасти Case IH 950 (9C-06) - PLATFORM AND STEPS, CENTER MODULE, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

128323A1

SUPPORT TUBE

TUBE - platform support

2шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, plated

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

128318A1

ANGLE

- platform

4шт.

6

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

8

492-11038

LOCK WASHER,3/8"

8шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

128315A1

PLATFORM

- hopper

1шт.

11

21949R1

HEADED PIN,7.94mm OD x 31.75mm L

PIN - clevis, 5/16 x 1-1/4 inch

2шт.

12

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

13

113416A1

RAIL ASSY.

HANDRAIL - side support

1шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

492-11038

LOCK WASHER,3/8"

3шт.

17

128313A1

RAIL ASSY.

HANDRAIL - platform

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

128322A1

TUBE,800 mm Length

- walkway support

1шт.

22

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 inch NC x 6 inch

2шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

128314A1

PLATFORM

- walkway

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

27

492-11038

LOCK WASHER,3/8"

6шт.

28

425-106

NUT,3/8"-16, Cl 5

6шт.

29

125675A1

STEP

- walkway

1шт.

30

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

425-1010

NUT,5/8"-11, G5

4шт.
