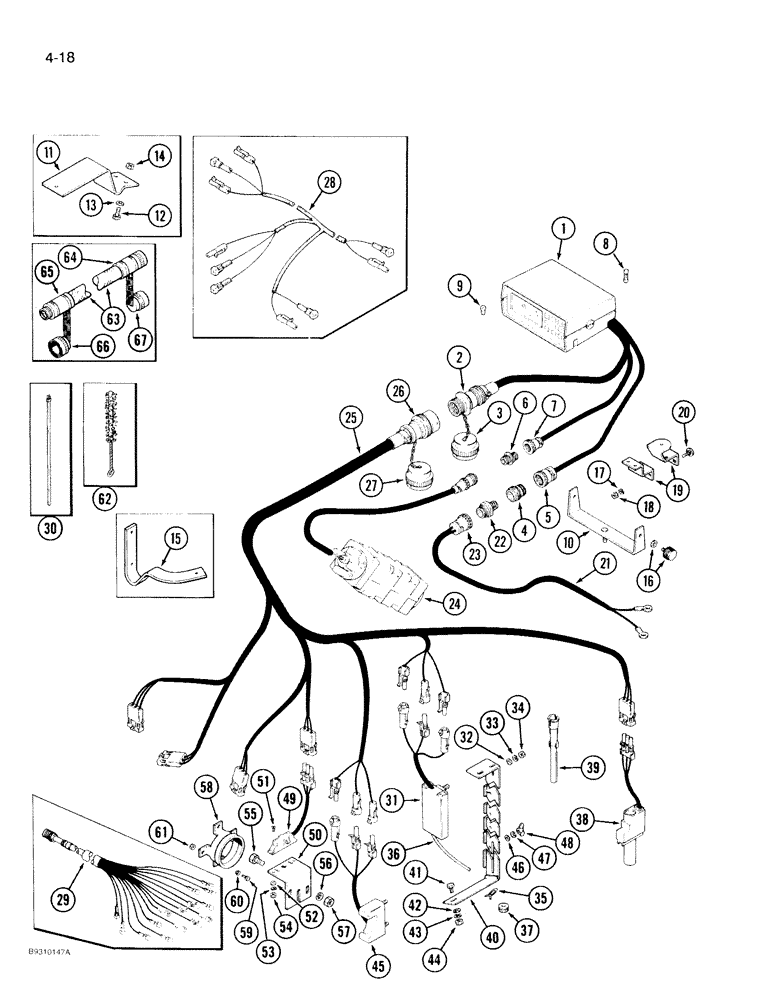

Справочник запчастей Case IH 950 (4-18) - EARLY RISER MONITOR SYSTEM, ALL RIGID, VERTICAL AND FRONT FOLD PLANTERS (04) - ELECTRICAL SYSTEMS со схемами

1

1935062C2

REMAN-ELECT GAUGE

MONITOR - Early Riser (Remanufactured)

1шт.

1

1935063C2

CORE-MONITOR

RETURN NUMBER - monitor (Use this number to return core for credit)

1шт.

1

1336000C2

CONTROL

MONITOR ASSEMBLY - Early Riser (New)

1шт.

Ref. 1 P/N 1336000C2 Monitor, per call to Dickey John, the fuse cap holder is NSS, however vendor was willing to ship to our dlr 2383215-A 2 of these items at no chage

1шт.

2

225337C1

ELEC CONNECTOR,20 - 22

CONNECTOR - electrical, type LV

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

3

245041C1

CAP

- electrical connector, type EC

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

4

225165C1

ELEC CONNECTOR

CONNECTOR - electrical, type GQ

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

5

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

6

1994740C1

ELEC CONNECTOR,Female, 4 Pin

CONNECTOR - electrical, type MD

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

7

1994741C1

CONTACT HOUSING

CLAMP - cable, type MC

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

8

3118918R1

FUSE

- 5 ampere

2шт.

9

D71346

TAIL LAMP,12V

BULB - light, No. 168

2шт.

10

1261523C91

BRACKET

- mounting

1шт.

11

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (J I Case Tractor)

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1960456C1

BRACKET

- mounting (5100, 5200, 7100 and 7200 Series Tractors)

1шт.

15a

60-6821T1

SUPPORT

BRACKET - mounting (9200 Series Tractors)

1шт.

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

195-102

WASHER,1/4"

- flat, 5/16 x 47/64 x 3/64 inch

2шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

2шт.

16

1336002C1

KNOB

KIT - knob (Includes 2 knobs and 2 washers)

1шт.

17

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

18

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

19

1261522C91

BRACKET, SUPPORTING

BRACKET - set, mounting (88 Series Tractors)

1шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

21

1336001C2

CABLE

HARNESS - battery

1шт.

22

225362C1

TERMINAL CONNECTOR

CONNECTOR - electrical, type ME

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

23

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

24

97576C1

SENSOR

- radar, true ground speed (Machinery Item)

1шт.

Ref #24 - A177090 Y Cable for True Ground Speed Magnums 04/19/96

1шт.

Ref #24 - 1983601C1 Y Cable for True Ground Speed Maxxums 04/19/96

1шт.

24

BN95030AR

SENSOR

950 CASE IH TRAILING PLANTER, radar, true ground speed (Machinery Item) (11/93-)

1шт.

24

BN95030AC

CORE-SENSOR

Return Number

1шт.

25

1336008C2

HARNESS

- monitor (4 row)

1шт.

25

1336009C2

HARNESS

- monitor (6 row)

1шт.

25

1336010C3

HARNESS

- monitor (8 row)

1шт.

25

1336011C3

HARNESS

- monitor (12 row narrow - vertical fold)

1шт.

25

119769A1

HARNESS

- monitor (12 row narrow - front fold)

1шт.

25

115130A1

HARNESS

- monitor (16 row narrow - front fold)

1шт.

25

119771A1

HARNESS

- monitor, center (24 row narrow - front fold)

1шт.

26

225336C1

ELEC CONNECTOR,Male, 35 Pin

CONNECTOR - electrical, type LU

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

27

245041C1

CAP

- electrical connector, type EC

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

28

1336016C2

HARNESS

- monitor extension (12 row narrow - vertical fold)

2шт.

29

126191A1

HARNESS

- monitor extension, left-hand wing (24 row narrow)

1шт.

29

126192A1

HARNESS

- monitor extension, right-hand wing (24 row narrow)

1шт.

30

217285C1

STRAP

- retaining, 4 inch long

1шт.

30

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining, 7 inch long

1шт.

30

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

1шт.

1336005C2

PACKAGE

KIT - sensor, air pressure (Includes Ref. 31 - 37)

1-3шт.

31

NSS

NOT SOLD SEPARAT

SENSOR - air pressure (Order 1336005C2)

1шт.

32

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

35

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP - hose retaining

2шт.

36

1336007C1

AIR HOSE,0.13" ID x 36.00"

1шт.

37

1336026C1

GROMMET

- air hose

1шт.

38

1978894C1

SENSOR

- seed, Hi-Rate

1шт.

39

72902C1

TUBE

- seed, beet (Set of 2)

1шт.

40

1336021C1

BRACKET

- hopper level (4, 6 and 8 row)

1шт.

40

1336021C1

BRACKET

- hopper level (12 and 16 row narrow)

2шт.

40

124878A1

BRACKET

- hopper level (24 row narrow)

3шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

42

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

1336023C2

SENSOR

- hopper level

1шт.

46

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

48

129-900

WING NUT,Locking, #10-32

NUT - wing, No. 10-32

2шт.

49

1336025C2

SENSOR

- press wheel distance

1шт.

50

1264112C2

BRACKET

- mounting

1шт.

51

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan head, No. 6-32 x 1/2 inch

2шт.

52

495-31016

WASHER,#6

4шт.

53

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external lock, No. 6

2шт.

54

225-14106

NUT,#6-32

2шт.

55

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

58

1264113C1

MAGNET

ASSEMBLY - sensor

1шт.

59

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

60

1264253C91

SET OF WASHERS

- step (Set of 10)

4шт.

61

9635082

NUT,5/16" - 18, Gr 5

4шт.

62

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

63

1336017C2

HARNESS

CABLE - extension, 180 inch long (Used with large 4 wheel drive tractor)

1шт.

64

225336C1

ELEC CONNECTOR,Male, 35 Pin

CONNECTOR - electrical, type LU

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

65

225337C1

ELEC CONNECTOR,20 - 22

CONNECTOR - electrical, type LV

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

66

245041C1

CAP

- electrical connector, type EC

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

67

245043C1

CAP

- electrical connector, type EB

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

ZJI1400004

TOOL KIT

HARNESS REPAIR KIT, Includes Ref. 2 -7, 22, 23, 26, 27 and 64 - 67

1шт.

Запчасти Case IH 950 (4-18) - EARLY RISER MONITOR SYSTEM, ALL RIGID, VERTICAL AND FRONT FOLD PLANTERS (04) - ELECTRICAL SYSTEMS
