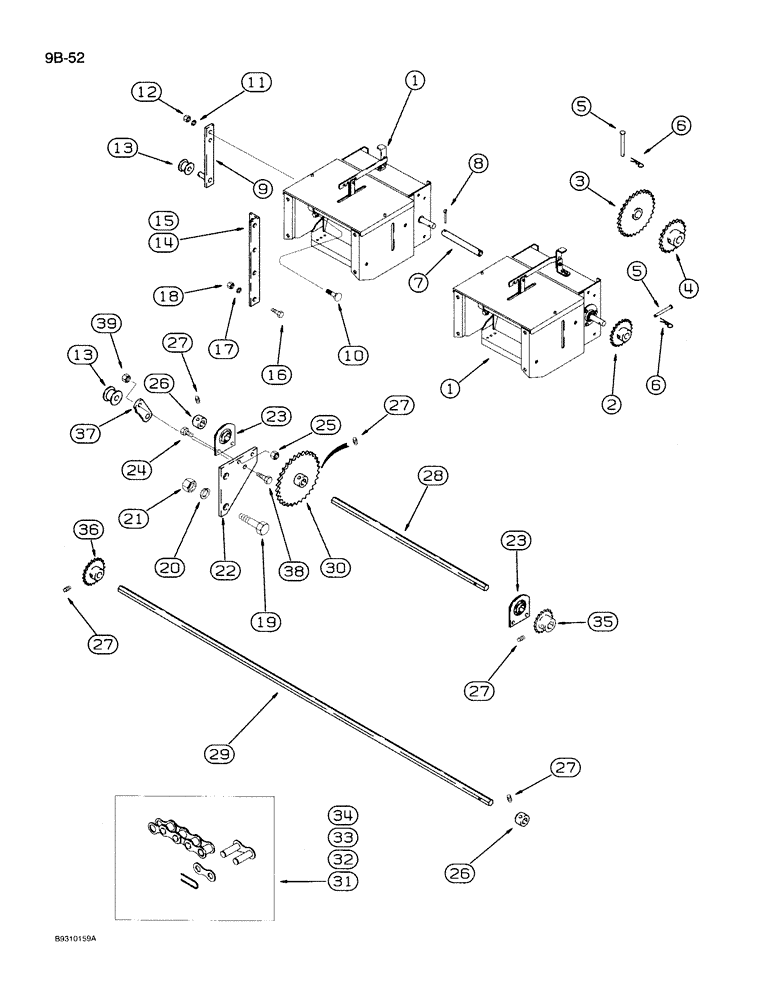

Запчасти Case IH 950 (9B-52) - LIQUID FERTILIZER DRIVE, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PUMP - squeeze, see page 9F-11 and 9F-13 for correct assembly and parts list

1шт.

2

1250746C1

SPROCKET

- 24 tooth

1шт.

3

1254150C1

SPROCKET

- 30 tooth

1шт.

4

1254149C1

SPROCKET

- 21 tooth

1шт.

5

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN - headed, 1/4 x 1-7/8 inch

4шт.

6

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Quick attach.

2шт.

7

128178A1

COUPLING

CONNECTOR - squeeze pump, 12 row narrow

1шт.

7

116147A1

COUPLING

CONNECTOR - squeeze pump, 16 row narrow

1шт.

8

432-1216

COTTER PIN,3/16" x 1"

1шт.

9

133917A1

FRONT IDLER

BRACKET - idler

1шт.

10

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

14

113501A1

ANGLE

BRACKET - mounting, Serial Range: pump-frame

3-4шт.

15

128171A1

ANGLE

BRACKET - mounting, pump to frame, 12 row

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

16шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

19

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

22

116788A1

BRACKET

- liquid fertilizer drive mounting

1шт.

23

102724A1

BALL BEARING

HANGER - bearing

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

141572C2

COLLAR

HUB - sprocket

2шт.

27

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

10шт.

28

90841C1

SHAFT

- primary output, 27-9/16 inch long, idler

1шт.

29

1254215C1

BAR

SHAFT - drive, 153 inch long, center

1шт.

30

1254152C2

SPROCKET

- fertilizer drive, 30 tooth

1шт.

31

117973A1

CHAIN (AG)

CHAIN - No. 2040, liquid fertilizer drive, upper, use one 242-138 connecting link and one 242-178 offset link and 43 links from 569088R91 bulk chain, shown below

1шт.

32

116789A1

CHAIN (AG)

CHAIN - No. 2040, liquid fertilizer drive, lower, use one 242-138 connecting link and one 242-178 offset link and 27 links from 569088R91 bulk chain, shown below

1шт.

33

242-138

LINK,7.92mm Pitch

LINK - connecting

1шт.

34

242-178

LINK,25.4mm Pitch

LINK - offset

1шт.

35

110997A1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

36

110996A1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

37

113509A1

FRONT IDLER

IDLER - squeeze pump

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

569088R91

CHAIN (AG)

CHAIN - No. 2040, 10 foot roll

1шт.
