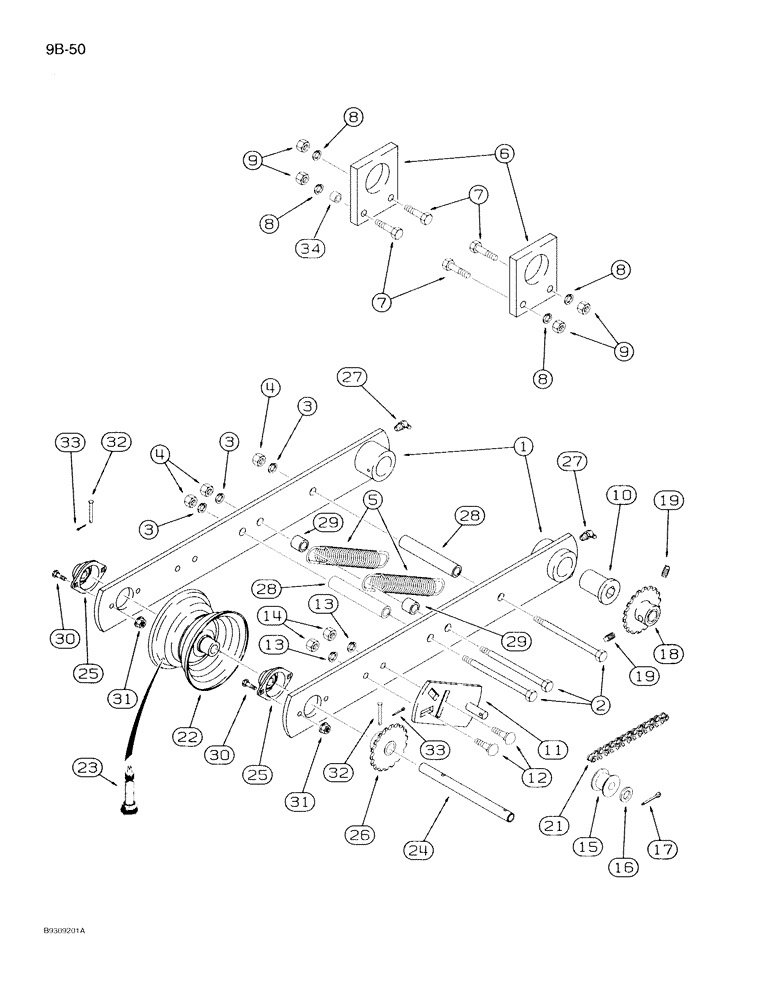

Запчасти Case IH 950 (9B-50) - LIQUID FERTILIZER DRIVE TRACTION WHEEL, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

110793A1

RAIL ASSY.

RAIL - traction drive wheel

2шт.

2

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

3шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

425-1010

NUT,5/8"-11, G5

3шт.

5

147425C5

SPRING

- press wheel

2шт.

6

113518A1

PLATE

- pivot

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

90335C2

BUSHING

- drive shaft

1шт.

11

96140C2

LARGE PLATE

PLATE - drive wheel idler

1шт.

12

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

16

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

17

432-1216

COTTER PIN,3/16" x 1"

1шт.

18

110996A1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

19

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch

2шт.

20

111157A1

CHAIN (AG)

CHAIN ASSEMBLY - traction drive wheel, No. 2040, use one 242-178 connecting link,item 21, and 63 links from 569088R91 bulk chain, see below

1шт.

21

242-178

LINK,25.4mm Pitch

LINK - connecting, drive wheel chain, No. 2040

1шт.

22

111155A1

RIM

WHEEL - 6 x 3.50 (Use with 13 x 5.00-6 2 PR or 4 PR tire)

1шт.

23

387841R91

VALVE

- tire inflation

1шт.

24

111158A1

BAR

SHAFT - wheel

1шт.

25

111230A1

FLANGED BEARING

- wheel shaft

2шт.

26

111186A1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

27

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 self tap x 13/16 inch

2шт.

28

113826A1

SPACER

- 5/8 inch x 150 mm

2шт.

29

276380R1

SPACER,3/4" X-Strng Pipe x 3/4"

- 5/8 inch x 19 mm

2шт.

30

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

32

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - clevis, 1/4 x 1-7/8 inch

2шт.

33

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

34

137512C2

BUSHING

SPACER - rail pivot, if used

2шт.

569088R91

CHAIN (AG)

CHAIN - No. 2040, 10 foot roll

1шт.
