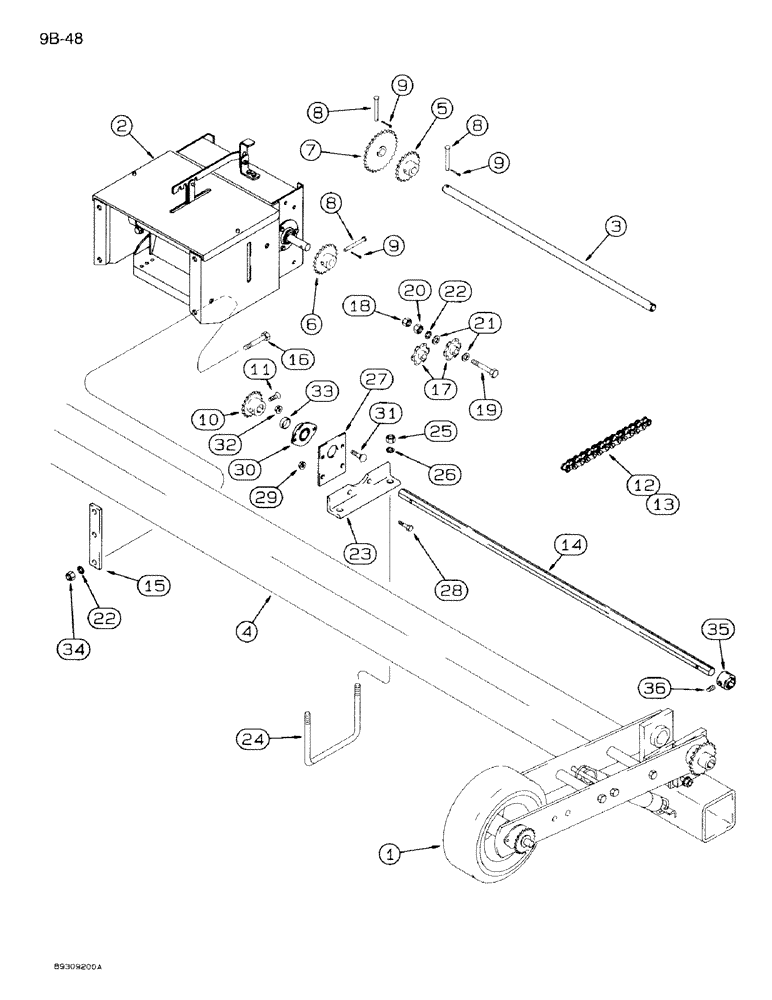

Запчасти Case IH 950 (9B-48) - LIQUID FERTILIZER DRIVE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

WHEEL ASSEMBLY - drive traction, not serviced separately, see page 9B-51 for component parts

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - squeeze, see pages 9F-11 and 9F-13 for correct assembly and parts list

1-2шт.

3

111405A1

COUPLING

COUPLER - squeeze pump, 12 row narrow

1шт.

4

109586A1

FRAME ASSY

FRAME - liquid fertilizer cart

1шт.

5

1254149C1

SPROCKET

- 21 tooth

1шт.

6

1250746C1

SPROCKET

- 24 tooth

1шт.

7

1254150C1

SPROCKET

- 30 tooth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - clevis, 1/4 x 1-7/8 inch, two used with item 3

4-6шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , 2 Used with item 3 1/8" x 3/4"

4-6шт.

10

110997A1

SPROCKET ASSY.

SPROCKET - 18 tooth

1шт.

11

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

2шт.

12

111156A1

CHAIN (AG)

CHAIN ASSEMBLY - roller, No. 2040, use one 242-138 connecting link, item 13, and 47 links from 569088R91 bulk chain, see below

1шт.

13

242-138

LINK,7.92mm Pitch

LINK - connecting, pump drive chain, No. 2040

1шт.

14

96086C2

SHAFT

- drive, liquid fertilizer primary input

1шт.

15

1261296C2

PLATE

- backup

4шт.

16

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

8шт.

17

472344R3

SPROCKET

- idler

2шт.

18

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

19

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT - hex jam, 1/2 inch NC

1шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

137482C3

ANGLE

- bearing

1шт.

24

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 NC x 5 x 5 inch

1шт.

25

425-1010

NUT,5/8"-11, G5

2шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

1254171C1

PLATE

- bearing support

1шт.

28

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

134158C91

FLANGED BEARING

- ball, 7/8 inch hex, flanged

1шт.

31

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

33

1277812C1

SPACER

- bearing, if used

1шт.

34

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

8шт.

35

141572C2

COLLAR

HUB - 7/8 hex bore, input bar

2шт.

36

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

4шт.

569088R91

CHAIN (AG)

CHAIN - roller, No. 2040, 10 foot roll

1шт.
