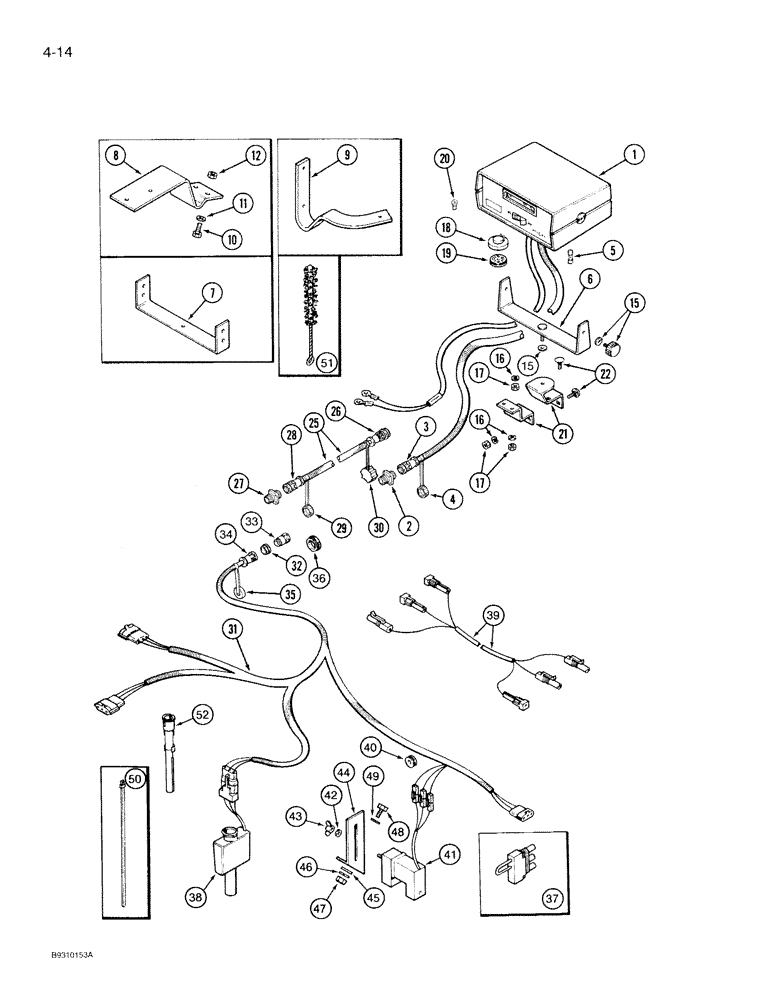

Запчасти Case IH 950 (4-14) - SEED FLOW II MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

245821C92

CONTROL MONITOR

MONITOR - Seed Flow II

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster Seed Flow II

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

2

225138C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - electrical, type GV

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

3

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

4

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

5

223-38

FUSE,3 Amp, Type 3AG

FUSE - 3 ampere

1шт.

6

1261523C91

BRACKET

BRACKET - mounting, if used

1шт.

7

1267828C1

BRACKET

BRACKET - mounting, if used

1шт.

8

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (J I Case Tractor)

1шт.

9

1960456C1

BRACKET

BRACKET - mounting (5100,5200, 7100 and 7200 Series Tractors)

1шт.

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

BOLT - hex, 1/4 NC x 2-3/4 inch

2шт.

195-102

WASHER,1/4"

WASHER - flat, 5/16 x 47/64 x 3/64 inch

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

11

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

15

1261524C91

REPAIR KIT

KIT - knob, bracket (Includes 2 knobs and 3 washers)

1шт.

16

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

17

325-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

18

1261548C1

ALARM

ALARM - monitor

1шт.

19

1261549C1

DAMPER

DAMPER - alarm

1шт.

20

58554C1

BULB,C2F, #1892, 14V

BULB - light, No. 1892

1шт.

21

1261522C91

BRACKET, SUPPORTING

KIT - bracket, mounting (88 Series Tractors)

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

25

133896C94

HARNESS

CABLE - extension, 180 inch long (See Note)

1шт.

26

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

27

225138C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - electrical, type GV

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

28

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

29

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

30

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

31

245402C2

HARNESS

HARNESS - monitor (4 row)

1шт.

31

245403C2

HARNESS

HARNESS - monitor (6 row)

1шт.

31

245404C3

HARNESS

HARNESS - monitor (8 row)

1шт.

31

245405C3

HARNESS

HARNESS - monitor (12 row narrow - vertical fold)

1шт.

31

119768A1

HARNESS

HARNESS - monitor (12 row narrow - front fold)

1шт.

31

115131A1

HARNESS

HARNESS - monitor (16 row narrow - front fold)

1шт.

32

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

33

225338C1

ELEC CONNECTOR,Male, Pin

CONNECTOR - electrical, type MB

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

34

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

35

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Part of Harness Repair Kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

36

149459C91

SEAL PACKAGE

KIT - ring, coupling (Set of 10)

1шт.

37

245617C1

CONNECTOR,ELECTRIC

PLUG - cable shorting

2шт.

38

245598C2

SENSOR

SENSOR - seed

1шт.

39

245521C2

HARNESS

HARNESS - hopper extension (All except rigid)

1шт.

40

1279331C1

GROMMET

GROMMET - wiring

1шт.

41

245606C2

SENSOR

SENSOR - hopper

1шт.

42

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

WASHER - flat, 3/8 x 3/4 x 1/16 inch

1шт.

43

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

1шт.

44

113432C1

BRACKET

BRACKET - hopper sensor

1шт.

45

495-81120

WASHER,.344" x 1 1/4" x .120"

WASHER - flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

49

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

WASHER - flat, 11/32 x 1 x 3/64 inch

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - retaining, 7 inch long

1шт.

50

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - retaining, 14 inch long

1шт.

51

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH - cleaning, sensor

1шт.

52

72902C1

TUBE

TUBE - seed, beet (Set of 2), if used

1шт.

ZJI1400004

TOOL KIT

HARNESS REPAIR KIT, Includes Ref. 2 - 4, 26 - 30 and 32 - 35

1шт.
