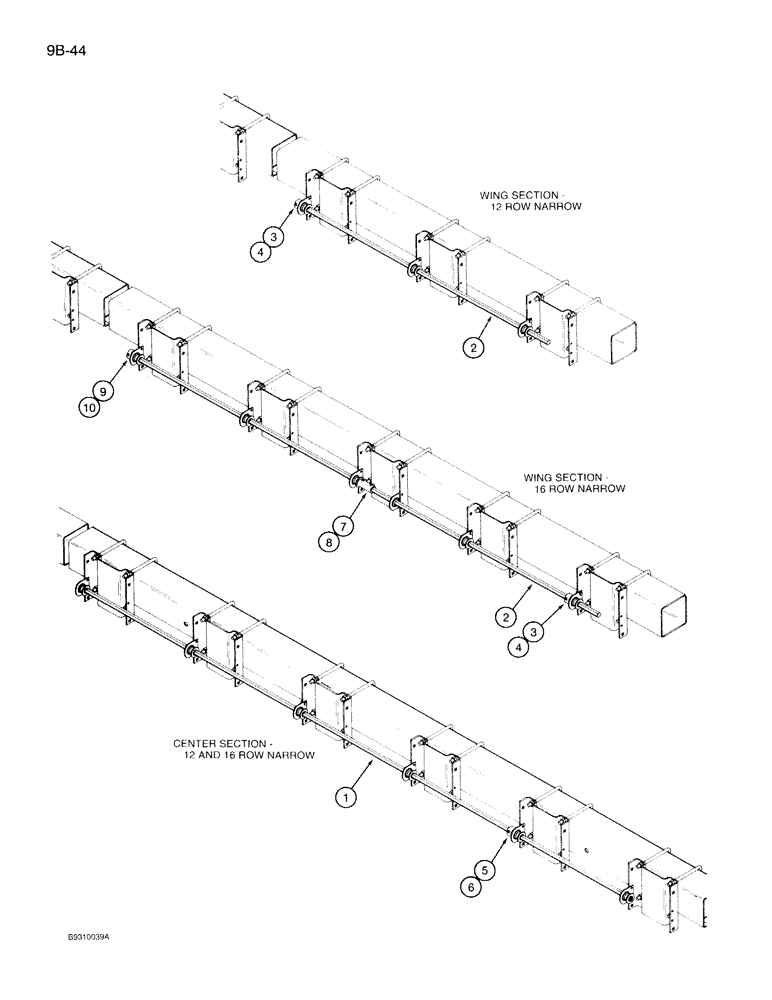

Запчасти Case IH 950 (9B-44) - DRY FERTILIZER AND GRANULAR CHEMICAL DRIVES, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1254215C1

BAR

SHAFT - drive, 153 inches long, center

1шт.

2

117008A1

SHAFT

- drive, 67 inches long, wing

2-4шт.

3

141572C2

COLLAR

HUB - sprocket, wing

2шт.

4

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

4шт.

5

141572C2

COLLAR

HUB - sprocket, center

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

2шт.

7

1254283C1

COUPLING

COUPLER - 7/8 inch hex shaft, used with granular chemical attachment, 16 row narrow only

2шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point, used with granular chemical attachment, 16 row narrow only

8шт.

9

141572C2

COLLAR

HUB - sprocket, used with dry fertilizer attachment, 16 row narrow only

2шт.

10

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch, used with dry fertilizer attachment, 16 row narrow only

4шт.

11

102724A1

BALL BEARING

HANGER - bearing, not shown, 16 row narrow, LH wing only

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Not shown, 16 row narrow, LH wing only

2шт.

13

425-106

NUT,3/8"-16, Cl 5

Not shown, 16 row narrow, LH wing only 3/8"-16, G5

2шт.
