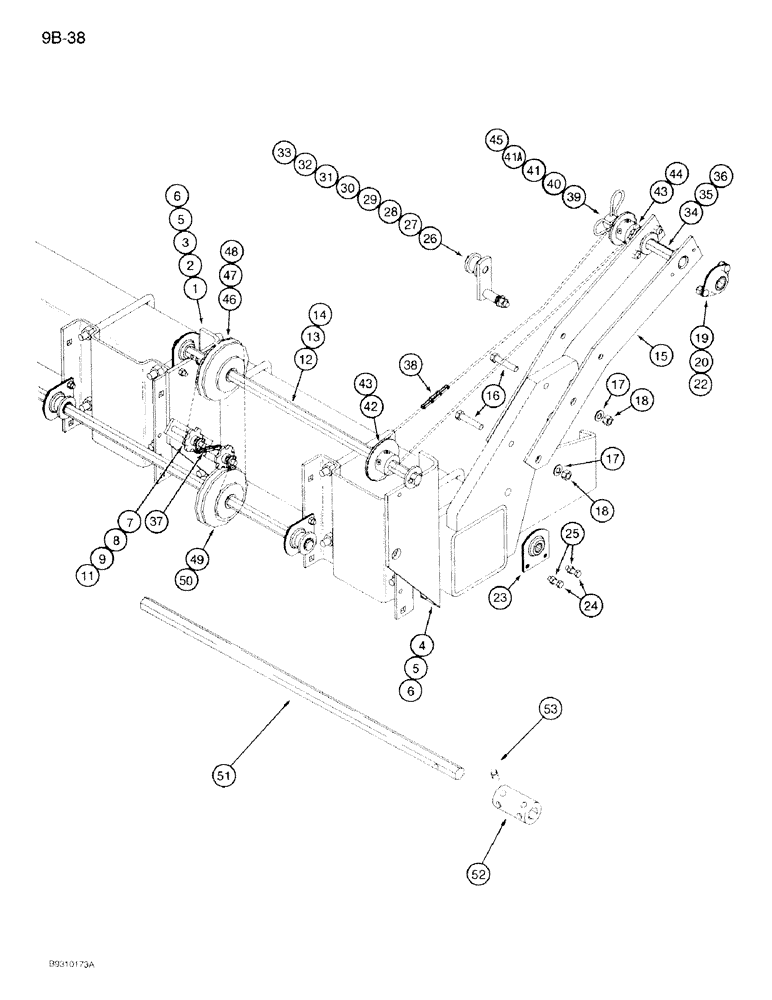

Запчасти Case IH 950 (9B-38) - DRY FERTILIZER DRIVE, WING FRAME, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

116935A2

MOUNTING PARTS

BRACKET - dry fertilizer drive, right-hand wing

1шт.

2

116936A2

MOUNTING PARTS

BRACKET - dry fertilizer drive, left-hand wing

1шт.

3

1250813C1

U-BOLT

- 5/8 inch

2-4шт.

4

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch, 16 Row Narrow only

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 16 Row Narrow only 5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

141074C2

ARM

- chain tightener

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

472344R3

SPROCKET

- idler, 6T

4шт.

11

432-1216

COTTER PIN,3/16" x 1"

4шт.

12

117083A1

BAR

SHAFT - drive, wing bottom, 30 inches long, 16 Row Narrow only

2шт.

12

124445A2

BAR

SHAFT - drive, wing bottom, 15 inches long, 12 Row Narrow only

2шт.

13

438-32024

PIN,5/16" x 1 1/2", Coiled

4шт.

14

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

2шт.

15

113676A1

BRACKET

- upper chain

4шт.

16

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

19

134158C91

FLANGED BEARING

- shaft

4шт.

20

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

8шт.

22

231-5146

FLANGE NUT,3/8"-16

8шт.

23

102724A1

BALL BEARING

HANGER - bearing

5шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

25

425-106

NUT,3/8"-16, Cl 5

10шт.

26

113509A1

FRONT IDLER

IDLER - squeeze pump

2шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

30

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

31

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

32

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

33

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

- 1/2 x 1-1/2 inch

2шт.

34

117084A2

BAR

JACKSHAFT - 7 inches long

2шт.

35

438-32024

PIN,5/16" x 1 1/2", Coiled

4шт.

36

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

4шт.

37

117085A1

CHAIN (AG)

CHAIN - shaft to idler, not available for service (Use 49 links from 569088R91 bulk roll and 1 connecting link 242-138)

2шт.

38

117086A1

CHAIN (AG)

CHAIN - idler to hopper, not available for service (Use 73 links from 569088R91 bulk chain and 1 connecting link 242-138 and 1 offset link 242-178)

2шт.

39

141771C1

SPACER

COUPLING - outer auger shaft

2шт.

40

114349A1

PIPE

COUPLING - auger shaft (2 to 3 outlet)

2шт.

41

520177R1

PIN

- hair, 3/16 inch

6шт.

41a

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

42

110996A1

SPROCKET ASSY.

SPROCKET - 24T

2шт.

43

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

4шт.

44

110997A1

SPROCKET ASSY.

SPROCKET - 18T

2шт.

45

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

4шт.

46

1267911C1

SPROCKET

- triple, 30T,24T and 16T

2шт.

47

439-1436

HEADED PIN,1/4" x 2 1/4"

PIN - clevis, 1/4 x 2-1/4 inch

2шт.

48

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Quick attach.

2шт.

49

141063C2

SPROCKET

triple, 36T, 34T and 20T, fertilizer drive

2шт.

50

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

4шт.

51

130132A1

SHAFT

- drive, 26 inches long, 12 Row Narrow only

2шт.

52

1254283C1

COUPLING

COUPLER - 7/8 inch hex shaft, 12 Row Narrow only

2шт.

53

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point, 12 Row Narrow only

4шт.
