Запчасти Case IH 950 (9B-36) - DRY FERTILIZER DRIVE, CENTER FRAME, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

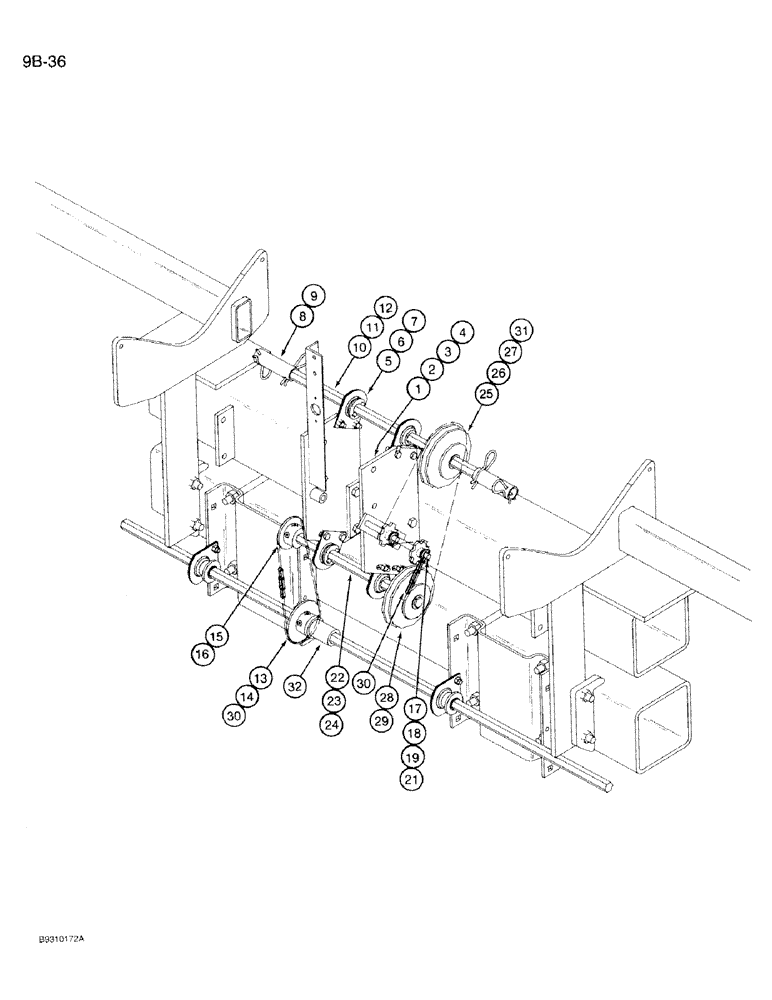

Схема запчастей Case IH 950 - (9B-36) - DRY FERTILIZER DRIVE, CENTER FRAME, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS
23
13
18
7
11
8
24
27
21
25
16
1
14
32
26
30
10
2
5
28
4
31
30
15
12
29
6
17
9
19
3
22

Артикул

Название

Примечание

Количество

1

116939A1

BRACKET

- center drive

2шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

102724A1

BALL BEARING

HANGER - bearing

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

425-106

NUT,3/8"-16, Cl 5

8шт.

8

141455C1

TUBE,33.4 mm OD, 111 mm Length

CONNECTOR - dry fertilizer shaft

2шт.

9

520177R1

PIN

- hair, 3/16 inch

4шт.

10

116477A2

SHAFT

- auger drive, 20 inches long

1шт.

11

438-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

12

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

2шт.

13

110996A1

SPROCKET ASSY.

SPROCKET - 24T

1шт.

14

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

2шт.

15

110997A1

SPROCKET ASSY.

SPROCKET - 18T

1шт.

16

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

2шт.

17

141074C2

ARM

- chain tightener

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

472344R3

SPROCKET

- idler

2шт.

21

432-1216

COTTER PIN,3/16" x 1"

2шт.

22

116478A1

SHAFT

JACKSHAFT - dry fertilizer drive, 16 inches long

1шт.

23

438-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

24

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

2шт.

25

1267911C1

SPROCKET

- triple, 30T, 24T and 16T

1шт.

26

439-1436

HEADED PIN,1/4" x 2 1/4"

PIN - clevis, 1/4 x 2-1/4 inch

1шт.

27

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Quick attach.

1шт.

28

141063C2

SPROCKET

-triple, 36T, 34T and 20T, fertilizer drive

1шт.

29

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

2шт.

30

117972A1

CHAIN (AG)

CHAIN ASSEMBLY - fertilizer drive, lower, not available for service (Use 30 links from 569088R91 bulk chain, 1 connecting link 242-138 and 1 offset link 242-178)

1шт.

31

117973A1

CHAIN (AG)

CHAIN ASEMBLY - fertilizer drive, upper, not available for service (Use 43 links from 569088R91 bulk chain, 1 connecting link 242-138 and 1 offset link 242-178)

1шт.

32

90335C2

BUSHING

- drive shaft

1шт.

Выбрано товаров: 31
