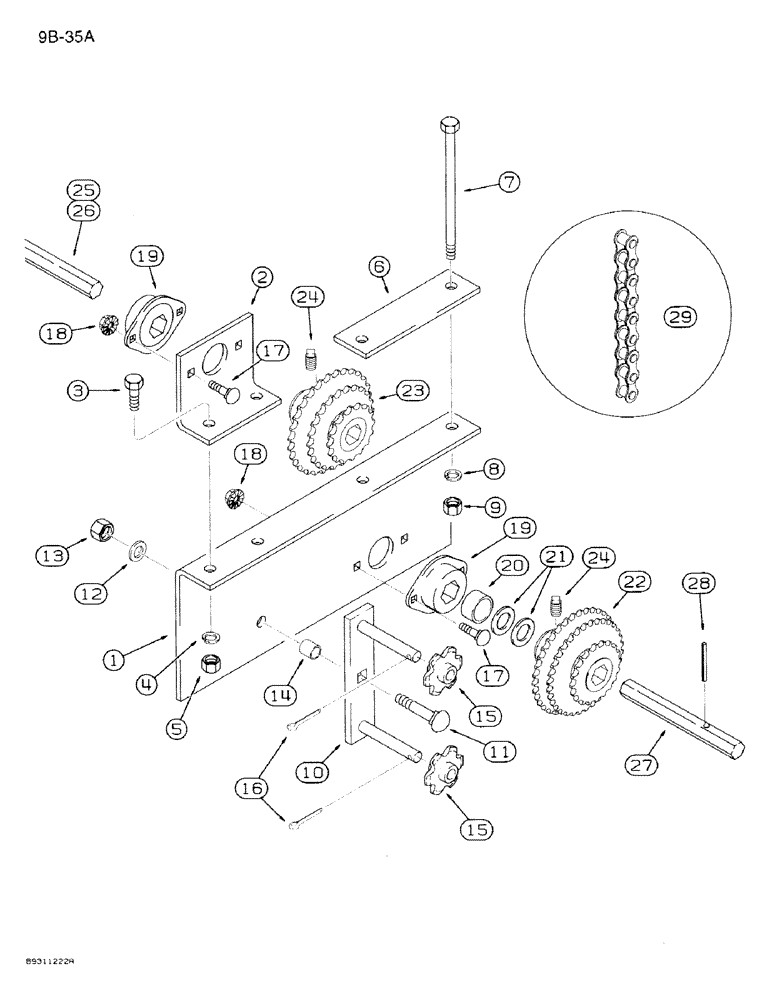

Запчасти Case IH 950 (9B-35A) - DRY FERTILIZER DRIVE, LOWER DRIVE AND SUPPORTS, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

108519A3

BRACKET

- support, fertilizer drive bearing

2шт.

2

135400A1

BRACKET

SUPPORT - bearing, outer wing

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

109025A1

BAR

- mounting, Serial Range: bracket-frame

2шт.

7

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

135378A1

ARM ASSY.

ARM - chain tightener

2шт.

11

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

144812C2

SPACER

- tightener arm

2шт.

15

472344R3

SPROCKET

- idler, tightener arm

4шт.

16

432-1216

COTTER PIN,3/16" x 1"

4шт.

17

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

8шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

19

134158C91

FLANGED BEARING

- ball, 7/8 inch hex bore

4шт.

20

493933R1

SPACER,5/8" Tube x 1 7/16"

- tube, 5/8 x 1-7/16 inch

2шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

4шт.

22

141063C2

SPROCKET

- triple, fertilizer driver, 20T, 34T and 36T

2шт.

23

135377A1

SPROCKET ASSY.

SPROCKET - triple, shaft drive, 16T, 24T and 30T (Standard)

2шт.

23

141063C2

SPROCKET

- triple, shaft drive, 20T, 34T, and 36T (Optional)

2шт.

24

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

8шт.

25

135381A1

BAR

SHAFT - fertilizer drive, wing, 71-1/4 inch long (12 row narrow)

2шт.

26

135382A1

BAR

SHAFT - fertilizer drive, wing, 56-11/16 inch long (8 row wide)

2шт.

27

135384A1

BAR

SHAFT - main drive, wheel, 6-5/16 inch long

2шт.

28

438-31628

PIN,1/4" x 1 3/4", Coiled

2шт.

29

135380A2

CHAIN (AG)

CHAIN - fertilizer drive, lower, not available for service (Use 45 links from 569088R91 bulk roller chain 10 foot roll and 1 connecting link 242-138)

2шт.
