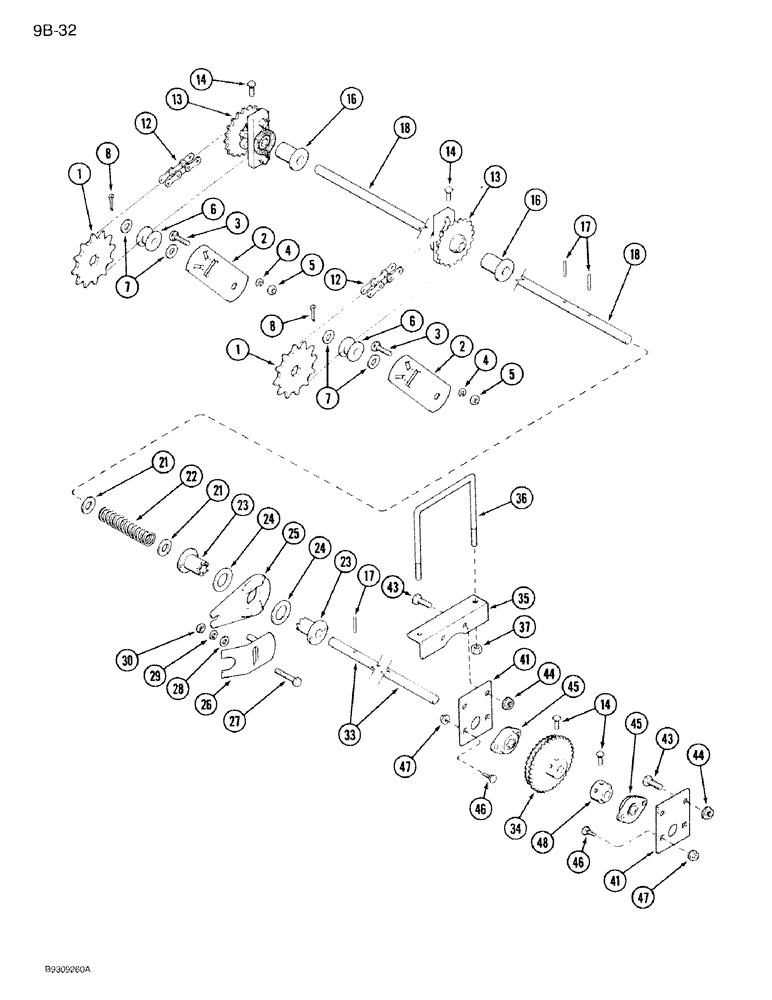

Запчасти Case IH 950 (9B-32) - PRIMARY FERTILIZER DRIVE, DRY AND LIQUID, 6 ROW WIDE -RIGID, 8 ROW NARROW, RIGID (09) - CHASSIS/ATTACHMENTS

1

1277737C1

SPROCKET

- wheel, 12 tooth

2шт.

2

96140C2

LARGE PLATE

PLATE - drive wheel idler

2шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

7

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

8

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

1277740C91

CHAIN (AG)

CHAIN ASSEMBLY - wheel drive (See Note)

2шт.

13

1277925C91

RATCHET

SPROCKET ASSEMBLY - left drive ratchet (See Page 9B-9)

1шт.

13a

1277926C91

PINION

SPROCKET ASSEMBLY - right drive ratchet (See Page 9B-9)

1шт.

14

28066R1

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch

4шт.

16

90335C2

BUSHING

- drive shaft

2шт.

17

19795R1

PIN,1/4" x 1 3/4", Coiled

- roll, 1/4 x 1-1/4 inch

4шт.

18

1986125C1

SHAFT

BAR - drive, hex, 7/8 x 45-11/32 inch (6 row wide)

1шт.

18

1986178C1

SHAFT

BAR - drive, hex, 7/8 x 66 inch (8 row narrow)

1шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

2шт.

22

1264302C1

SPRING

- clutch

1шт.

23

1264313C1

CLUTCH

- left driver, dry fertilizer drive

2шт.

23

1264314C1

CLUTCH

- right driver, liquid fertilizer drive

2шт.

24

1267994C1

WASHER

- flat, 1-21/32 x 2-1/4 x 7/64 inch

2шт.

25

90344C1

PLATE

- clutch throwout

1шт.

26

91245C1

SUPPORT

THROWOUT - clutch

1шт.

27

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

28

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

425-1010

NUT,5/8"-11, G5

hex lock 5/8"-11, G5

1шт.

33

90561C1

SHAFT

BAR - drive, hex, 7/8 x 23-5/8 inch, liquid fertilizer (6 row wide and 8 row narrow)

1шт.

33

90841C1

SHAFT

BAR - drive, hex, 7/8 x 27-9/16 inch, dry fertilizer (6 row wide)

1шт.

33

96046C1

SHAFT

BAR - drive, hex, 7/8 x 43-5/16 inch, dry fertilizer (8 row narrow)

1шт.

34

141063C2

SPROCKET

- triple, dry fertilizer drive, 20, 34 and 36 tooth (Shown)

1шт.

34

1254152C2

SPROCKET

- liquid fertilizer drive, 30 tooth

1шт.

35

137482C3

ANGLE

- bearing

1шт.

36

1250813C1

U-BOLT

- angle mounting

1шт.

37

425-1010

NUT,5/8"-11, G5

hex lock 5/8"-11, G5

2шт.

41

1254171C1

PLATE

- bearing support

2шт.

43

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

44

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

45

134158C91

FLANGED BEARING

- ball

2шт.

46

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

4шт.

48

141572C2

COLLAR

HUB - sprocket

1шт.
