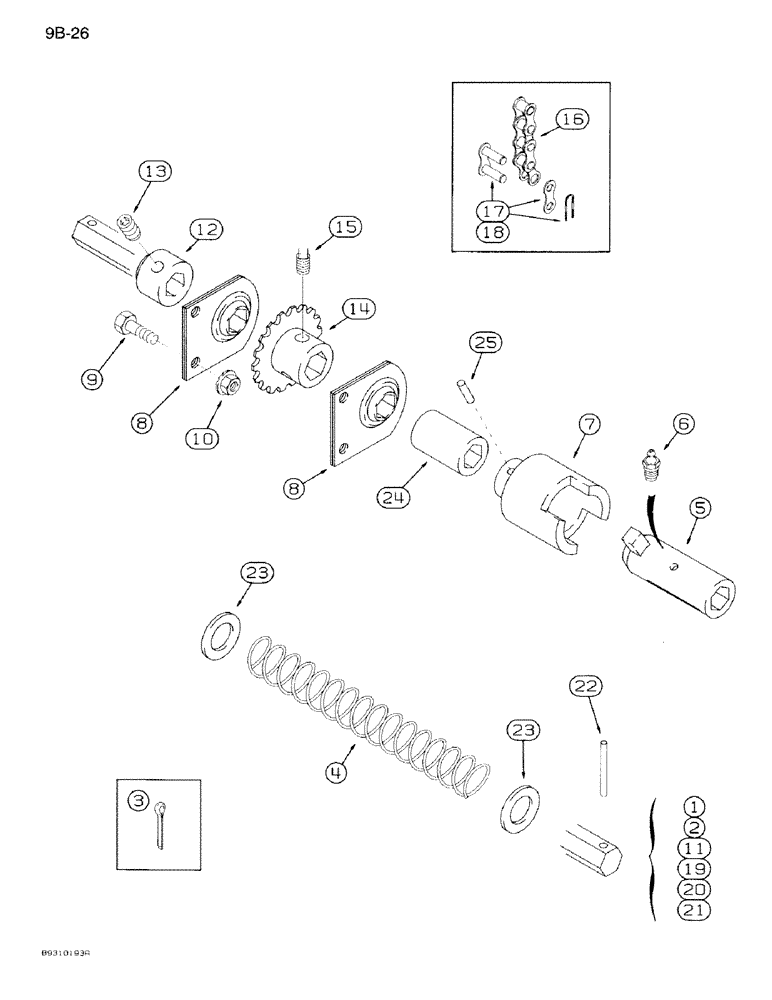

Запчасти Case IH 950 (9B-26) - SECONDARY SEED DRIVE, 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

108612A1

SHAFT

- drive, 39-3/8 inch, 1000 mm long, left-hand, outer

1шт.

2

108617A2

SHAFT

- drive, 34-7/8 inch, 885 mm long, left-hand, center

1шт.

3

32-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

4шт.

4

1264302C1

SPRING

- wing driver

2шт.

5

102602A2

BLOCK DRIVER

DRIVE - wing connector

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

7

102601A2

SOCKET

CONNECTOR - wing drive socket

2шт.

8

102724A1

BALL BEARING

HANGER - bearing

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

108615A1

SHAFT

- drive, 78-3/4 inch, 2000 mm long, left-hand, inner

1шт.

12

141572C2

COLLAR

HUB - sprocket

5шт.

13

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket, cup point, 1/2 NC x 1/2 inch

10шт.

14

103681A1

SPROCKET

- 18 tooth, module drive

2шт.

15

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

8шт.

16

1547686C1

CHAIN (AG)

CHAIN ASSEMBLY - drum drive, No. 40, use one 241-1314 connecting link, item 17, one 241-1714 offset link, item 18, and 111 links from 1790D bulk chain, see below

2шт.

17

241-1314

CHAIN LINK

LINK - connecting, drum drive chain, No. 40

1шт.

18

241-1714

CHAIN LINK

LINK - offset, drum drive chain, No. 40

1шт.

19

108614A1

SHAFT

- drive, 70-7/8 inch, 1800 mm long, right-hand, inner

1шт.

20

108616A2

SHAFT

- drive, 27-9/16 inch, 700 mm long, right-hand, center

1шт.

21

108613A1

SHAFT

- drive, 59-9/16 inch, 1500 mm long, right-hand, outer

1шт.

22

38-31628

PIN,1/4" x 1 3/4", Coiled

4шт.

23

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

4шт.

24

M24975

SPACER,1" Pipe x 2 3/8"

- sprocket, 1 x 2-3/8 inch

2шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

1790D

CHAIN (AG)

CHAIN - No. 40, 10 foot roll

1шт.
