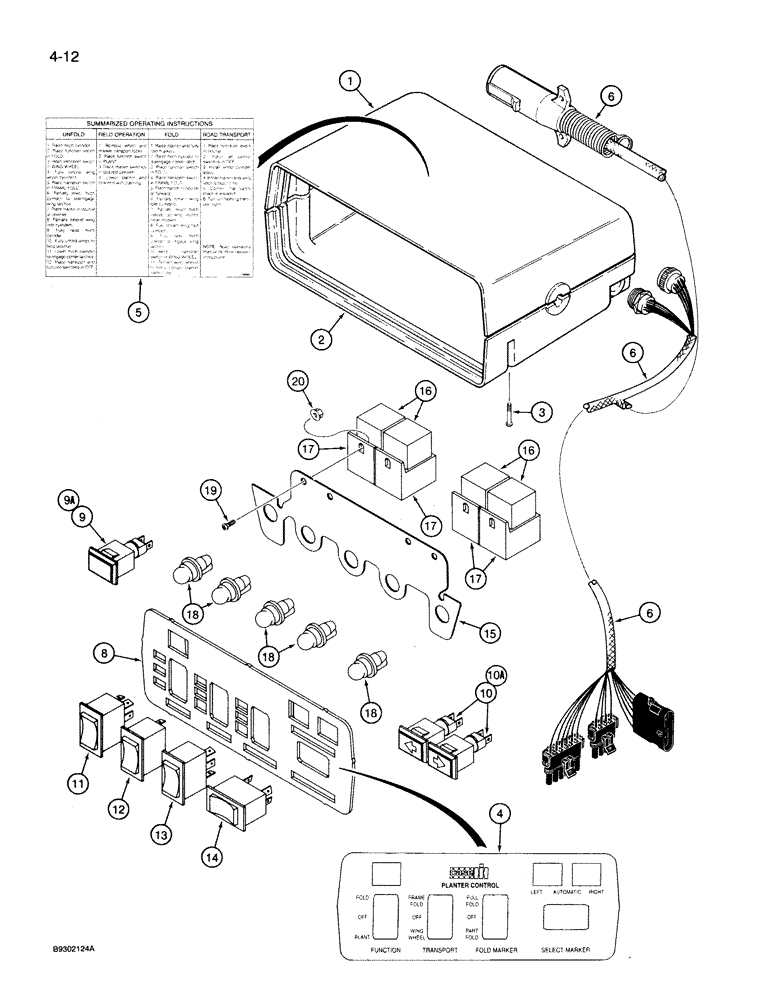

Запчасти Case IH 950 (4-12) - PLANTER CONTROL ASSEMBLY, 12, 16 AND 24 ROW NARROW, FRONT FOLD (04) - ELECTRICAL SYSTEMS

115513A1

CONTROL

ASSEMBLY - planter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control, top (Order 115513A1)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - control, bottom (Order 115513A1)

1шт.

3

440-10824

SCREW,Cross Pan Hd, #8-32 x 1 1/2"

- machine, pan head Phillips, No. 8 NC x 1-1/2 inch

3шт.

4

116823A1

DECAL

- face plate

1шт.

5

116909A1

DECAL

- operating instructions

1шт.

6

115511A2

HARNESS

- planter control

1шт.

7

121486A1

HARNESS

- control assembly, internal, not shown

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - switch mount

1шт.

9

119736A1

INDICATOR

- power on

1шт.

9a

26617R1

BULB,C2F, #168, 14V

- light, No. 168

1шт.

10

119737A1

INDICATOR

- arrow symbol

2шт.

10a

26617R1

BULB,C2F, #168, 14V

- light, No. 168

1шт.

11

245014C1

SWITCH

- rocker, function

1шт.

12

245855C1

SWITCH

- rocker, transport

1шт.

13

245014C1

SWITCH

- rocker, fold marker

1шт.

14

1964755C1

SWITCH

- rocker, select marker

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - lamp and relay mount

1шт.

16

146461C1

RELAY

- control

4шт.

17

245731C1

CONNECTOR, ELEC

BASE - relay mounting

4шт.

18

A14553

BULB

- light, No. 57

5шт.

19

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

21

113699A1

RECTIFIER

- in line, not shown, part of item 7

1шт.

22

NSS

NOT SOLD SEPARAT

CLAMP - planter control harness (Not shown)

1шт.

23

187-1041

SCREW,Hex Wash Hd, #8 x 3/8"

- self-tapping, hex washer head, No. 8 NC x 3/8 inch (Use to mount Ref. 22 clamp) (Not shown)

2шт.
