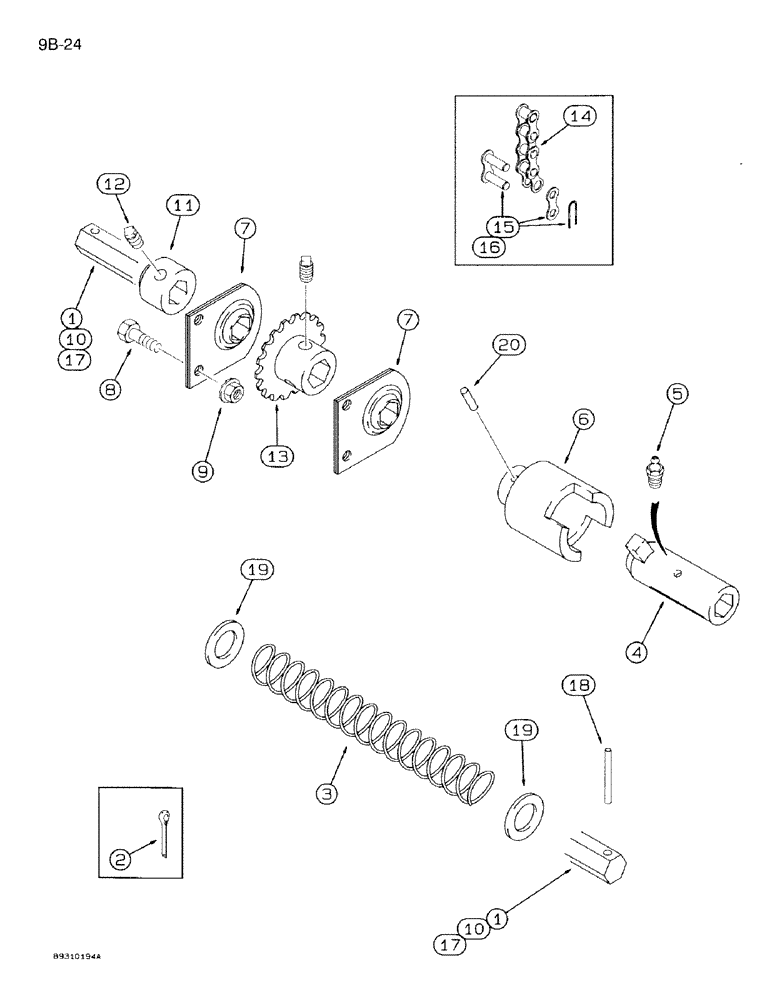

Запчасти Case IH 950 (9B-24) - SECONDARY SEED DRIVE, 8 ROW WIDE, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

133201A1

BAR

SHAFT - drive, 149-1/4 inch, 3790 mm long

1шт.

2

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

4шт.

3

1264302C1

SPRING

- wing driver

4шт.

4

102602A2

BLOCK DRIVER

DRIVE - wing connector

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

6

102601A2

SOCKET

CONNECTOR - wing drive socket

2шт.

7

102724A1

BALL BEARING

HANGER - bearing

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

135311A1

BAR

SHAFT - drive, 59-11/16 inch, 1515 mm long

1шт.

11

141572C2

COLLAR

HUB - sprocket

8шт.

12

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

18шт.

13

103681A1

SPROCKET

- 18 tooth, module drive

1шт.

14

1547686C1

CHAIN (AG)

CHAIN ASSEMBLY - drum drive, No. 40, use one 241-1314 connecting link, item 15, one 241-1714 offset link, item 16, and 111 links from 1790D bulk chain, see below

1шт.

15

241-1314

CHAIN LINK

LINK - connecting, drum drive chain, No. 40

1шт.

16

241-1714

CHAIN LINK

LINK - offset, drum drive chain, No. 40

1шт.

17

135310A2

BAR

SHAFT - drive, 70-7/8 inch, 1800 mm long

1шт.

18

38-31628

PIN,1/4" x 1 3/4", Coiled

4шт.

19

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

8шт.

20

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

4шт.

1790D

CHAIN (AG)

CHAIN - No. 40, 10 foot roll

1шт.
