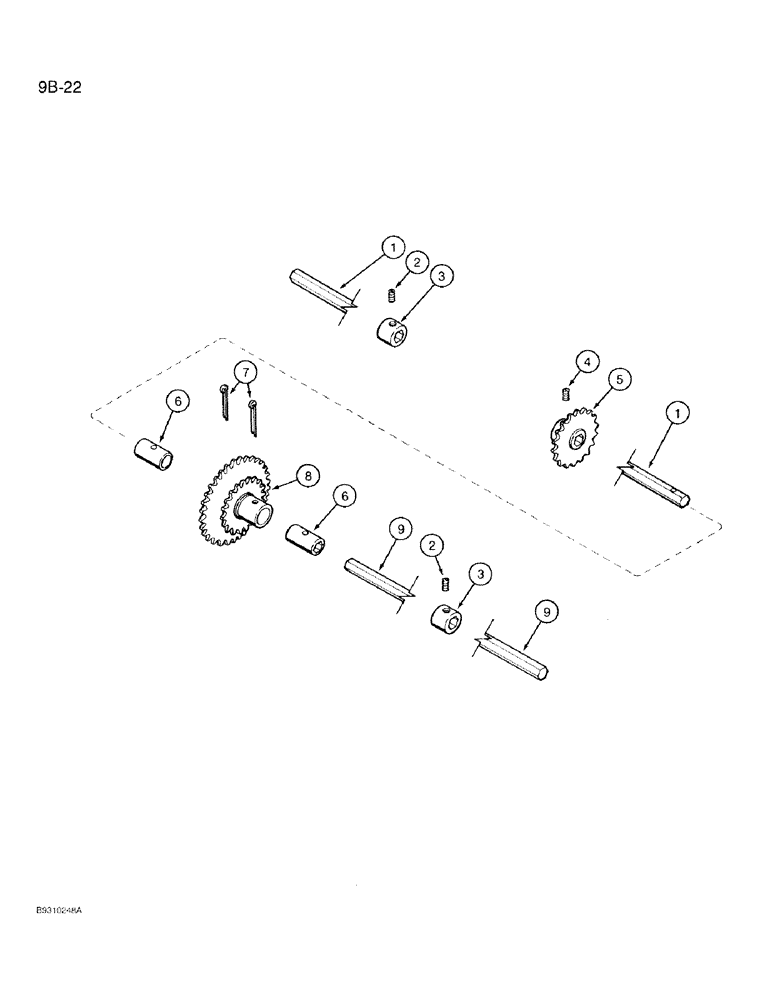

Запчасти Case IH 950 (9B-22) - SECONDARY SEED DRIVE, 8 ROW NARROW, RIGID (09) - CHASSIS/ATTACHMENTS

1

141657C1

SHAFT

BAR - drive left-hand, hex, 5/8 x 174-51/64 inch

1шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

2шт.

3

147338C1

SPACER

- collar, locking

2шт.

4

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point

1шт.

5

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 tooth

1шт.

6

137204C2

SPACER

BUSHING - shear pin

2шт.

7

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

8

90906C1

SPROCKET ASSY.

SPROCKET - final output, 20 and 34 tooth

1шт.

9

141452C1

BAR

- drive, right-hand, hex, 5/8 x 37-31/64 inch

1шт.
