(9B-20) - SECONDARY SEED DRIVE, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID

Запчасти Case IH 950 (9B-20) - SECONDARY SEED DRIVE, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID (09) - CHASSIS/ATTACHMENTS

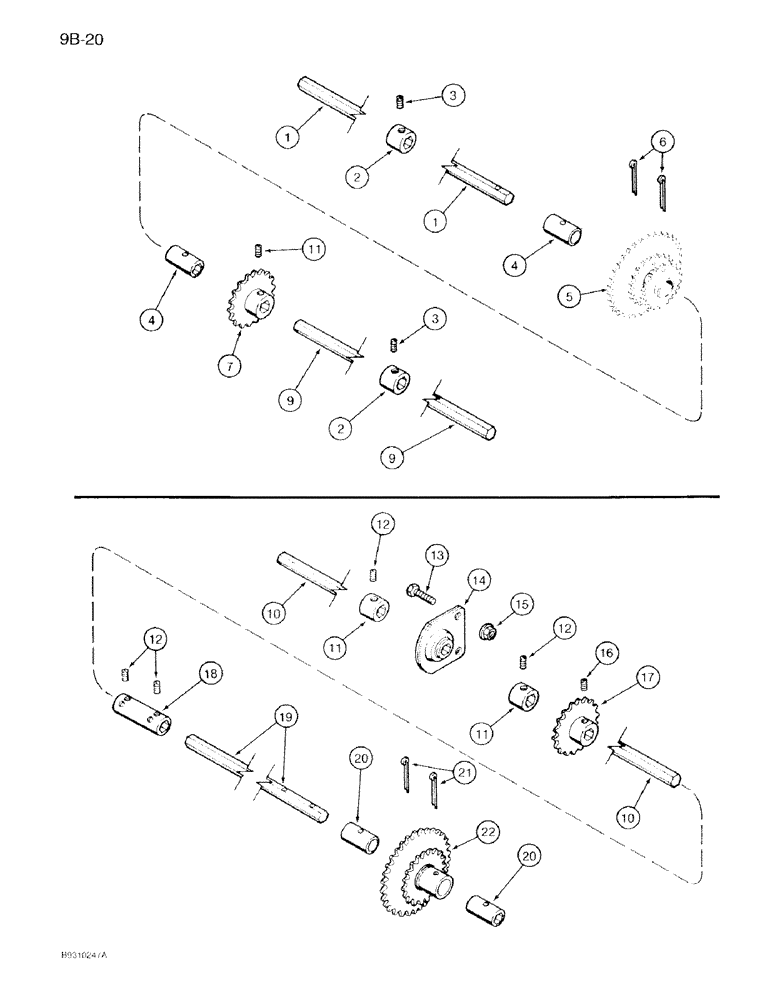

Схема запчастей Case IH 950 - (9B-20) - SECONDARY SEED DRIVE, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID (09) - CHASSIS/ATTACHMENTS
12
10
12
3
4
5
11
1
10
18
12
19
15
14
9
17
7
13
3
9
20
4
11
2
2
20
6
22
1
16
11
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1250826C1

BAR

- drive, right-hand, hex, 5/8 x 53-15/16 inch (4 row narrow and 4 row wide)(Shown)

1шт.

1

134151C1

BAR

- drive, left-hand, hex, 5/8 x 69-31/64 inch (4 row wide)

1шт.

1

1279459C1

BAR

- drive, left-hand, hex, 5/8 x 84-1/16 inch (6 row narrow)

1шт.

2

147338C1

SPACER

- collar, locking

2шт.

3

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

2шт.

4

137204C2

SPACER

BUSHING - shear pin

2шт.

5

1547034C2

SPROCKET ASSY.

SPROCKET - final output, 18, 20, and 34 tooth

1шт.

6

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

7

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 tooth

1шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point

1шт.

9

141452C1

BAR

- drive, right-hand, hex, 5/8 x 37-31/64 inch (4 row narrow)(Shown)

1шт.

9

1250826C1

BAR

- drive, right-hand, hex, 5/8 x 52-11/32 inch (4 row wide)

1шт.

9

134151C1

BAR

- drive, right-hand, hex, 5/8 x 69-31/64 inch (6 row narrow)

1шт.

10

137214C1

BAR

- drive, left-hand, hex, 5/8 x 132-11/32 inch, 6 row wide rigid

1шт.

11

147338C1

SPACER

- collar, locking, 6 row wide rigid

2шт.

12

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt, 6 row wide rigid

6шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, 6 row wide rigid

2шт.

14

141242C91

BEARING,16mm ID

- ball, hanger, 6 row wide rigid

1шт.

15

231-5146

FLANGE NUT,3/8"-16

6 row wide rigid Flg, USR, 3/8"-16

2шт.

16

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch, cup point, 6 row wide rigid

1шт.

17

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 tooth, 6 row wide rigid

1шт.

18

1254406C1

TRANSMISSION SLEEVE

COUPLER - drive shaft, 6 row wide rigid

1шт.

19

1254405C1

BAR

- drive, right-hand, hex, 5/8 x 84-31/64 inch, 6 row wide rigid

1шт.

20

137204C2

SPACER

BUSHING - shear pin, 6 row wide rigid

2шт.

21

432-1240

COTTER PIN,3/16" x 2 1/2"

6 row wide rigid 3/16" x 2 1/2"

2шт.

22

90906C2

DRIVE SPROCKET

SPROCKET - final output, 20 and 34 tooth, 6 row wide rigid

1шт.
