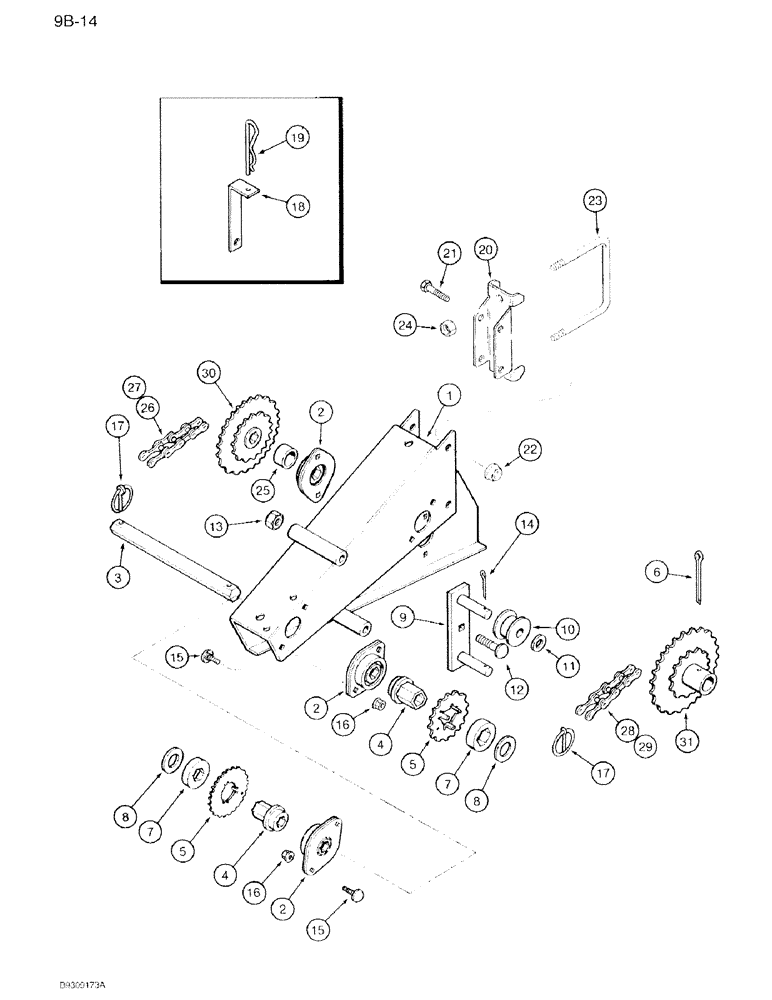

Запчасти Case IH 950 (9B-14) - SEED DRIVE SPEED CHANGE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

137203C4

SUPPORT

- speed change

1шт.

2

134158C91

FLANGED BEARING

- ball, 7/8 inch hex bore

4шт.

3

134142C1

BAR

SHAFT - drive, short, secondary

2шт.

4

140931C1

HUB

- sprocket

2шт.

5

90897C1

DRIVE SPROCKET

SPROCKET - hex bore, 20 tooth

1шт.

5

90898C1

DRIVE SPROCKET

SPROCKET - hex bore, 22 tooth

1шт.

5

90899C1

DRIVE SPROCKET

SPROCKET - hex bore, 24 tooth

1шт.

5

90900C1

DRIVE SPROCKET

SPROCKET - hex bore, 28 tooth

1шт.

5

90901C1

DRIVE SPROCKET

SPROCKET - hex bore, 30 tooth

1шт.

5

90902C1

DRIVE SPROCKET

SPROCKET - hex bore, 32 tooth

1шт.

5

90903C1

DRIVE SPROCKET

SPROCKET - hex bore, 34 tooth

1шт.

6

32-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

2шт.

7

140932C1

SPACER

- sprocket

2шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

9

96032C1

BAR ASSY.

SHAFT - chain speed change idler

2шт.

10

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

11

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

12

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

13

125-10010

NUT,1/2"-13, G5, LH

- hex, 1/2 inch NC, left-hand thread

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

4шт.

15

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

8шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

17

A30338

PIN

- self locking, 1/4 inch

2шт.

18

141781C1

BRACKET

- sprocket storage

1шт.

19

591107R1

COTTER PIN

- hair, 3/16 inch

1шт.

20

127584A1

BRACKET

- transmission support

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

23

1250813C1

U-BOLT

- 5/8 NC x 7 x 7 inch

1шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

1277812C1

SPACER

- drive shaft

1шт.

26

90916C1

CHAIN (AG)

CHAIN ASSEMBLY - input speed change, No. 40, use one 241-1314 connecting link, item 27, and 109 links from 1790D bulk chain, see below

1шт.

27

241-1314

CHAIN LINK

LINK - connecting, input speed change chain, No. 40

1шт.

28

90915C1

CHAIN (AG)

CHAIN ASSEMBLY - output speed change, No. 40, use one 241-1314 connecting link, item 29, and 87 links from 1790D bulk chain, see below

1шт.

29

241-1314

CHAIN LINK

LINK - connecting, output speed change chain, No. 40

1шт.

30

90907C1

DRIVE SPROCKET

SPROCKET - primary input, 20 and 32 tooth

1шт.

31

90906C2

DRIVE SPROCKET

SPROCKET - final output, 20 and 34 tooth

1шт.

1790D

CHAIN (AG)

CHAIN - No. 40, 10 ft roll

1шт.
