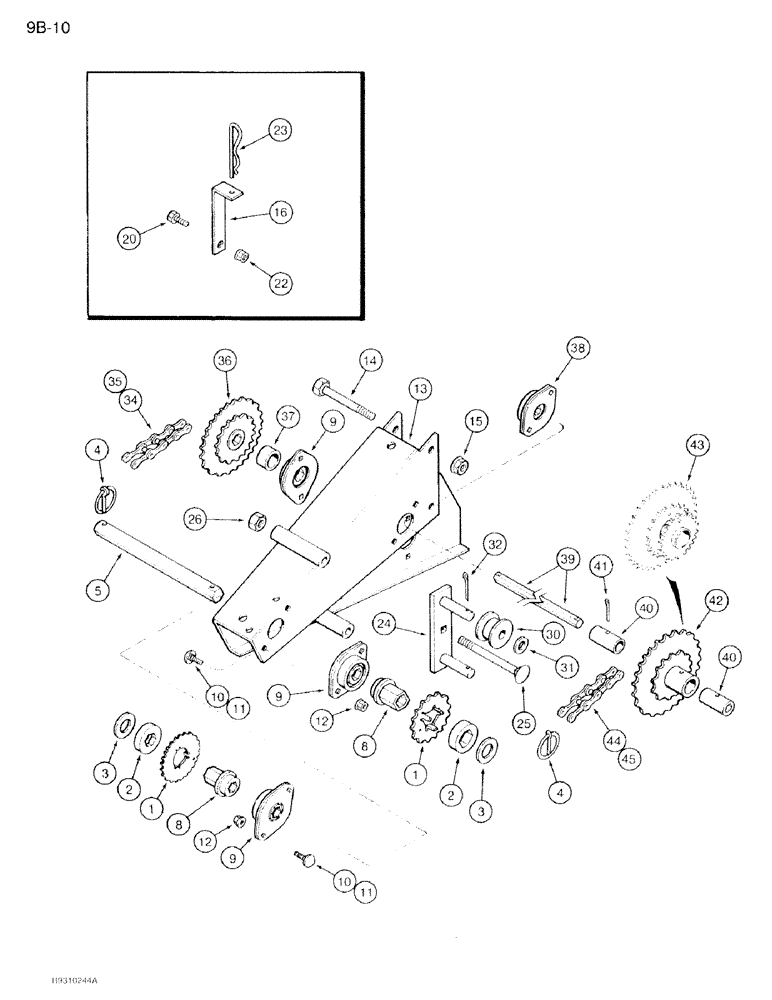

Запчасти Case IH 950 (9B-10) - SEED DRIVE SPEED CHANGE, 4, 6, AND 8 ROW NARROW, RIGID, 4 AND 6 ROW WIDE-RIGID (09) - CHASSIS/ATTACHMENTS

1

90897C1

DRIVE SPROCKET

SPROCKET - 20 tooth

1шт.

1

90898C1

DRIVE SPROCKET

SPROCKET - 22 tooth

1шт.

1

90899C1

DRIVE SPROCKET

SPROCKET - 24 tooth

1шт.

1

90900C1

DRIVE SPROCKET

SPROCKET - 28 tooth

1шт.

1

90901C1

DRIVE SPROCKET

SPROCKET - 30 tooth

1шт.

1

90902C1

DRIVE SPROCKET

SPROCKET - 32 tooth

1шт.

1

90903C1

DRIVE SPROCKET

SPROCKET - 34 tooth

1шт.

2

140932C2

SPACER

- sprocket

2шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

4

A30338

PIN

- snap lock, 1/4 inch diameter

2шт.

5

134142C1

BAR

- secondary drive

1шт.

8

140931C1

HUB

- sprocket

2шт.

9

134158C91

FLANGED BEARING

- ball, sealed, hex, 7/8 inch

3шт.

10

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch (Six (6) used on 4 row narrow, 6 row narrow, and 4 row wide) (Eight (8) used on 6 row wide and 8 row narrow)

6-8шт.

11

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch (4 row narrow, 6 row narrow, and 4 row wide)

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

8шт.

13

137203C4

SUPPORT

- speed change

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(4 row narrow, 6 row narrow, and 4 row wide) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

14

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch (6 row wide and 8 row narrow) (All except trailing 6 row narrow and 4 row)

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2-4шт.

16

141781C1

BRACKET

- sprocket storage

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (If equipped)

1шт.

22

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange, self-locking, 1/2 inch NC (If equipped)

1шт.

23

591107R1

COTTER PIN

- cotter, hair

1шт.

24

96032C1

BAR ASSY.

BAR - speed change idler

2шт.

25

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

26

125-10010

NUT,1/2"-13, G5, LH

- hex, 1/2 inch NC, left-hand thread

2шт.

30

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

31

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

32

432-1216

COTTER PIN,3/16" x 1"

4шт.

34

90916C1

CHAIN (AG)

CHAIN ASSEMBLY - input speed change, No. 40, use one 241-1314 connecting link, item 35, and 109 links from 1790D bulk chain, see below

1шт.

35

241-1314

CHAIN LINK

LINK - connecting, input speed change chain, No. 40

1шт.

36

90907C1

DRIVE SPROCKET

SPROCKET - primary input

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll (Use to make item 34)

1шт.

37

144812C2

SPACER

- double sprocket, 43/64 inch (6 row wide and 8 row narrow)

1шт.

37

90794C1

SPACER

- double sprocket, 1-39/64 inch (4 row narrow, 4 row wide and, 6 row narrow)

1шт.

38

134157C91

BALL BEARING,15.88mm ID

- ball, sealed, hex, 5/8 inch

1шт.

39

REF

INSTRUCTION

BAR - drive, hex, 5/8 inch (See secondary seed drives)

1шт.

40

137204C2

SPACER

BUSHING - shear pin

2шт.

41

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

42

90906C2

DRIVE SPROCKET

SPROCKET - final output, 20 and 34 tooth (6 row wide ans 8 row narrow)

1шт.

43

1547034C2

SPROCKET ASSY.

SPROCKET - final output, 20,34, and 18 tooth, (4 row narrow, 4 row wide, and 6 row narrow)(round hole)

1шт.

43a

177056A1

SPROCKET ASSY.

w/ hex hole, not shown

1шт.

44

90915C1

CHAIN (AG)

CHAIN ASSEMBLY - output speed change (Use 87 links from bulk chain 1790D, and 1 connecting link 241-1314)

1шт.

45

241-1314

CHAIN LINK

LINK - connecting, output speed change chain, No. 40

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll (Use to make Ref. 44)

1шт.
