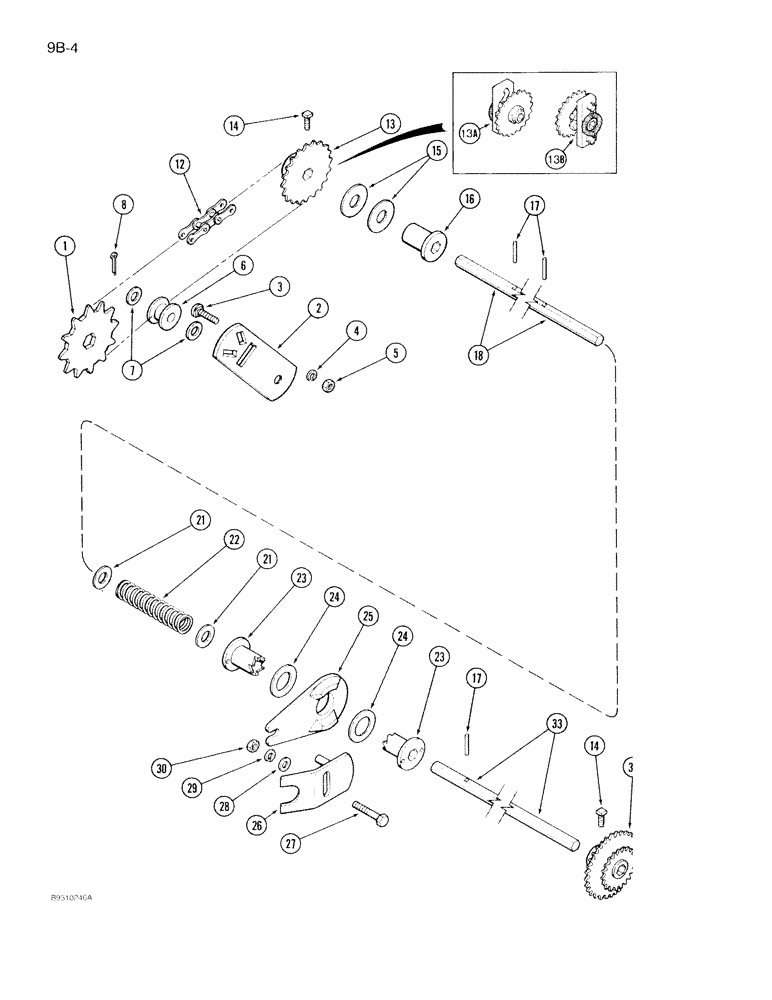

Запчасти Case IH 950 (9B-04) - PRIMARY SEED DRIVE, 8 ROW NARROW, RIGID, 6 ROW WIDE, RIGID (09) - CHASSIS/ATTACHMENTS

1

1277737C1

SPROCKET

- 12 tooth, wheel

2шт.

2

96140C2

LARGE PLATE

PLATE - drive wheel idler

1шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

7

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

8

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - wheel drive (Use 55 iinks from bulk chain 569089R91 and 1 connecting link 1277928C91)

2шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot roll

1шт.

12a

1277928C91

LINK

- chain, connecting (Not shown)

1шт.

13

1277743C1

DRIVING SPROCKET

SPROCKET - 23 tooth (8 row narrow)

2шт.

13a

1277925C91

RATCHET

SPROCKET ASSEMBLY - 23 tooth, left-hand drive ratchet (6 row wide) (Parts list page 9B-9)

1шт.

13b

1277926C91

PINION

SPROCKET ASSEMBLY - 23 tooth, right-hand drive ratchet (6 row wide) (Parts list page 9B-9)

1шт.

14

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch

6шт.

15

495-21106

WASHER,1"

- flat 1-1/16 x 2-1/2 x 9/64 inch (8 row narrow)

4шт.

16

90335C2

BUSHING

- drive shaft

2шт.

17

19795R1

PIN,1/4" x 1 3/4", Coiled

3-4шт.

18

90394C1

SHAFT

BAR - wheel seed drive, hex, 7/8 x 14-3/16 inch (8 row narrow)

2шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2-4шт.

22

1264302C1

SPRING

- clutch

1-2шт.

23

1264313C1

CLUTCH

- drive and driven, left-hand (6 row wide and 8 row narrow)

2шт.

23

1264314C1

CLUTCH

- drive and driven, right-hand (8 row narrow only)

2шт.

24

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

- flat 1-21/32 x 2-1/4 x 7/64 inch

2-4шт.

25

90344C1

PLATE

- clutch throwout

1-2шт.

26

91245C1

SUPPORT

THROWOUT - clutch

1-2шт.

27

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1-2шт.

28

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

1-2шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1-2шт.

30

425-1010

NUT,5/8"-11, G5

1-2шт.

33

90559C1

SHAFT

31-1/2" long

1шт.

34

90907C1

DRIVE SPROCKET

SPROCKET - speed change, 20 and 32 tooth

1шт.
