(4-10) - PLANTER CONTROL SYSTEM, 12, 16, AND 24 ROW NARROW, FRONT FOLD

Запчасти Case IH 950 (4-10) - PLANTER CONTROL SYSTEM, 12, 16, AND 24 ROW NARROW, FRONT FOLD (04) - ELECTRICAL SYSTEMS

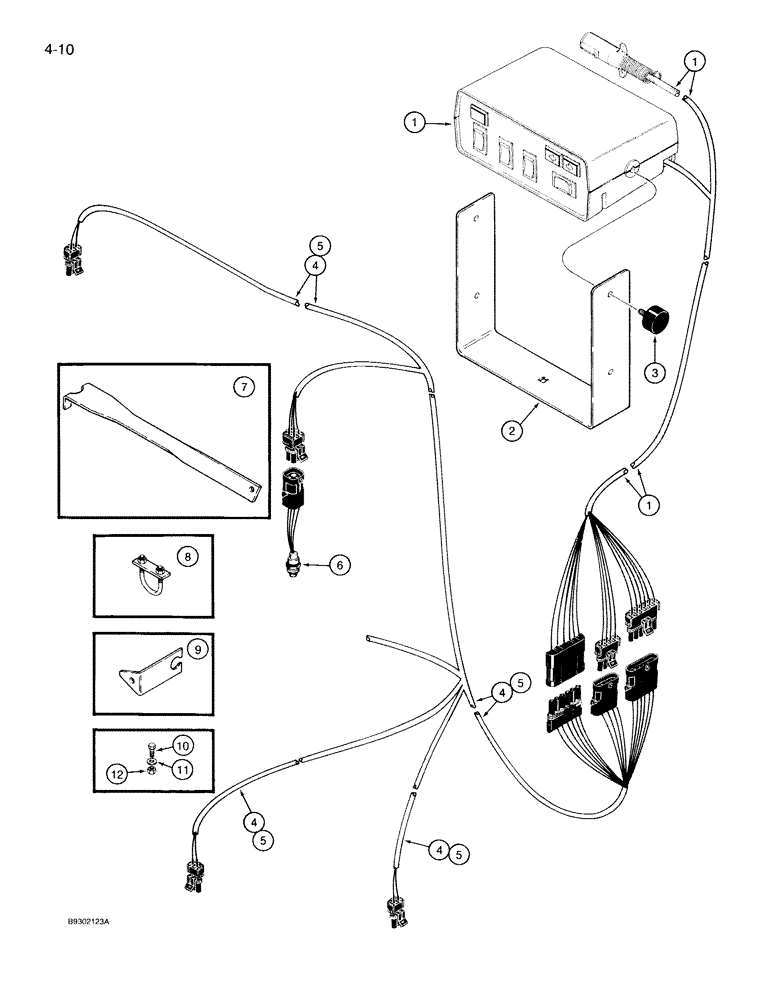

Схема запчастей Case IH 950 - (4-10) - PLANTER CONTROL SYSTEM, 12, 16, AND 24 ROW NARROW, FRONT FOLD (04) - ELECTRICAL SYSTEMS
1
4
5
7
4
4
2
9
4
10
1
11
3
1
8
5
6
5
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

115513A1

CONTROL

ASSEMBLY - planter (Parts list page 4-13)

1шт.

2

1267828C1

BRACKET

- support

1шт.

3

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

1шт.

4

115512A3

HARNESS

- planter, 12 and 16 row

1шт.

5

124085A1

HARNESS

- planter, 24 row

1шт.

6

117533A1

SWITCH

- marker alternating

1шт.

7

135243A1

BRACKET

- marker switch

1шт.

8

135245A1

U-BOLT,1/4" - 20 x 1" W x 1.75" L

ASSEMBLY

1шт.

9

135244A2

BRACKET

- mounting, marker switch ( replaced 135244A1 )

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

11

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- flat, 1/4 x 1/2 x 3/64 inch

1шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
