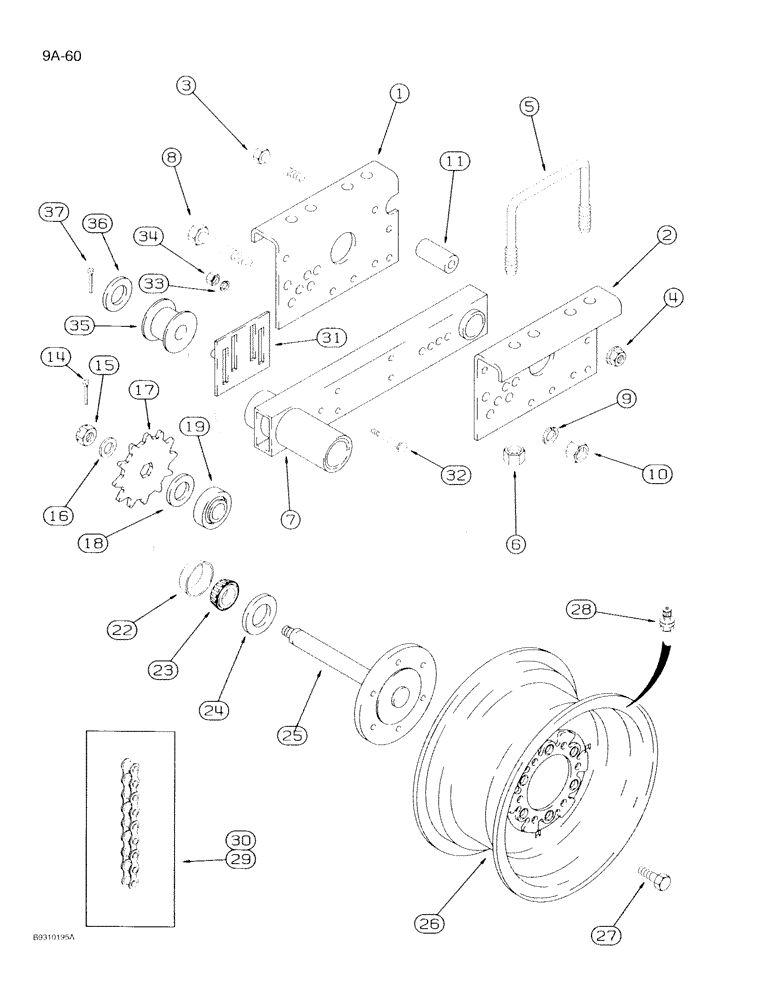

Запчасти Case IH 950 (9A-60) - DRIVE WHEEL, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

134125C4

SUPPORT

- drive wheel mount, left

1шт.

2

134126C4

SUPPORT

- drive wheel mount, right

1шт.

3

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

4

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex, flange lock, 1/2 inch NC

4шт.

5

1279517C1

U-BOLT,3/4" - 10 x 6.95" W x 8.19" L

- 3/4 inch NC

2шт.

6

425-1012

NUT,3/4"-10, G5

4шт.

7

1264320C3

TUBE,541 mm Length

- drive wheel

1шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

23885K

SPACER,3/4" Tube x 2 1/16"

- drive wheel support

4шт.

14

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

15

425-1212

SLOTTED NUT,3/4"-10, G5

NUT - hex slotted, 3/4 inch NC

1шт.

16

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

17

1277736C1

SPROCKET

- drive wheel, 12 tooth, rectangular hole

1шт.

17

1277737C1

SPROCKET

drive wheel, 12 tooth, hex hole

1шт.

18

134120C4

SPACER

- drive wheel

1шт.

19

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- roller drive wheel shaft, outer

1шт.

22

50213V

BEARING CUP

CUP - bearing, drive wheel, inner

1шт.

23

1264322C91

ROLLER BEARING

CONE - bearing, drive wheel, inner

1шт.

24

137231C1

SEAL

- drive wheel shaft

1шт.

25

134117C3

SHAFT

- drive wheel

1шт.

26

481344R91

WHEEL

- 14 inch (For 9.5L x 14 high flotation tire):1

1шт.

27

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

28

810768C1

VALVE

- wheel, steel

1шт.

29

1277739C91

CHAIN (AG)

CHAIN - drive wheel, use 45 links from 10 foot roll of 569089R91 bulk chain plus one 1277928C91 connecting link

1шт.

30

1277928C91

LINK

- chain connecting, straight

1шт.

31

1279011C2

LARGE PLATE

IDLER - drive chain

1шт.

32

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

36

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

37

432-1216

COTTER PIN,3/16" x 1"

1шт.
