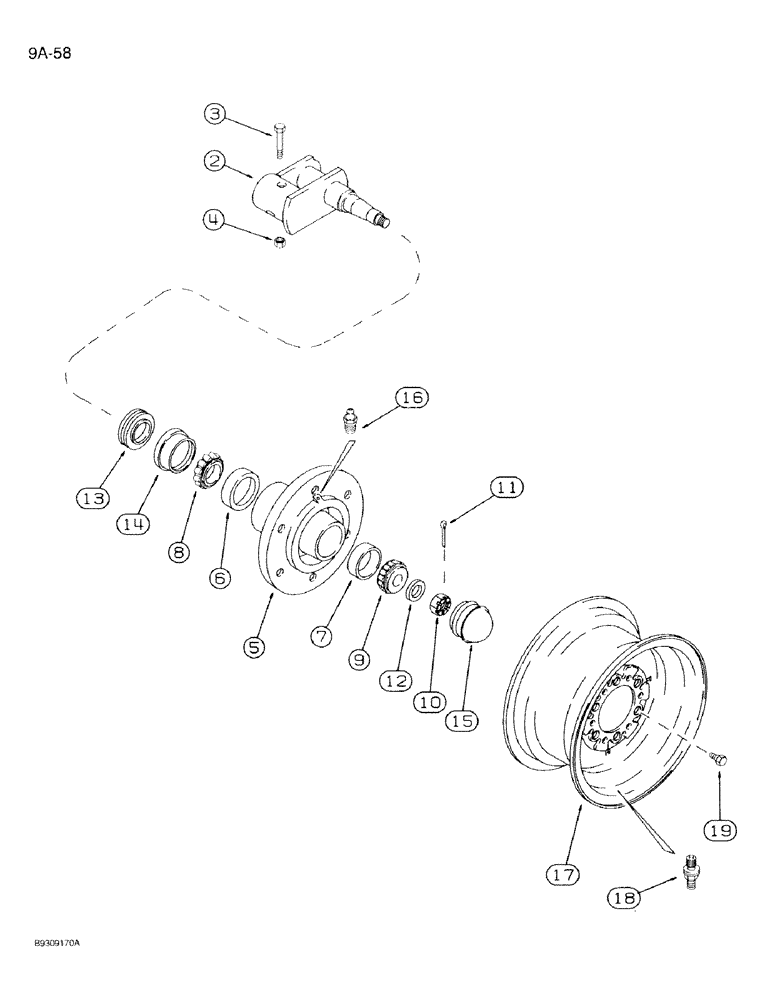

Запчасти Case IH 950 (9A-58) - FRONT CARRYING WHEELS, SPINDLE, HUB, AND WHEEL MOUNTING, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

97550C2

HALF SHAFT

SPINDLE - outboard, left-hand, not shown

1шт.

2

97551C2

SPINDLE

- outboard, right-hand

1шт.

3

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

1шт.

4

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

606468R21

HUB

ASSEMBLY - wheel

1шт.

5

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

6

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

7

651817R1

BEARING CUP

CUP - outer bearing

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - tapered roller, inner

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, outer

1шт.

10

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NF

1шт.

11

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

12

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, hardened

1шт.

606556R91

OIL SEAL

SEAL ASSEMBLY - wheel hub oil

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - wheel hub

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

15

663906R1

CAP

- wheel hub

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

17

A57879

RIM

WHEEL - 15 x 8 inch (For 11L x 15 6PR tubeless tire)

1шт.

18

810769C1

VALVE

- tubeless tire inflation, steel

1шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.
