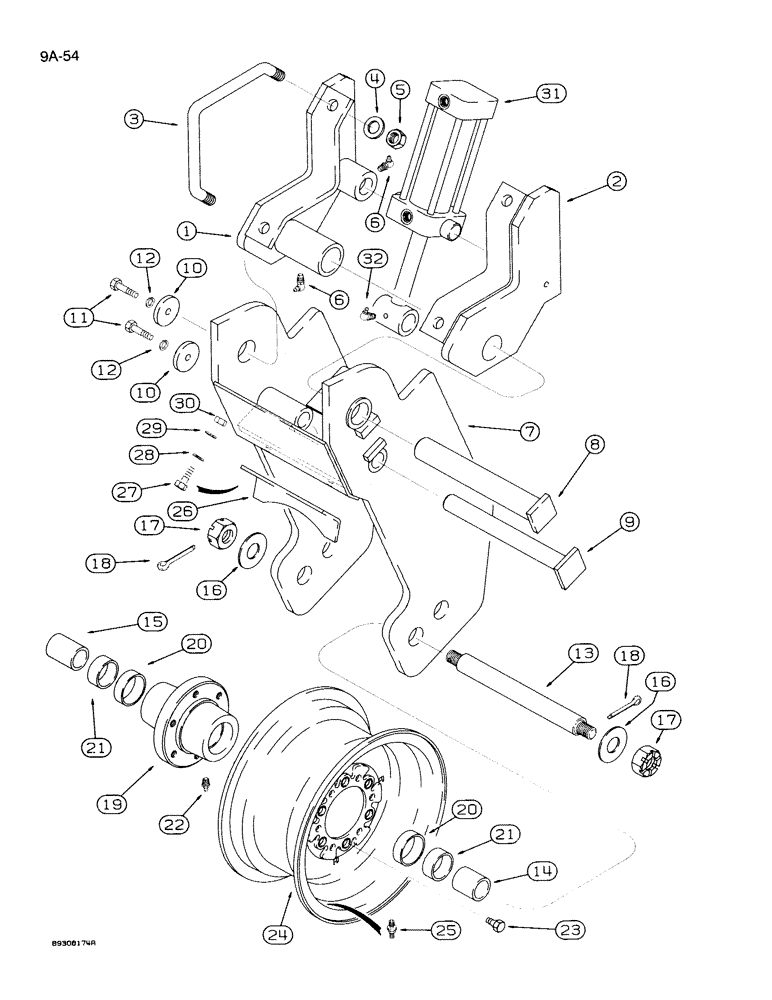

Запчасти Case IH 950 (9A-54) - CARRYING WHEELS, 12, 16, AND 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

116075A1

MOUNTING PARTS

BRACKET - wheel and cylinder mounting, left-hand

1шт.

2

116076A1

MOUNTING PARTS

BRACKET - wheel and cylinder mounting, right-hand

1шт.

Per print 116076A1 is the left hand bracket and the 116075A1 is the right hand bracket.

1шт.

3

116039A1

WHEEL BOLT

BOLT - wheel bracket

2шт.

4

495-21094

WASHER,7/8"

- flat, 15/16 x 2-1/4 x 11/64

4шт.

5

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

6

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

7

116073A1

MOUNTING PARTS

MOUNT - wheel

1шт.

RE IT NO. 7: 116073A1 is for 1994 production only. For 1995 production units, order 182914A1. 116073A1 measures id 11-1/2", 182914A1 measures 12-1/2".

1шт.

8

116040A1

PIN

- wheel mount

1шт.

9

116041A1

PIN

- wheel cylinder mounting

1шт.

10

116051A1

WASHER

- latch and wheel pivot pin

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

116038A1

AXLE

- wheel

1шт.

RE IT NO. 13: 116038A1 is for 1994 production only. For 1995 production units, order 182912A2.

1шт.

14

116036A1

SPACER

- short, wheel axle

1шт.

RE IT NO. 14: 116036A1 is for 1994 production only. See Alan J. book for other changes.

1шт.

15

116037A1

SPACER

- long, wheel axle

1шт.

16

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

2шт.

17

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

19

118860A1

HUB

- wheel

1шт.

20

453012R1

BEARING CUP

CUP - bearing

2шт.

21

F86364

BEARING CONE

CONE - bearing

2шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

23

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - hex, special

6шт.

24

A57879

RIM

WHEEL - 15 x 8 inch (Use with 11L-15 10 PR tire)

1шт.

25

810769C1

VALVE

- tubeless tire, steel

1шт.

26

116042A1

SCRAPER

- tire

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 3-1/4 ID x 6-1/4 inch stroke, carrying wheel (Parts list page 8-87)

1шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Cylinder 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.
