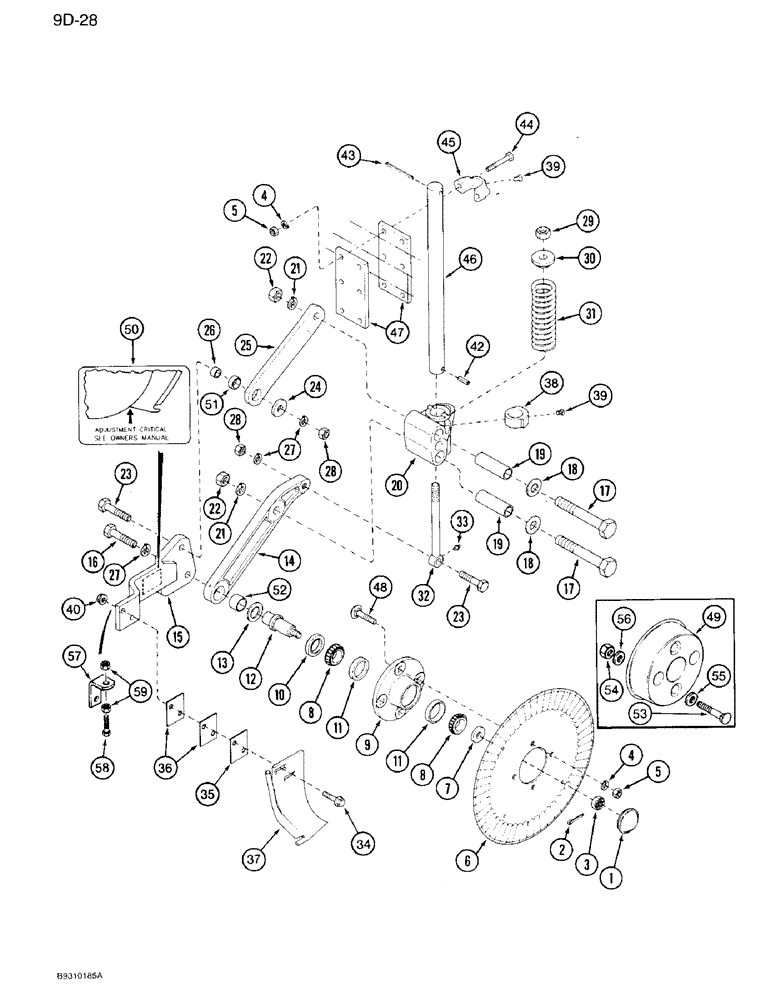

Запчасти Case IH 950 (9D-28) - LIQUID FERTILIZER APPLICATOR, MIN-TIL OPENER, 8 ROW NARROW, (09) - CHASSIS/ATTACHMENTS

1

1344515C1

CAP

- hub

1шт.

2

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

3

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

1344516C1

PLOW DISC

COULTER - ripple, 17 inch

1шт.

7

1344527C1

WASHER

- flat, 11/16 x 1-3/4 x 1/4 inch

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

2шт.

9

1344512C1

HUB

- coulter

1шт.

10

652769R91

OIL SEAL

- oil

1шт.

11

651817R1

BEARING CUP

CUP - bearing

2шт.

12

1986480C1

SPINDLE

- coulter

1шт.

13

1986481C1

WASHER

BUSHING - 1-1/4 x 2-1/4 x 9/64 inch

1шт.

14

1986482C1

ARM ASSY.

ARM - lower parallel

1шт.

15

1986483C1

ARM

- fertilizer knife, right-hand (Shown)

1шт.

15

1986484C1

ARM

- fertilizer knife, left-hand

1шт.

16

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- hex, 5/8 NF x 2-1/2 inch

1шт.

17

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

2шт.

18

495-81046

WASHER,25/32" x 2" x .120"

- flat, 25/32 x 2 x 1/8 inch

2шт.

19

1986486C1

SLEEVE

- pivot

2шт.

20

1986487C1

PIVOT

CASTING - pivot, right-hand (Shown)

1шт.

20

1986488C1

PIVOT

CASTING - pivot, left-hand

1шт.

21

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

22

425-1012

NUT,3/4"-10, G5

2шт.

23

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

24

1986489C1

SPACER

WASHER - flat, 21/32 x 2-1/4 x 9/64 inch

1шт.

25

1986490C1

ARM ASSY.

ARM - upper parallel

1шт.

26

1986491C1

BUSHING

- arm

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

28

425-1010

NUT,5/8"-11, G5

2шт.

29

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.

30

1986492C1

BUSHING

- spring

1шт.

31

1986493C1

SPRING

- 7/16 x 2-1/2 inch OD

1шт.

32

116942A1

ROD

- pressure assembly

1шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

5шт.

34

204813C1

BOLT,Hex Serr Flg, 1/2" - 13 x 2"

- hex flanged, 1/2 NC x 2 inch

2шт.

35

1344518C1

SHIM

- knife, 1/8 inch

1шт.

36

1344519C1

SHIM

- knife, 1/16 inch

3шт.

37

1344517C1

KNIFE

- liquid fertilizer

1шт.

38

1986495C1

COLLAR

- locking

1шт.

39

85-16216

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW - set, 5/8 NC x 1 inch cup point

3шт.

40

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

42

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

43

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

44

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch (If equipped)

4шт.

44

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch (If equipped)

4шт.

45

1344520C1

SPECIAL CLAMP

- casting

2шт.

46

1344510C1

SHANK

- straight coulter (22 inch)

1шт.

47

1986499C1

PLATE

- clamp

2шт.

48

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

50

1986496C1

DECAL

- critical adjustment (Min-Til fertilizer opener)

1шт.

51

1986497C1

BUSHING,25.4mm ID x 31.8mm OD x 12.7mm L

1 1/4 X 1 X 1/2 BRONZE

1шт.

52

1986498C1

BUSHING

- 1 x 1-1/4 x 1/2 inch

1шт.

53

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

2шт.

54

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

55

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

56

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

2шт.

57

103413A1

LOCK

- knife

1шт.

58

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

59

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.
