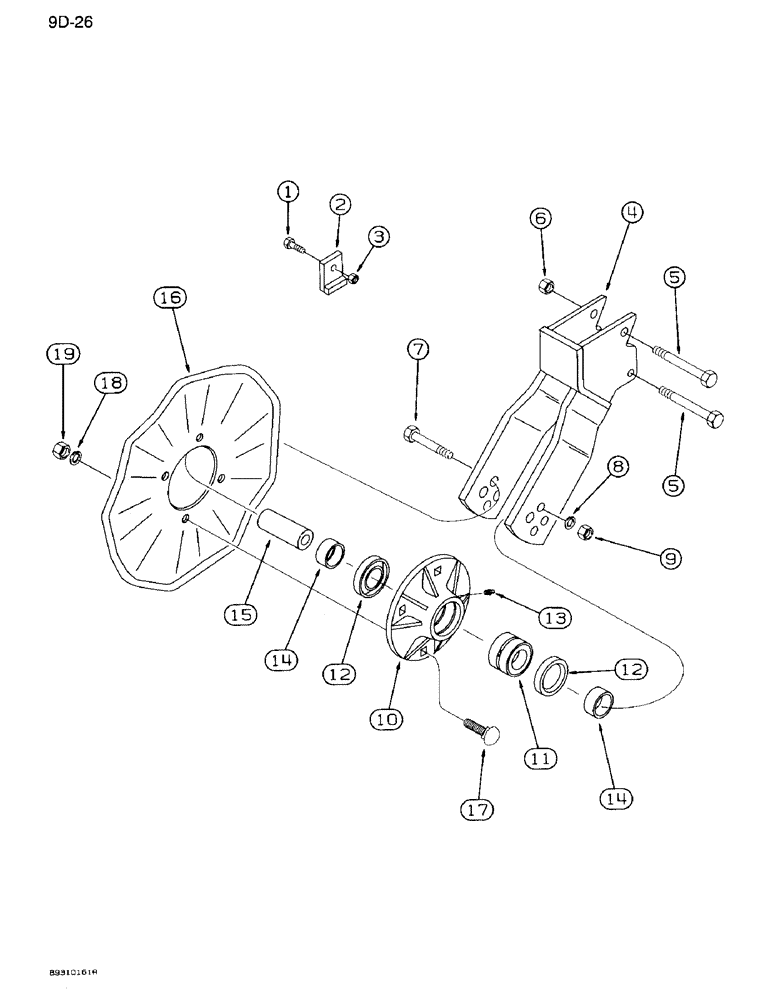

Запчасти Case IH 950 (9D-26) - ROW MOUNTED COLTER (09) - CHASSIS/ATTACHMENTS

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

2

129621A1

STOP

- colter

2шт.

3

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

4

129620A1

BRACKET

- mounting, colter

1шт.

5

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, plated

2шт.

6

231-4148

NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch

2шт.

7

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

130799A1

HUB ASSY.

COLTER ASSEMBLY - wavy

1шт.

10

129627A1

HUB

- colter

1шт.

11

131439A1

BEARING SET,1.25" ID x 2.329" OD x 1.436"

BEARING - colter

1шт.

12

652769R91

OIL SEAL

- colter hub

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

14

129625A1

SPACER

- spindle

2шт.

15

129623A1

SPACER

- spindle, long

1шт.

16

130800A1

BLADE

- colter, wavy

1шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

129618A1

DECAL

- row mounted coulter bearing, not shown

1шт.
