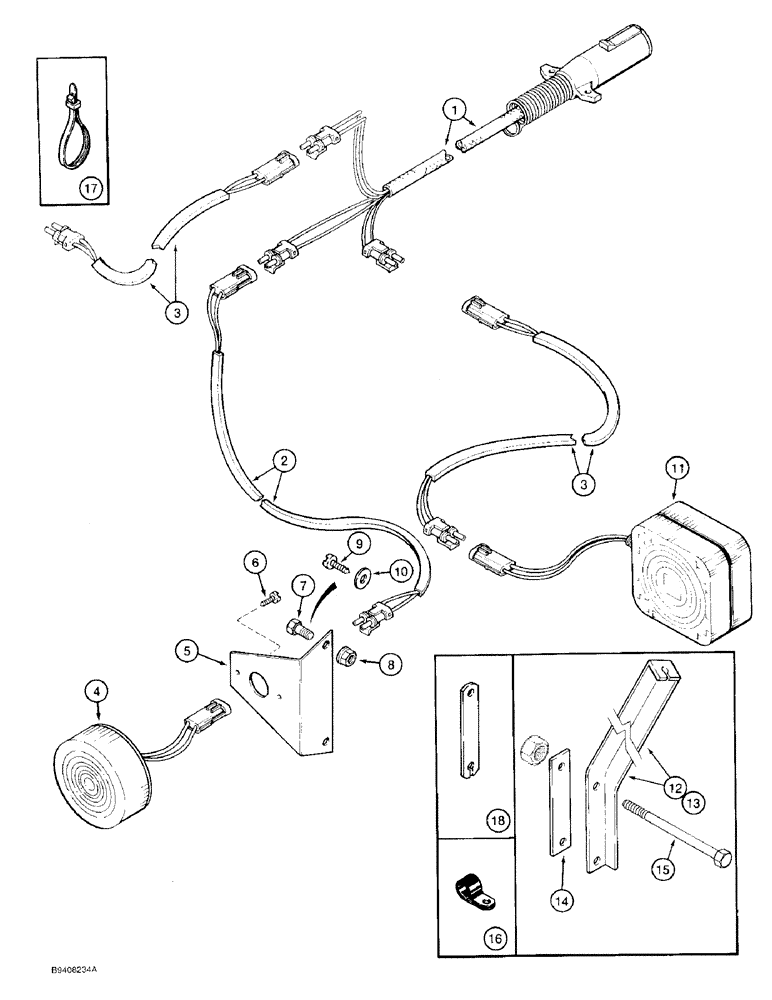

Запчасти Case IH 950 (4-06) - LIGHTING SYSTEM, 6 ROW AND 8 ROW NARROW, 11 ROW AND 15 ROW SOLID CROP (04) - ELECTRICAL SYSTEMS

1

92091C2

HARNESS

- main

1шт.

2

92095C1

HARNESS

- tail lamp, 6 row and 8 row narrow only

1шт.

3

92096C1

CABLE ASSY.

HARNESS - warning lamps, 118-1/8 inch (3000 mm) long, 6 row and 8 row narrow

2шт.

3

92097C1

HARNESS

- warning lamps, 158-1/4 inch (4020 mm) long 11 and 15 row solid row crop

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-11

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, For 11 and 15 row solid row crop mounting

2шт.

8

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

9

276-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW - self-tapping, hex head, 5/16 NC x 5/8 inch, for module mounting

2шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

11

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal, parts list page 4-11

2шт.

12

1333937C2

ANGLE

BRACKET - lamp support, right-hand, 6 row and 8 row narrow

1шт.

13

1333936C2

ANGLE

BRACKET - lamp support, left-hand, 6 row and 8 row narrow

1шт.

14

1333940C1

BAR

- lamp support, 6 row and 8 row narrow

2шт.

15

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch, 6 row and 8 row narrow

4шт.

16

384557R1

CLIP

- harness retaining, 6 row and 8 row narrow

2шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - retaining, 28-1/4 inch

6шт.

18

177118A1

BRACKET

- warning lamp mounting, 11 and 15 row solid row crop

2шт.
